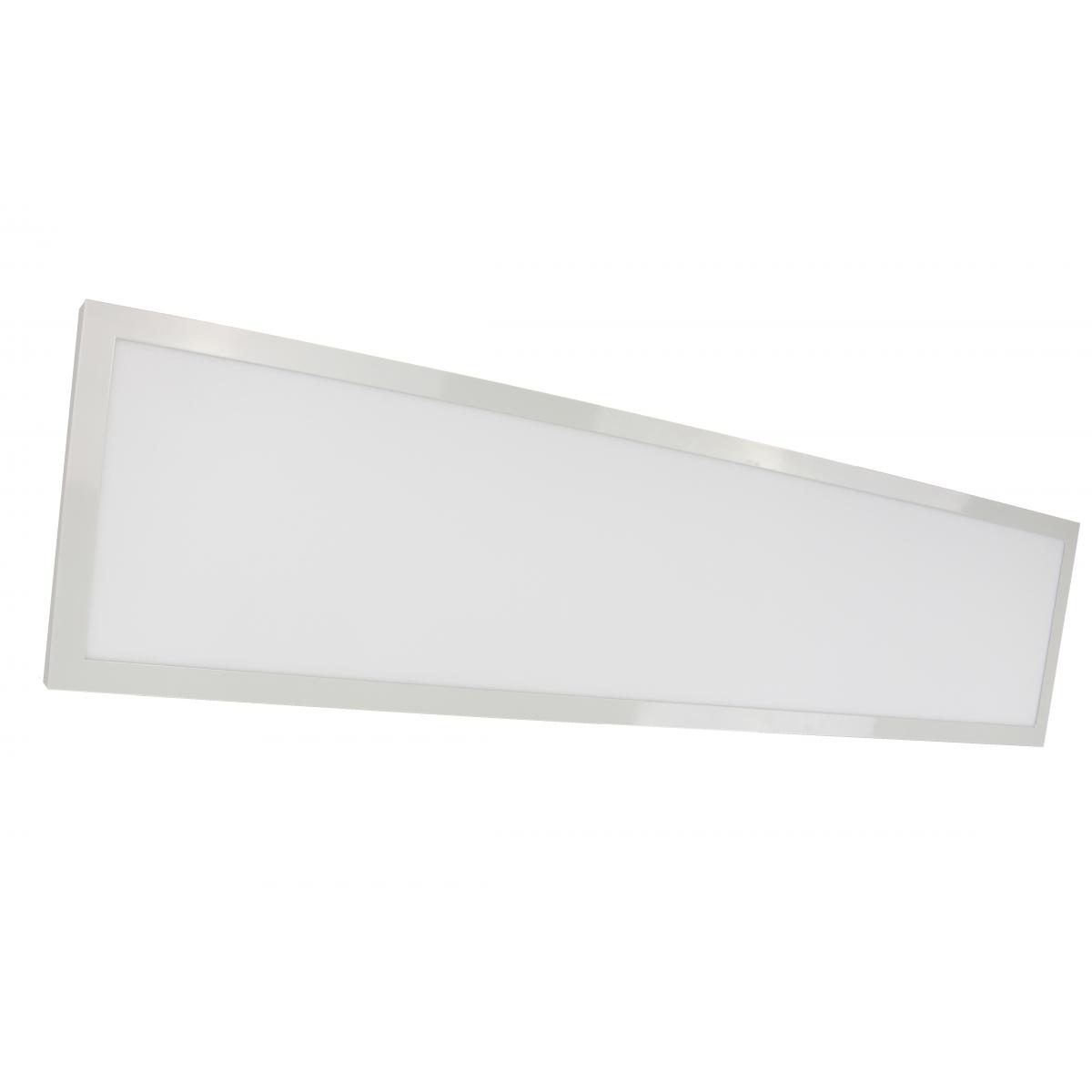

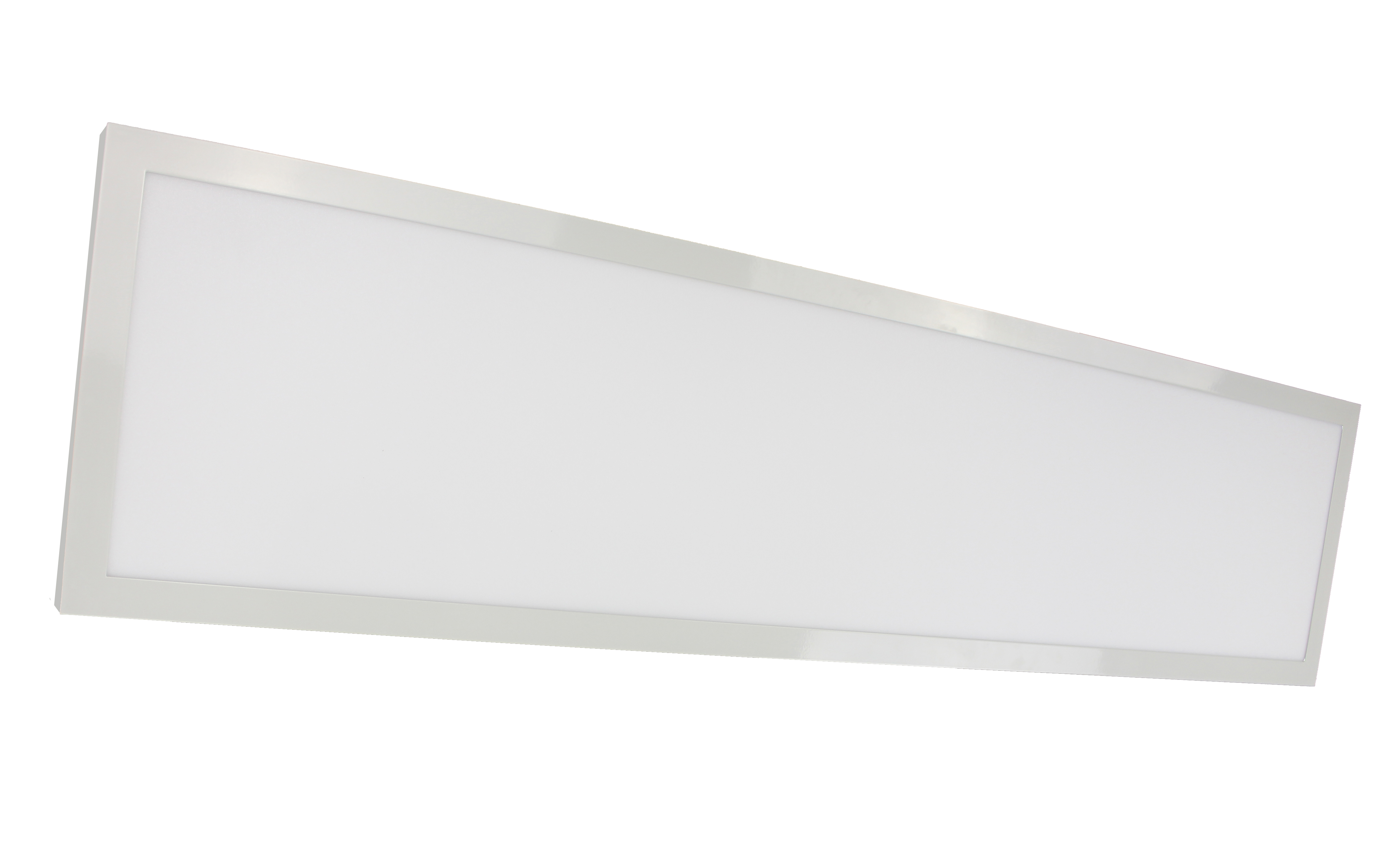

1FT X 4FT LED FLAT PANEL 37W - 65-314
1FT X 4FT LED FLAT PANEL 37W - 65-314
65-314

1FT X 4FT LED FLAT PANEL 37W

Discontinued - Suggested Replacement: 65-339R1
  • LED Flat Panel Fixture
  • 37W
  • 1 ft. x 4 ft.
  • 3500K
  • 3800 Lumens
  • 100-277V
location_rating^damp^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
65-314 Specifications65-314 Installation Instructions EnSpFr.pdf
Tools
Lighting Layout Analysis For 65-314
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Flat Panel Fixture; 37W; 1 ft. x 4 ft.; 3500K; 3800 Lumens; 100-277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming
MaterialAluminum / Polycarbonate (PC)
Fixture TypeFlat Panel
StatusDiscontinued
StyleUtility
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.370-0.134A
Has CameraNo
IOT EnabledNo
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent175W
Electrical
CCT (Kelvin Temp)3500K
DimmableYes-Dimmable
Hours Rated50000
Color TempNeutral White
CRI90+
Dimming Type0-10V Dimming
Operating Temp-20C (-4F) to +40C (+104F)
Lumens3800L
Volts120V-277V
Watts37W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IC RatedYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923643149
Case Cube3.0476
Case Height7.09
Case Length50.98
Case Quantity2
Case UPC10045923643146
Case Weight22.49
Case Width14.57
EA Cube1.1885
EA Height2.95
EA Length49.8
EA Quantity1
EA Weight10.14
EA Width13.98
Pack TypeBox
Web Height1.81
Web Length11.81
Web Width47.5
