65-661

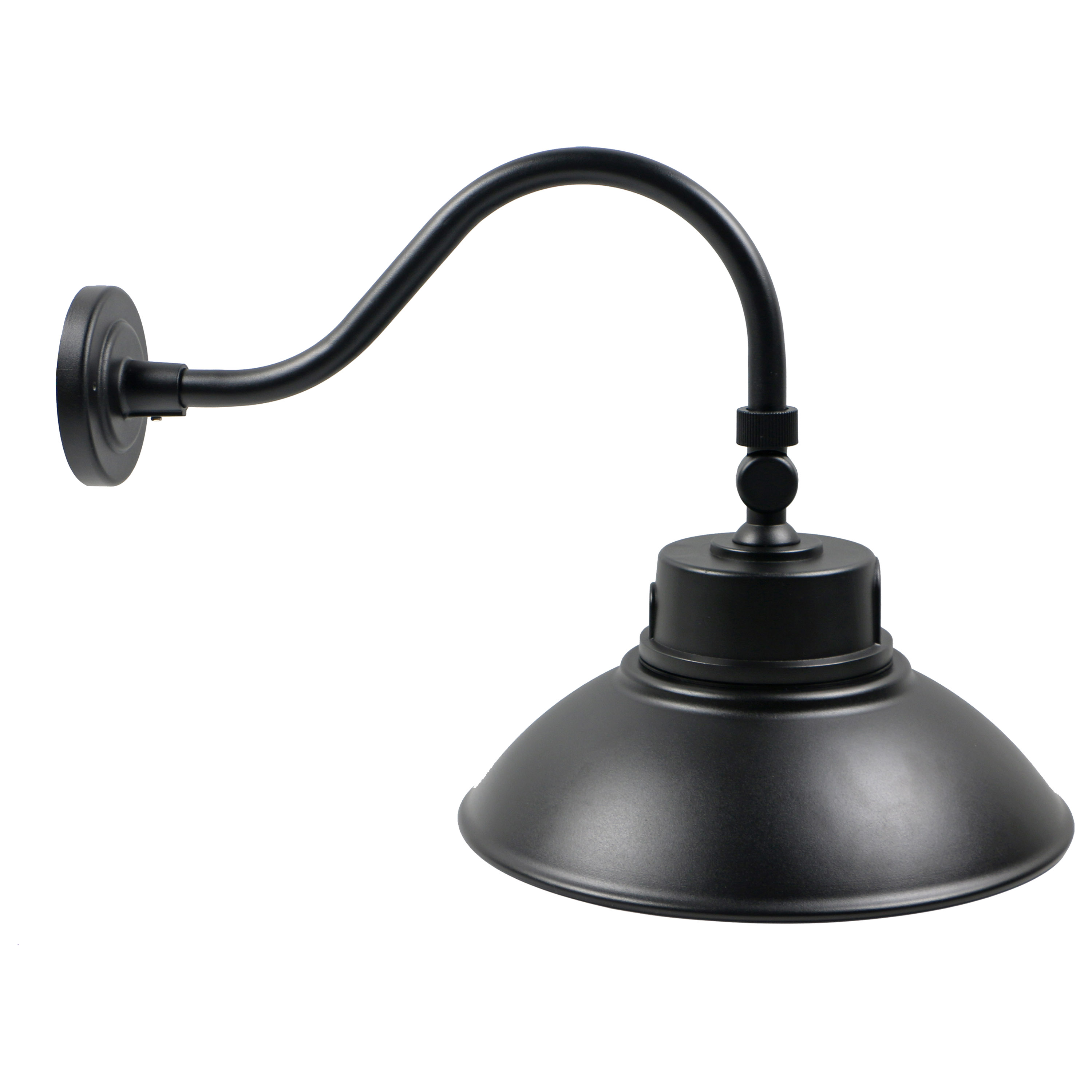

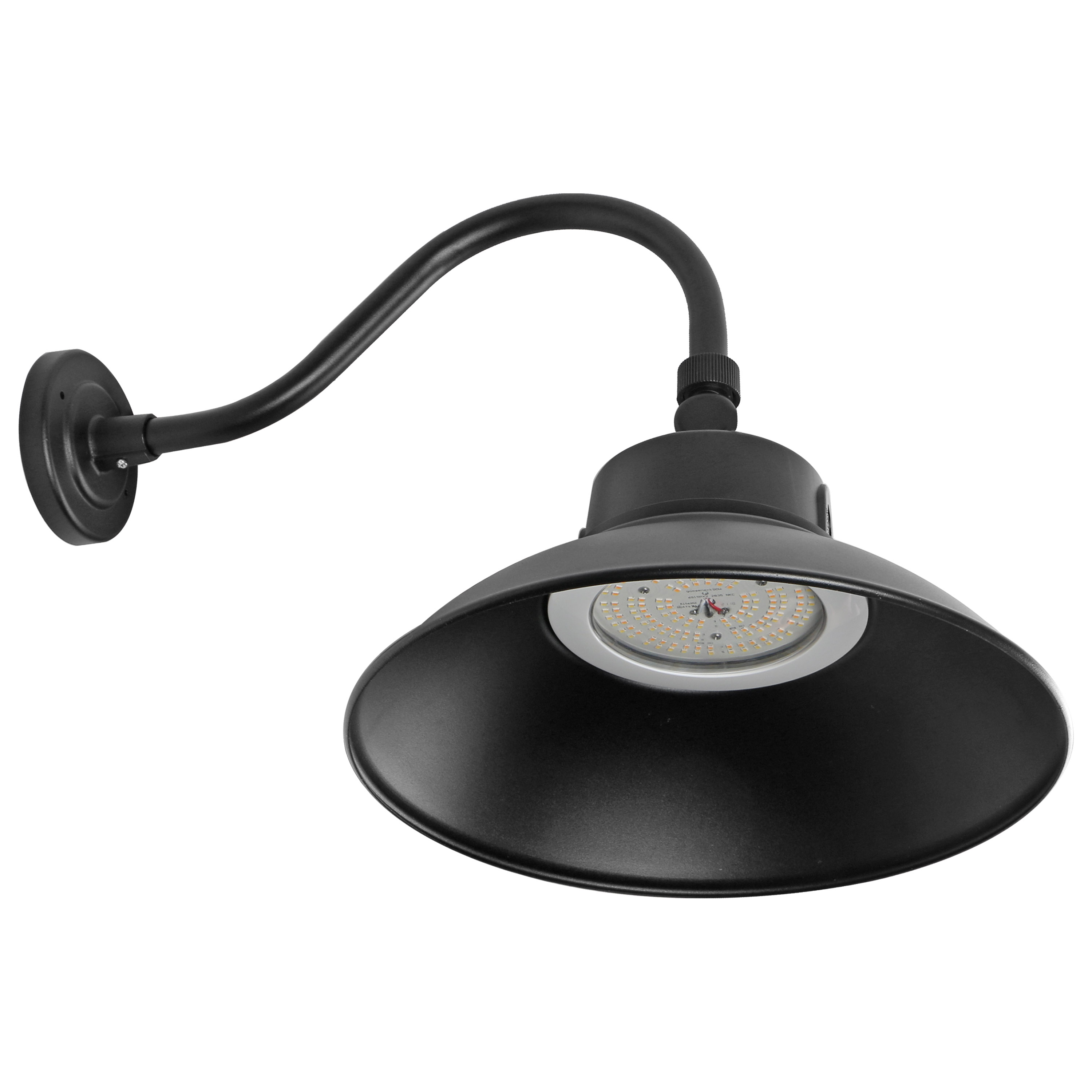

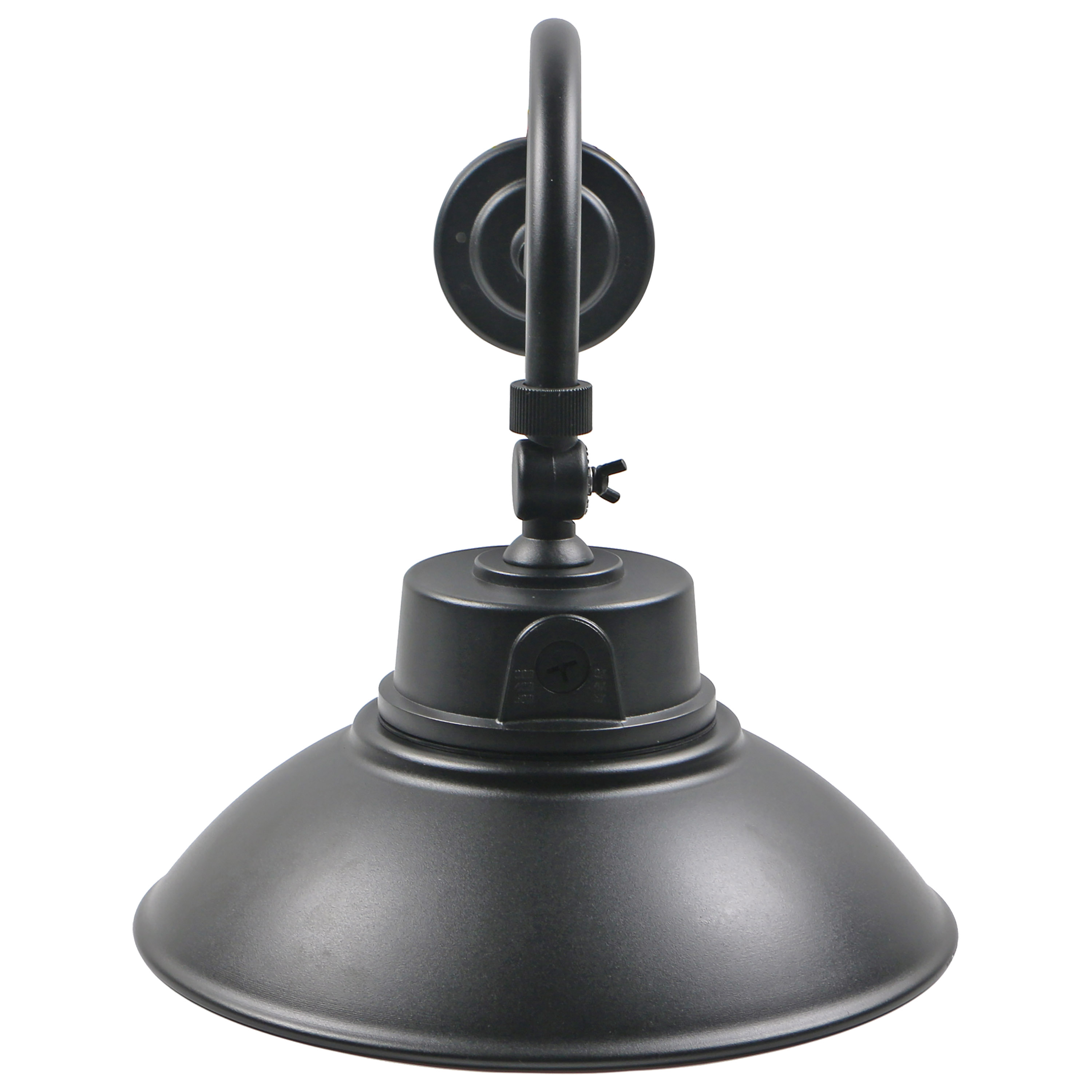

LED GOOSENECK BLACK FINISH

  • LED Gooseneck
  • 30W/40W/50W
  • CCT Selectable 3K/4K/5K
  • Black
  • 120-277V
  • With Photocell
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^culus_list^3
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
65-661 Specifications65-661 Photometrics 30W 5000K.ies65-661 Photometrics 40W 5000K.ies
Tools
Lighting Layout Analysis For 65-661
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Gooseneck; 30W/40W/50W; CCT Selectable 3K/4K/5K; Black; 120-277V; With Photocell
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated

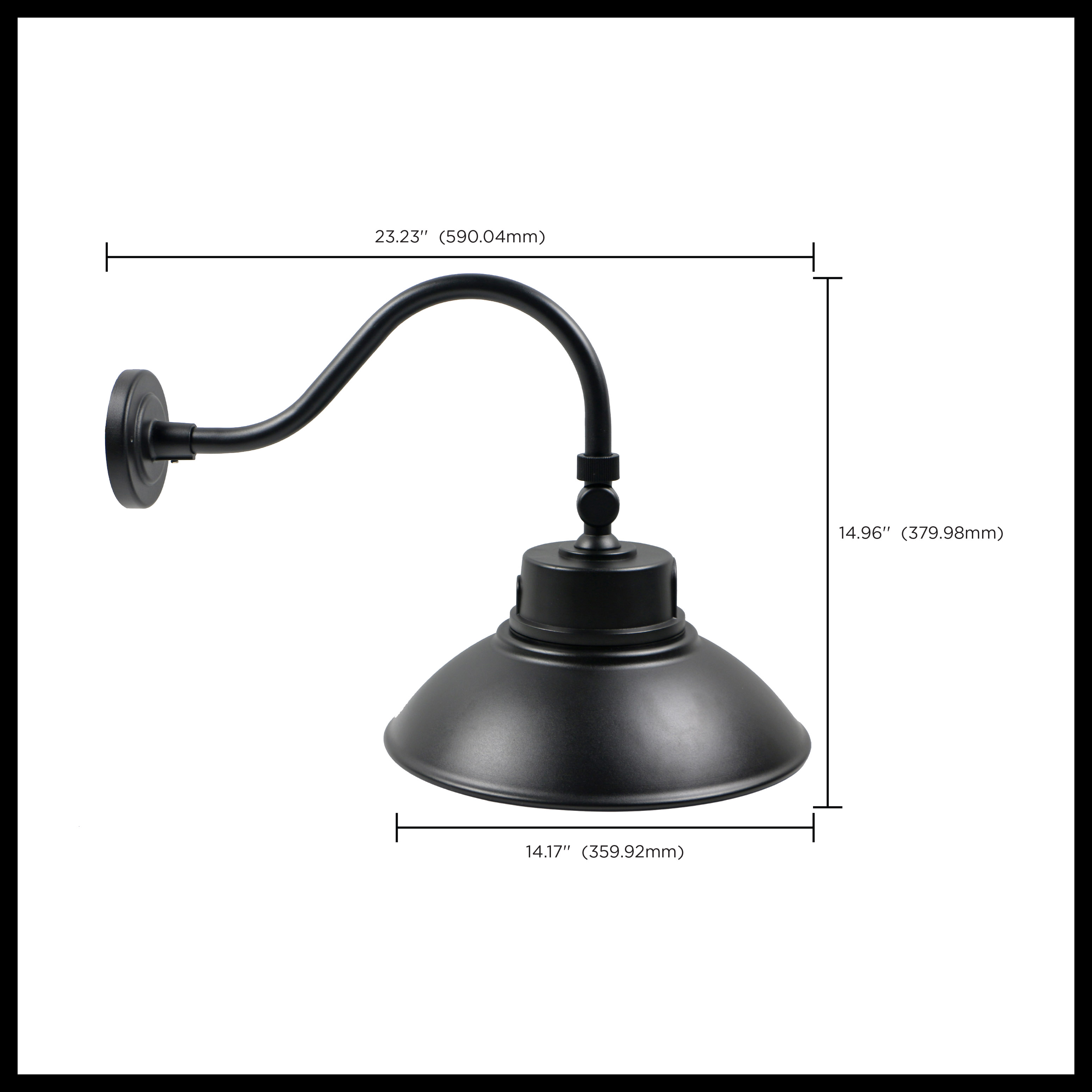

Diameter14.17
Dimmable Text0-10V Dimming
Extends (in)23.23
MaterialDie-cast Aluminum
Fixture TypeGooseneck
Includes16 Inch Mounting Arm
StatusActive
StyleTraditional
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion5.20%

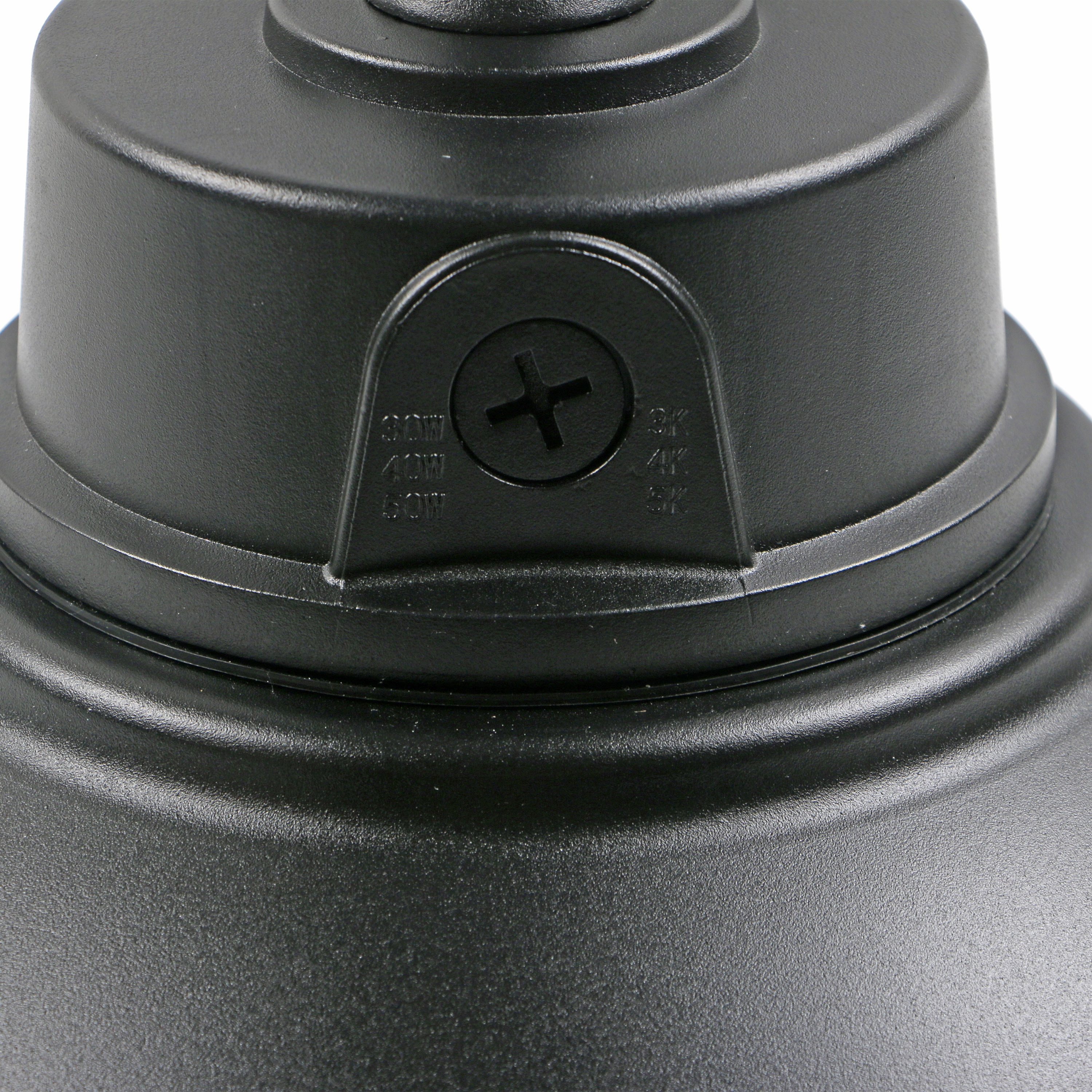

CCT SelectableYes
Wattage SelectableYes
Finish FamilyBlack
Additional InfoUV Powder Coated Finish
Amps0.250-0.108/0.333-0.144/0.417-0.181A
Mounting Diameter4.65
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)

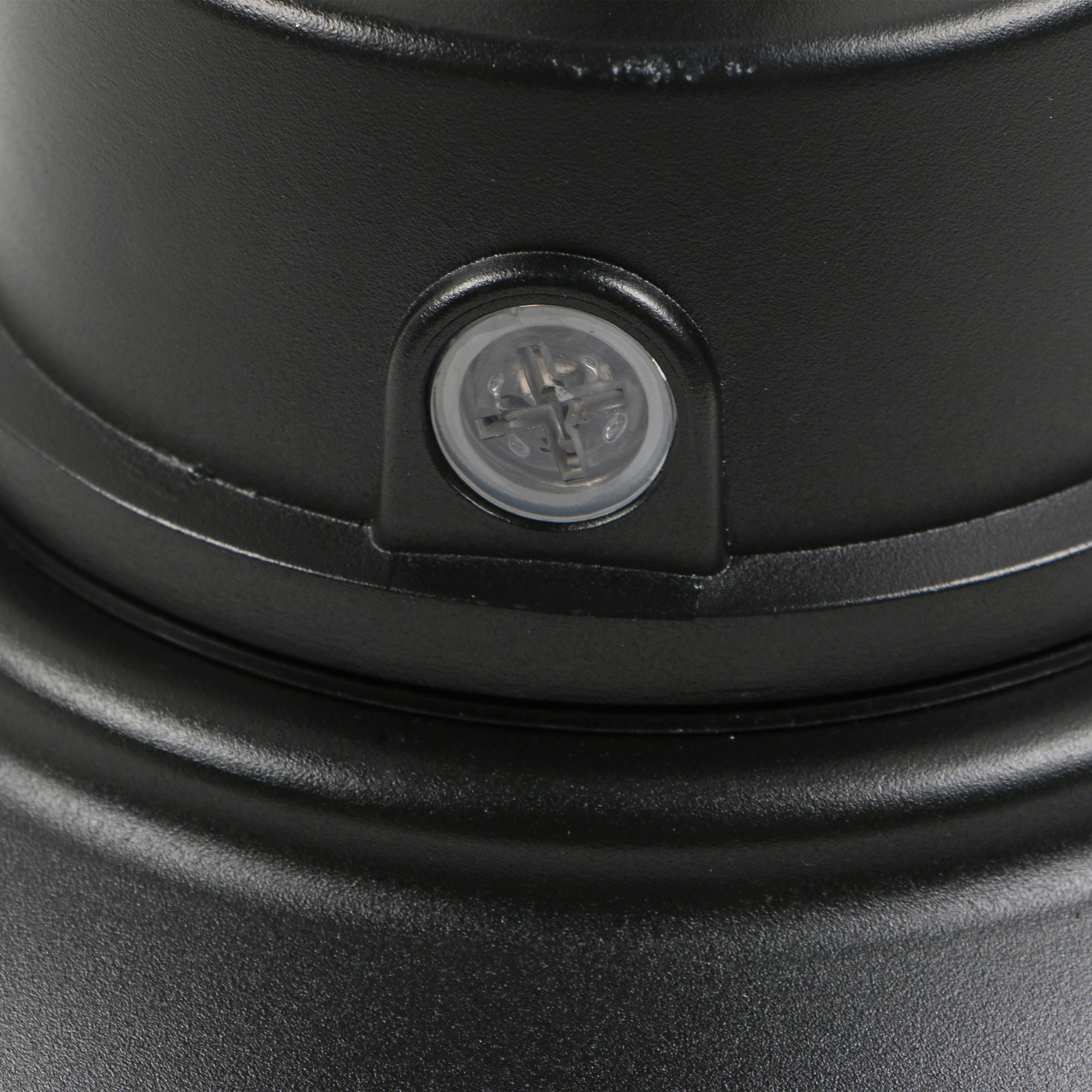

Photo CellHas Photocell
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent250W/300W/400W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)100
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +50C (+122F)
Lumens3300L-5500L
Volts120V-277V
Watts30W/40W/50W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
ADA CompliantNo
Bug RatingB2-U2-G0
CA Prop 65Lead
DLC IDS-85IVYA
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus - Listed, cULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923656613
Case Cube1.9018
Case Height10.04
Case Length20.28
Case Quantity1
Case UPC10045923656610
Case Weight5.1
Case Width16.14
EA Cube1.9018
EA Height10.04
EA Length20.28
EA Quantity1
EA Weight5.1
EA Width16.14
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height14.96
Web Width14.17
