| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming; Bi-Level Dimmable |
| Material | Steel |
| Fixture Type | Strip Light |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2KV |
| Total Harmonic Distortion | 12.10% |
| CCT Selectable | True |
| Wattage Selectable | True |
| Finish Family | White |

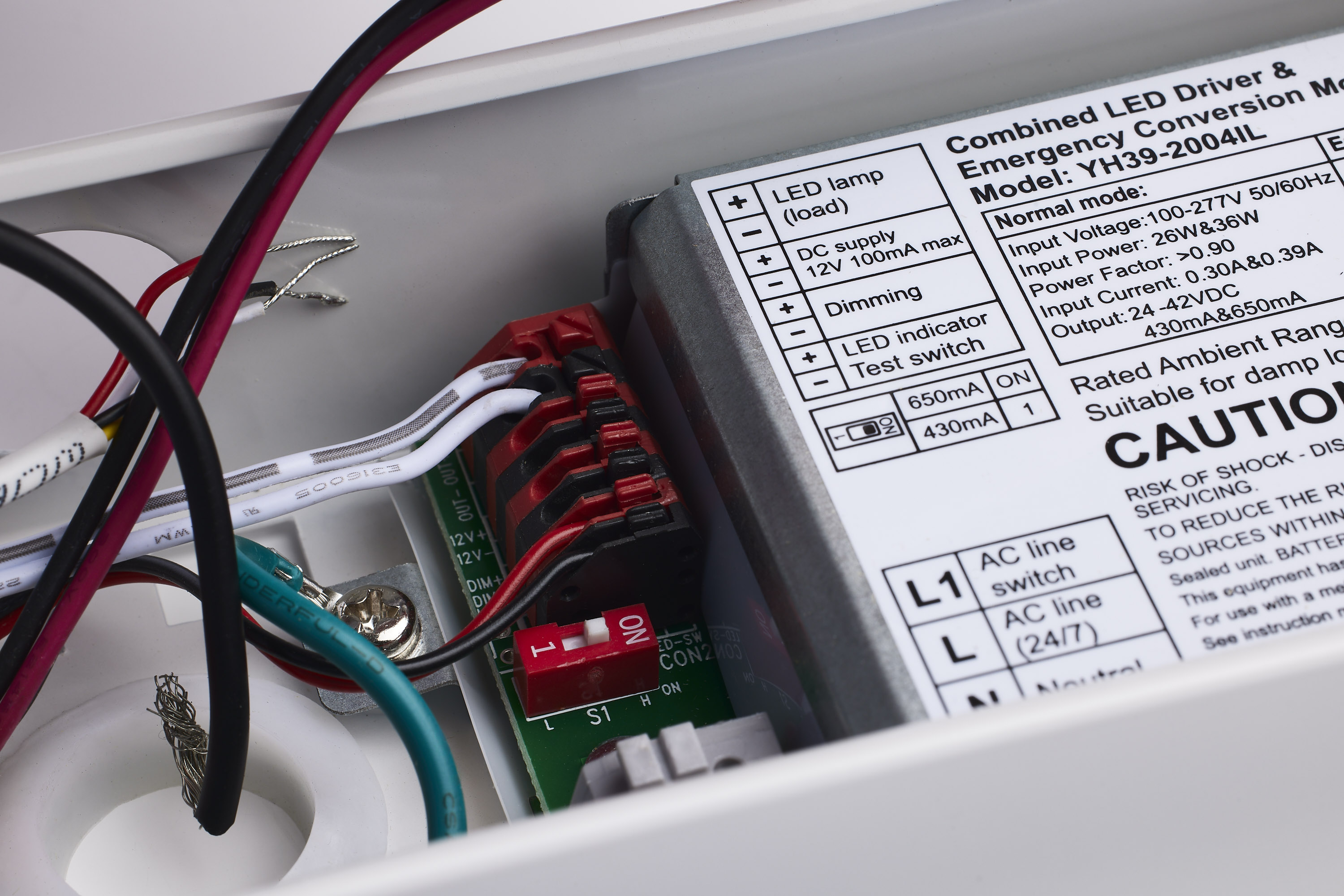

| Additional Info | EM Mode 4W/90 Min run time. Other DLC Listings: S-UZ1QD6, Standard, Direct Linear Ambient Luminaires. |
| Amps | 0.250-0.108/0.333-0.144/0.417-0.181A |

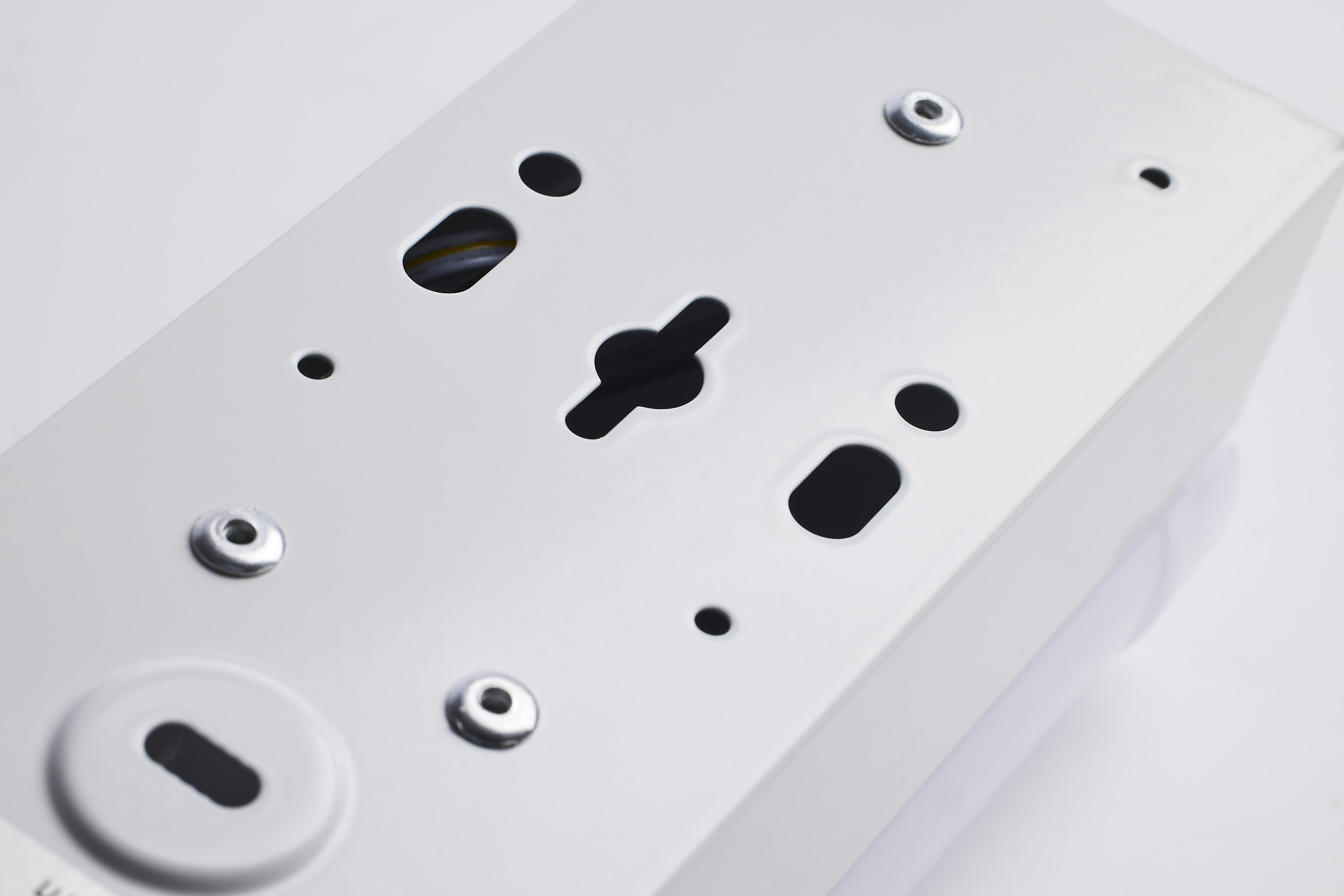

| Mounting Diameter | 4.75 |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | White |
| Lens Material | Polycarbonate (PC) |

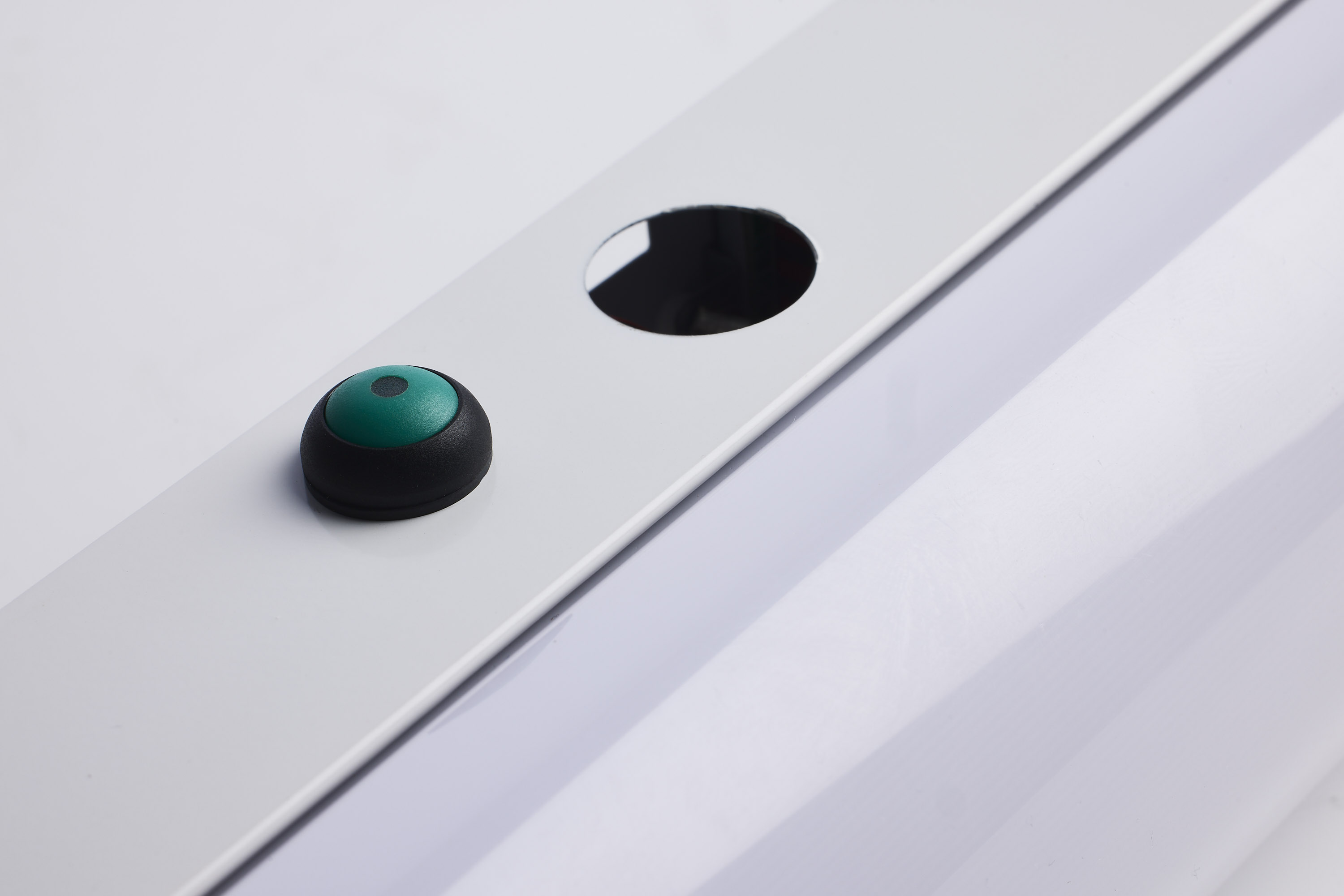

| Photo Cell | Has Photocell |
| Power Factor | 0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 128W |
| Incandescent Equivalent | 125W |
| CCT (Kelvin Temp) | 3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 120 |
| Color Temp | Neutral White to Daylight |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +60C (+140F) |
| HID Equivalent | 100W-150W |
| Lumens | 3900L-6750L |
| Volts | 120V-277V |
| Watts | 30W/40W/50W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Rectangle |
| Warranty | 5-Years |
|---|
| Flicker Free | True |
|---|
| Bug Rating | B2-U4-G2 |
|---|---|
| CA Regulations | T20 SBCS Listed |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| DLC ID | S-XSNARP; S-UZ1QD6; S-LL4W5Z |
| FCC Compliant | True |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Yes |
| T24 Compliant | False |
| UPC | 045923653605 |
|---|---|
| Case Cube | 5.6586 |
| Case Height | 11.81 |
| Case Length | 50.67 |
| Case Quantity | 6 |
| Case UPC | 10045923653602 |
| Case Weight | 38.91 |
| Case Width | 16.34 |
| EA Cube | 0.8002 |
| EA Height | 5.31 |
| EA Length | 50.08 |
| EA Quantity | 1 |
| EA Weight | 5.73 |
| EA Width | 5.2 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |

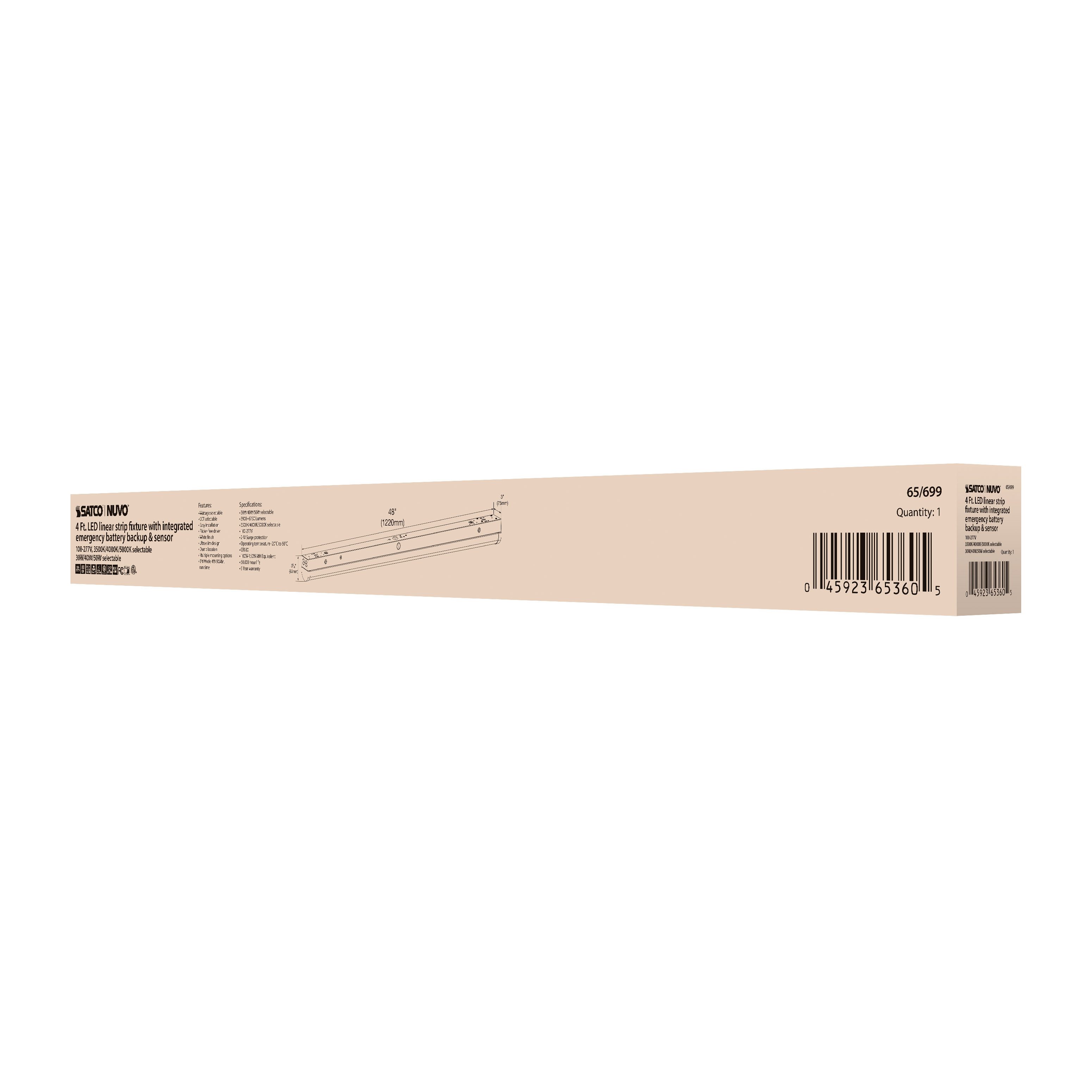

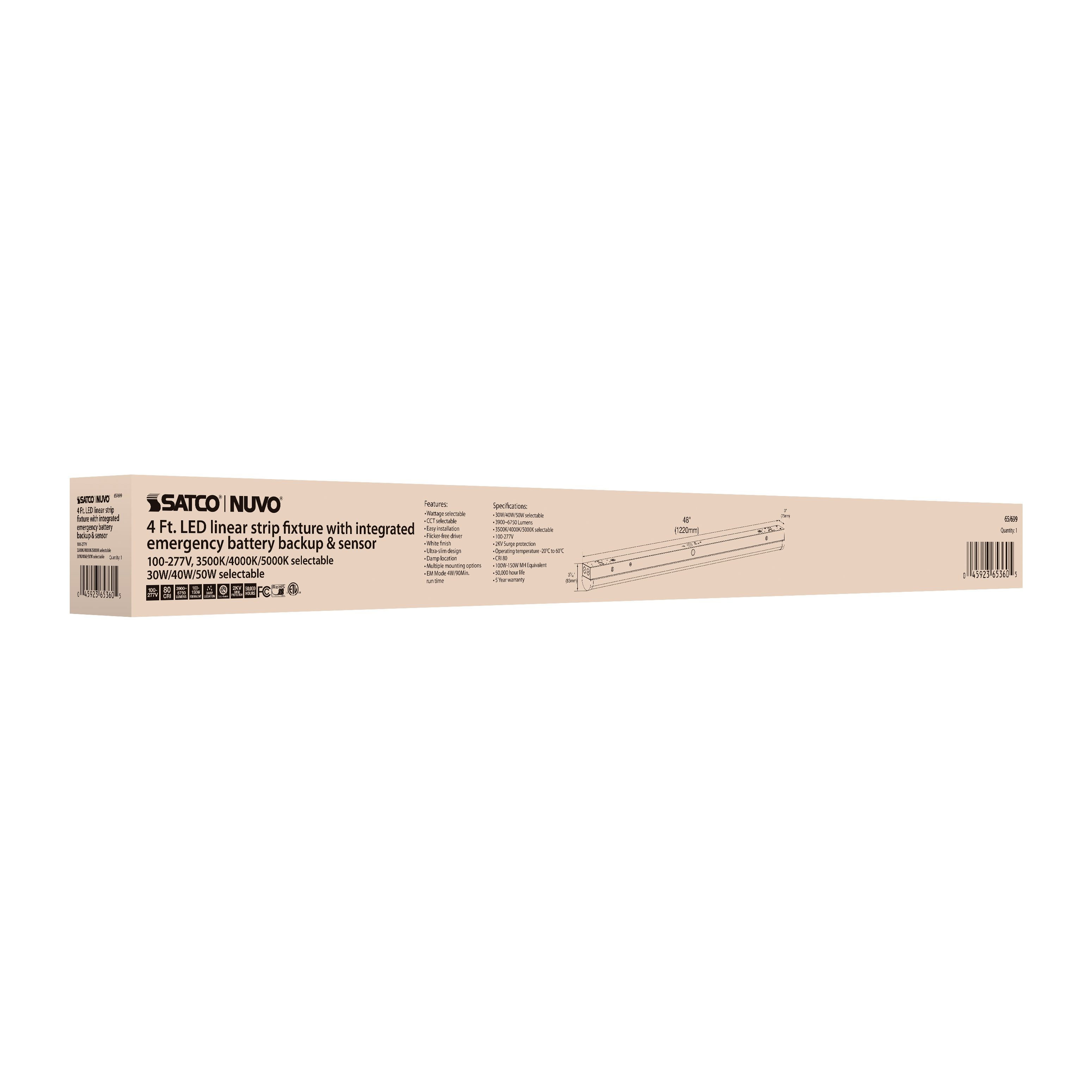

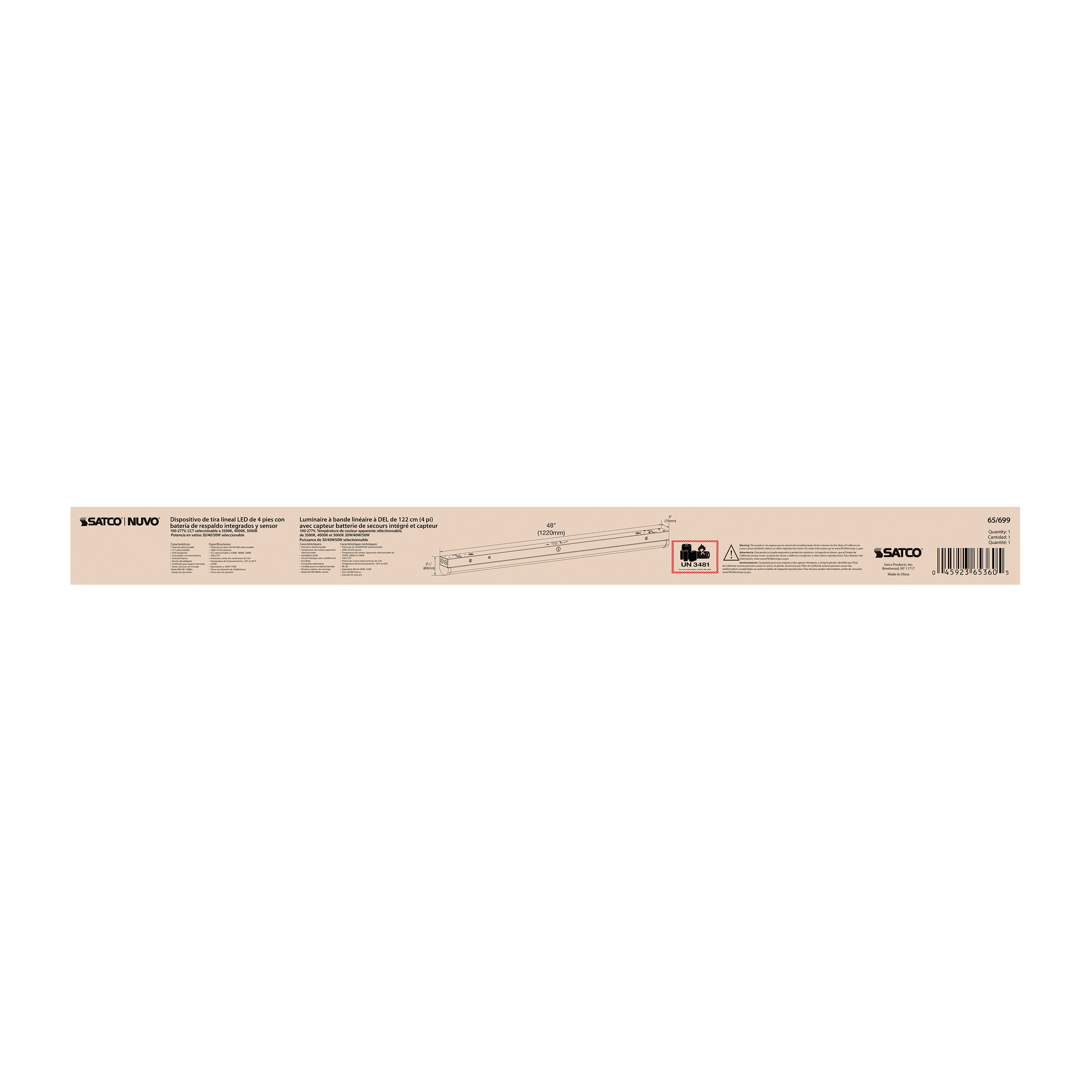

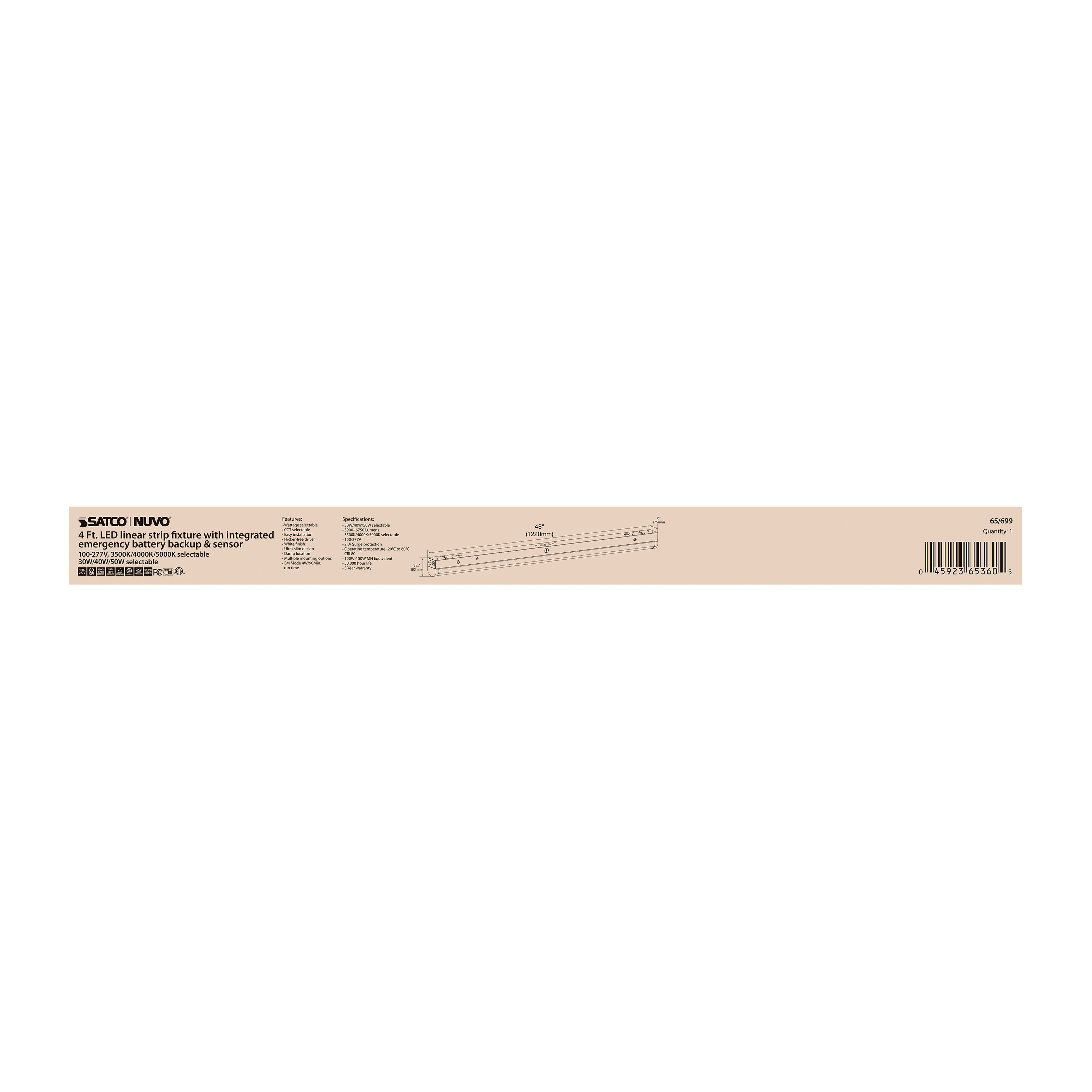

| Pack Type | Box |

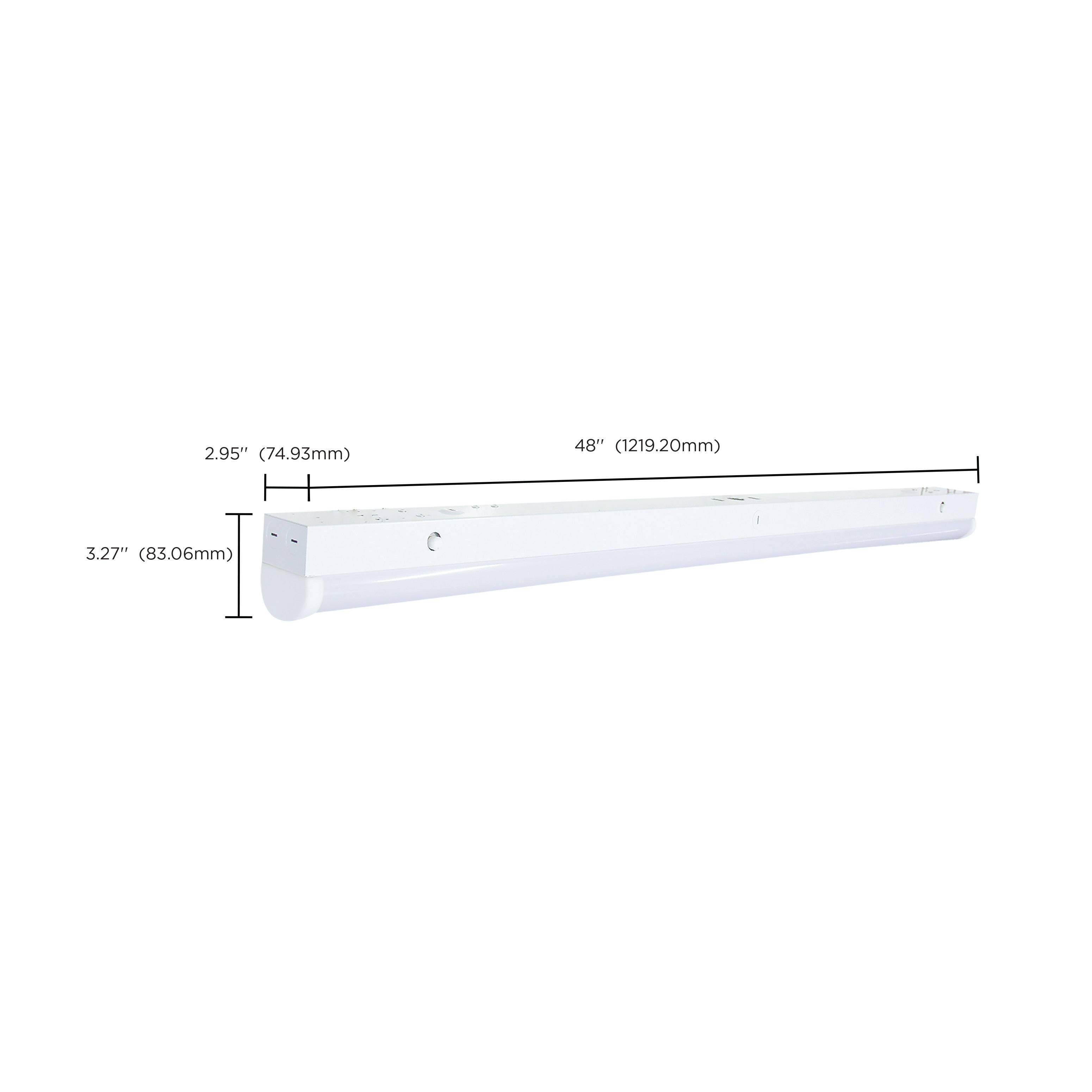

| Web Height | 3.27 |
| Web Length | 48.0 |
| Web Width | 2.95 |
