67-112 EL EXIT SIGN - SF GR CLR

67-112

EL EXIT SIGN - SF GR CLR

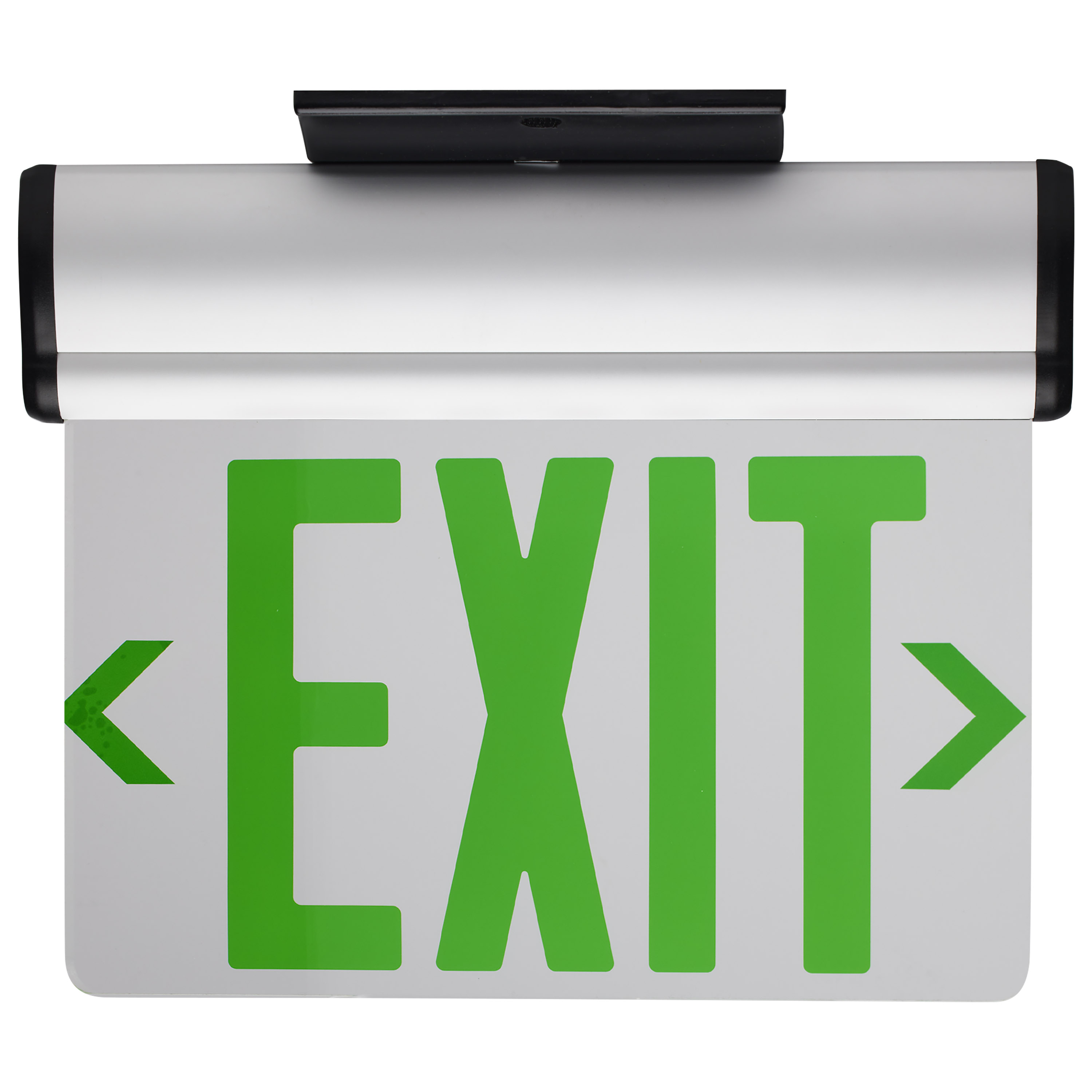

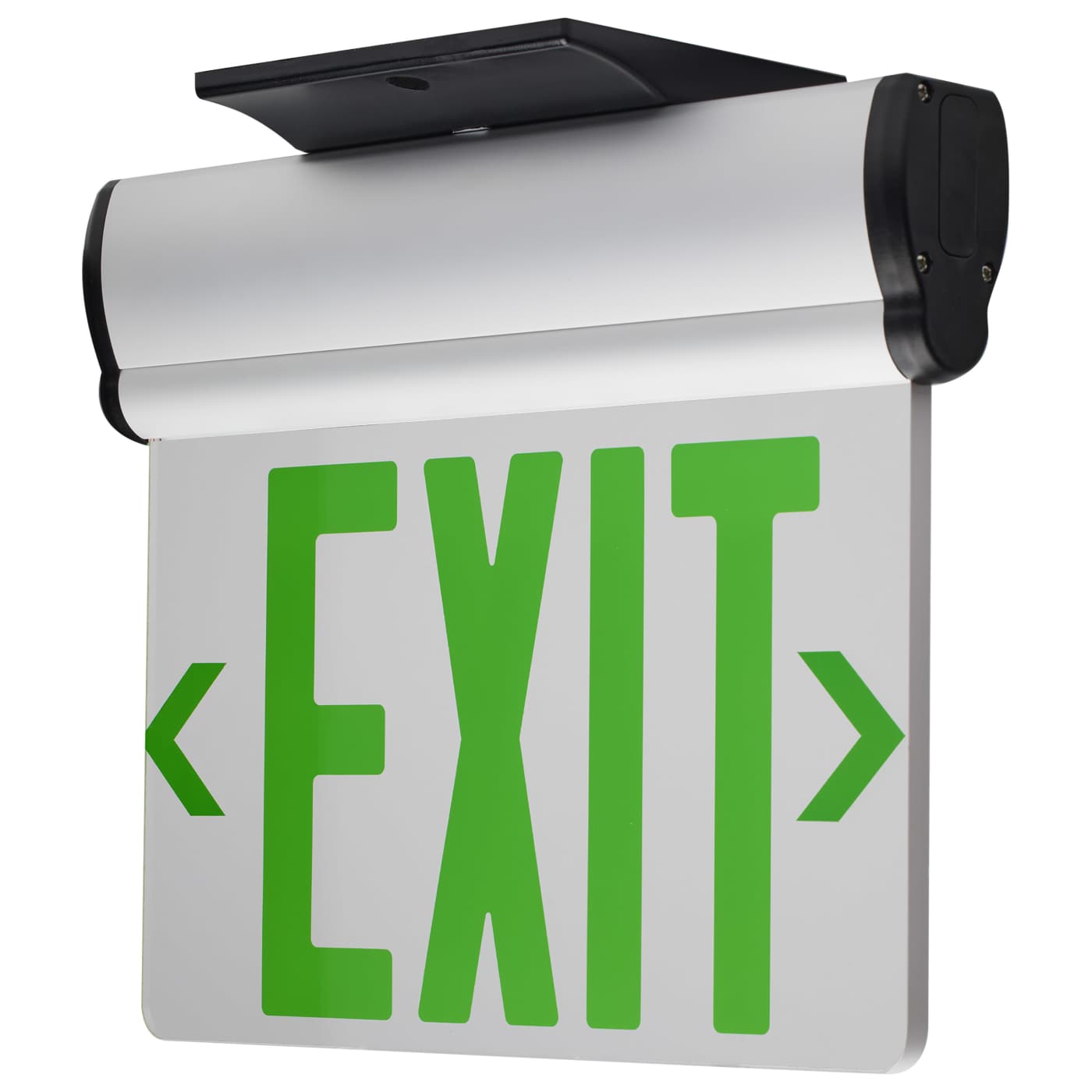

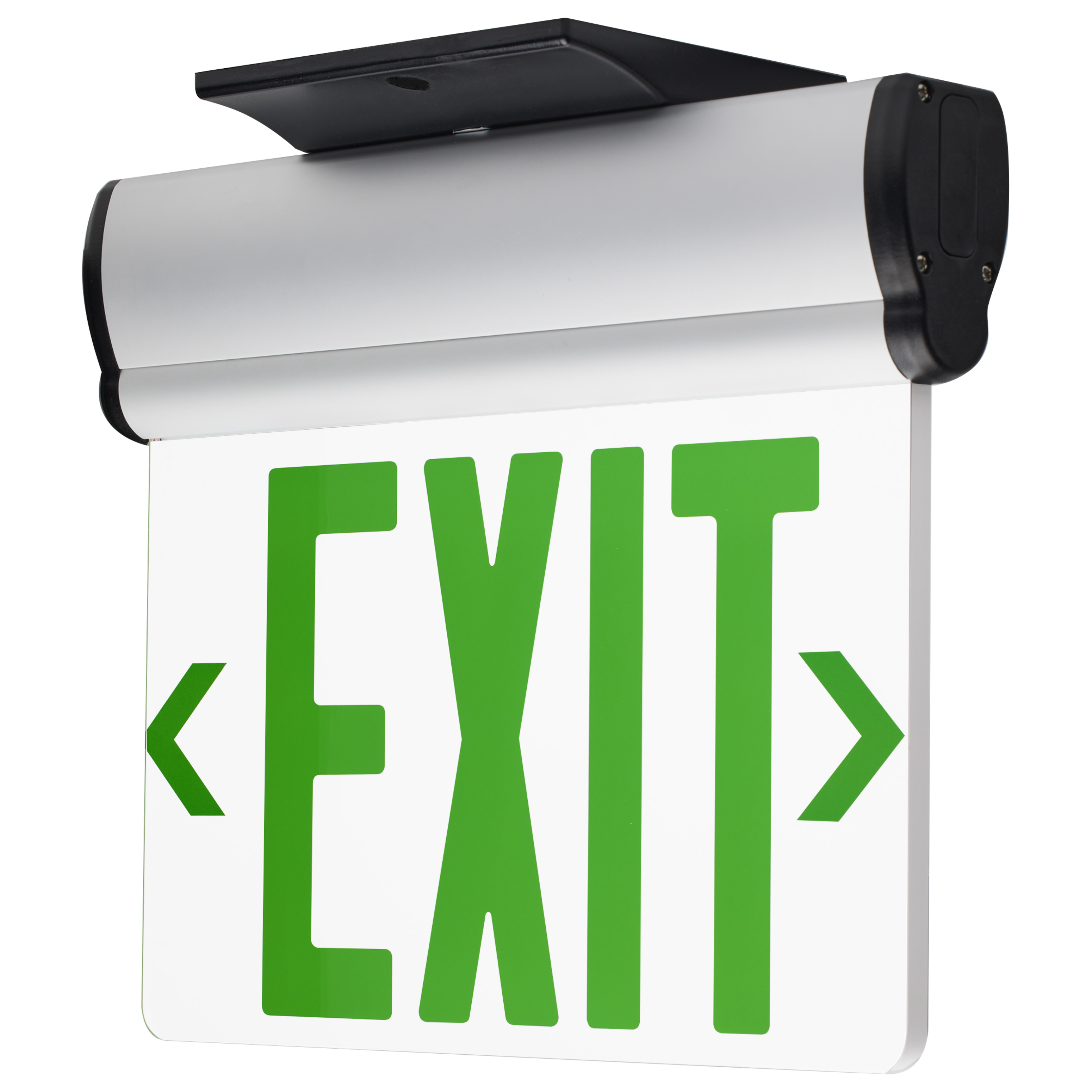

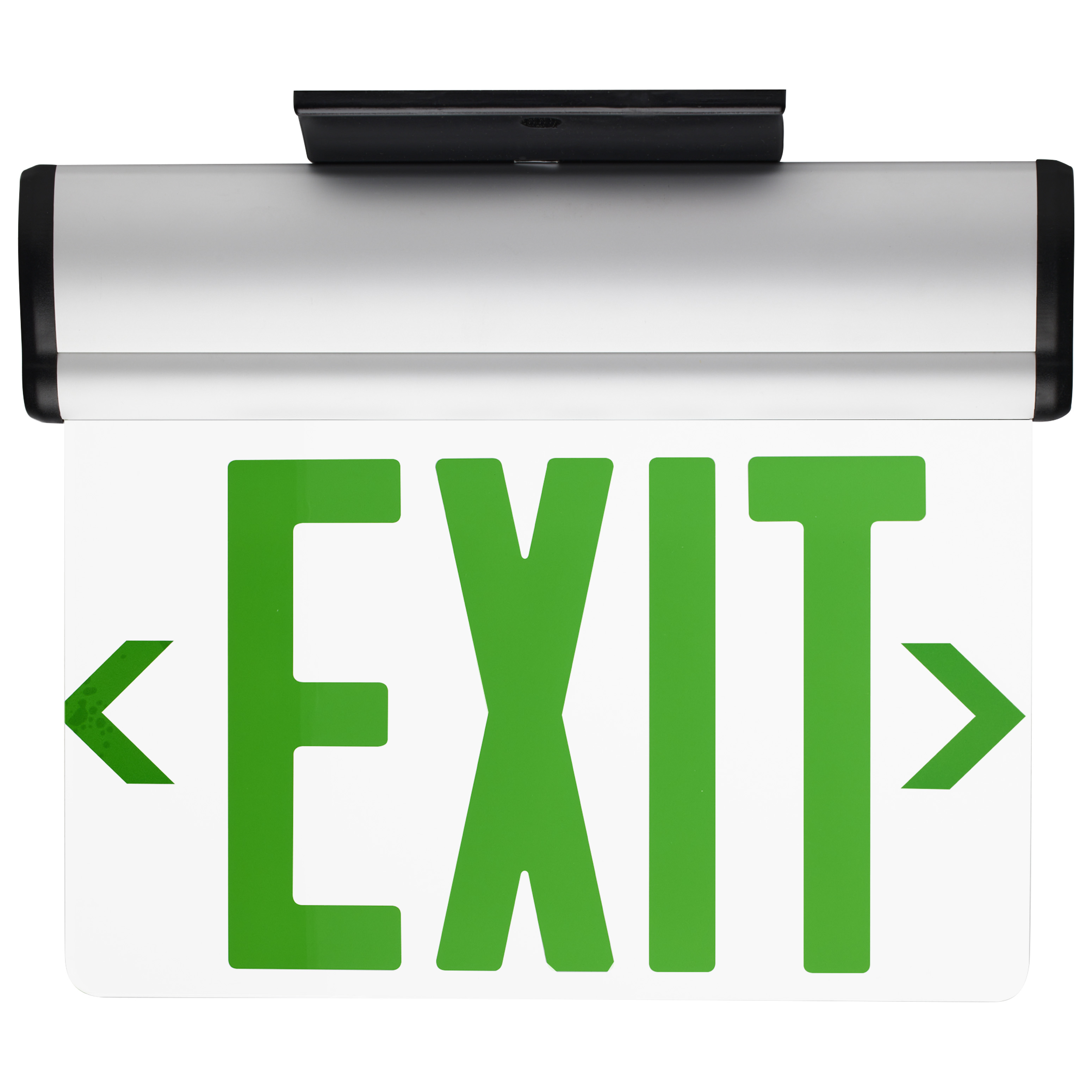

Green (Clear) Edge Lit LED Exit Sign, 90min Ni-Cad backup, 120/277V, Single Face, Top/Back/End Mount


SATCO|NUVO's LED Surface Mount Edge-Lit Exit Signs - the perfect solution for your commercial, hospitality and multi-family spaces. Available in four different configurations, these signs are designed with a sleek, brushed aluminum housing and offer configurable arrows, ceiling, wall or side mounting options, and a push-to-test button with an AC supply indicator. With a 90-minute battery backup run time, you can trust these signs to keep your space illuminated in the event of a power outage or emergency. Choose from single face mirrored or dual face clear acrylic with red or green lettering options to fit your specific needs. The surface mount style provides an easy installation process, and the versatility of these signs make them suitable for a range of applications. OSHA and NFPA compliant, don't compromise on safety - upgrade to SATCO|NUVO's LED Edge-Lit Exit Signs today.
  • Green Lettering
  • Single Face, Clear
  • Configurable Arrows
  • Ceiling, Wall or Side Mounting
  • Damp Location
  • Sleek Brushed Aluminum Housing
  • 90 Minute Backup Run Time

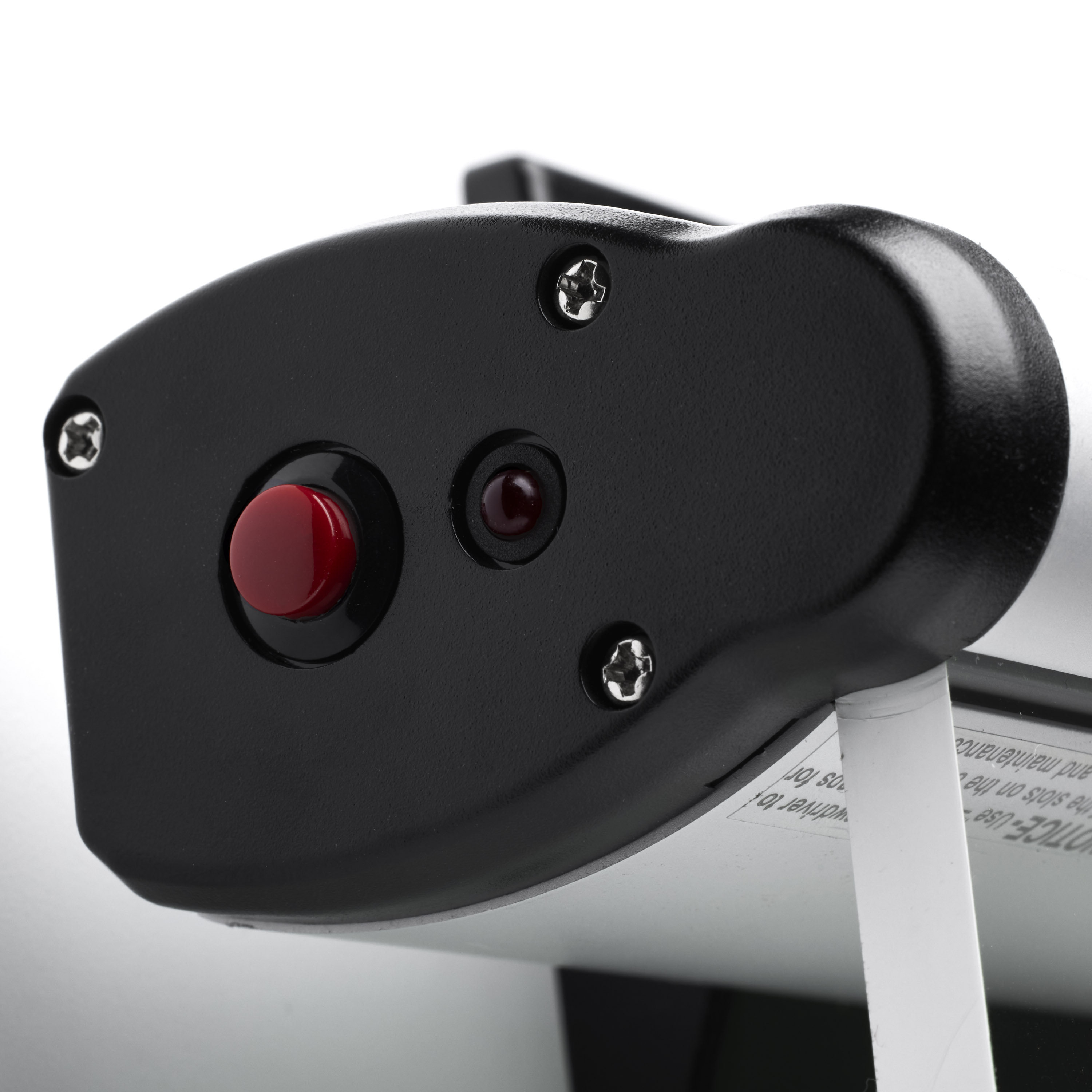

  • Test Switch and AC Supply Indicator
  • 2 Year Warranty
Lights

67-112

EL EXIT SIGN - SF GR CLR

Green (Clear) Edge Lit LED Exit Sign, 90min Ni-Cad backup, 120/277V, Single Face, Top/Back/End Mount

SATCO|NUVO's LED Surface Mount Edge-Lit Exit Signs - the perfect solution for your commercial, hospitality and multi-family spaces. Available in four different configurations, these signs are designed with a sleek, brushed aluminum housing and offer configurable arrows, ceiling, wall or side mounting options, and a push-to-test button with an AC supply indicator. With a 90-minute battery backup run time, you can trust these signs to keep your space illuminated in the event of a power outage or emergency. Choose from single face mirrored or dual face clear acrylic with red or green lettering options to fit your specific needs. The surface mount style provides an easy installation process, and the versatility of these signs make them suitable for a range of applications. OSHA and NFPA compliant, don't compromise on safety - upgrade to SATCO|NUVO's LED Edge-Lit Exit Signs today.
  • Green Lettering
  • Single Face, Clear
  • Configurable Arrows
  • Ceiling, Wall or Side Mounting
  • Damp Location
  • Sleek Brushed Aluminum Housing
  • 90 Minute Backup Run Time
  • Test Switch and AC Supply Indicator
  • 2 Year Warranty

Specifications

General
StatusActive
Fixture TypeExit Sign
FinishClear
Wattage2.94W
Indoor or Outdoor FixtureIndoor
Specifications
TechnologyLED
Wattage2.94W
Voltage120V/277V
Operating Temperature+10C (+50F) to +40C (+104F)
DimmableNon-Dimmable
Weight (lb.)2.76
MaterialAluminum

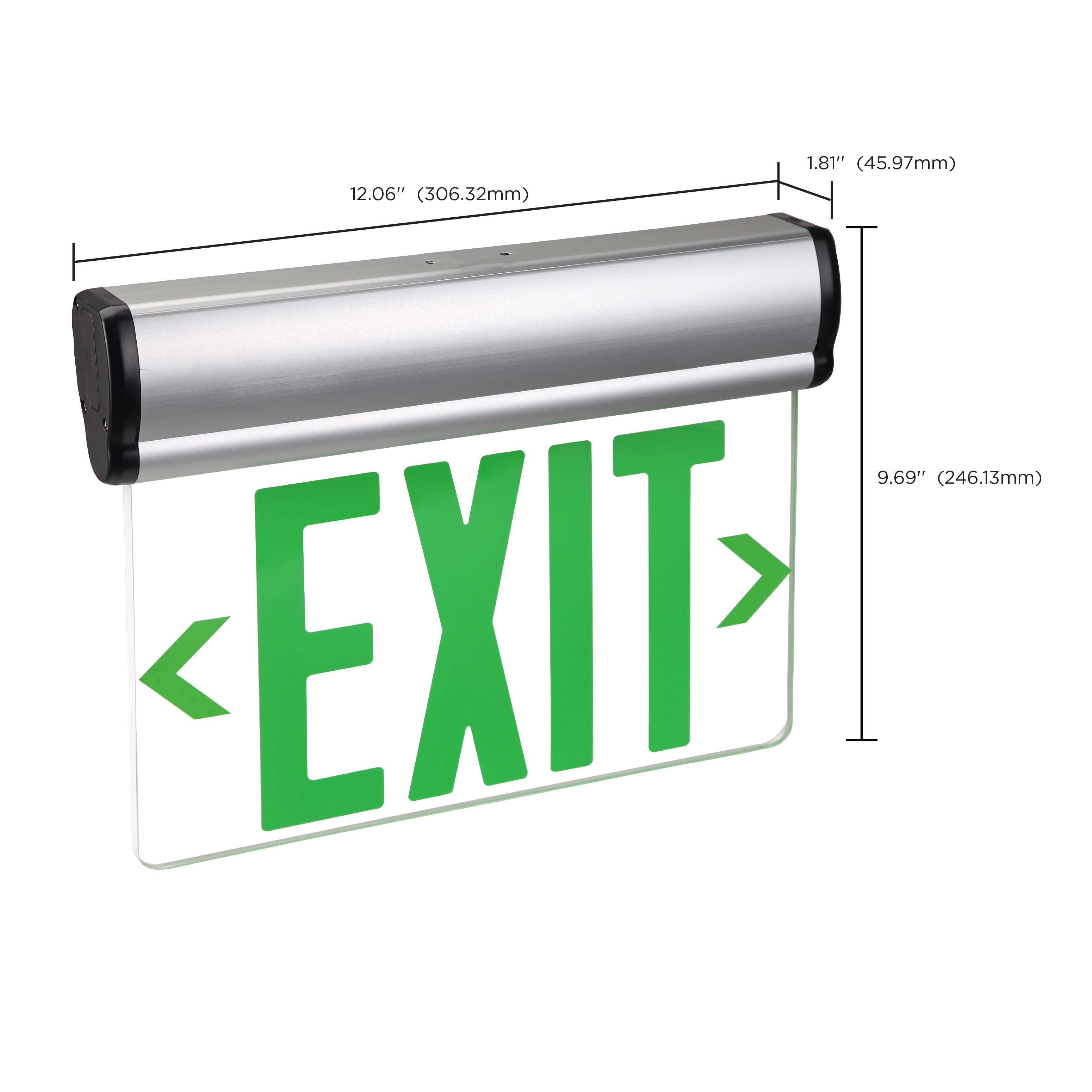

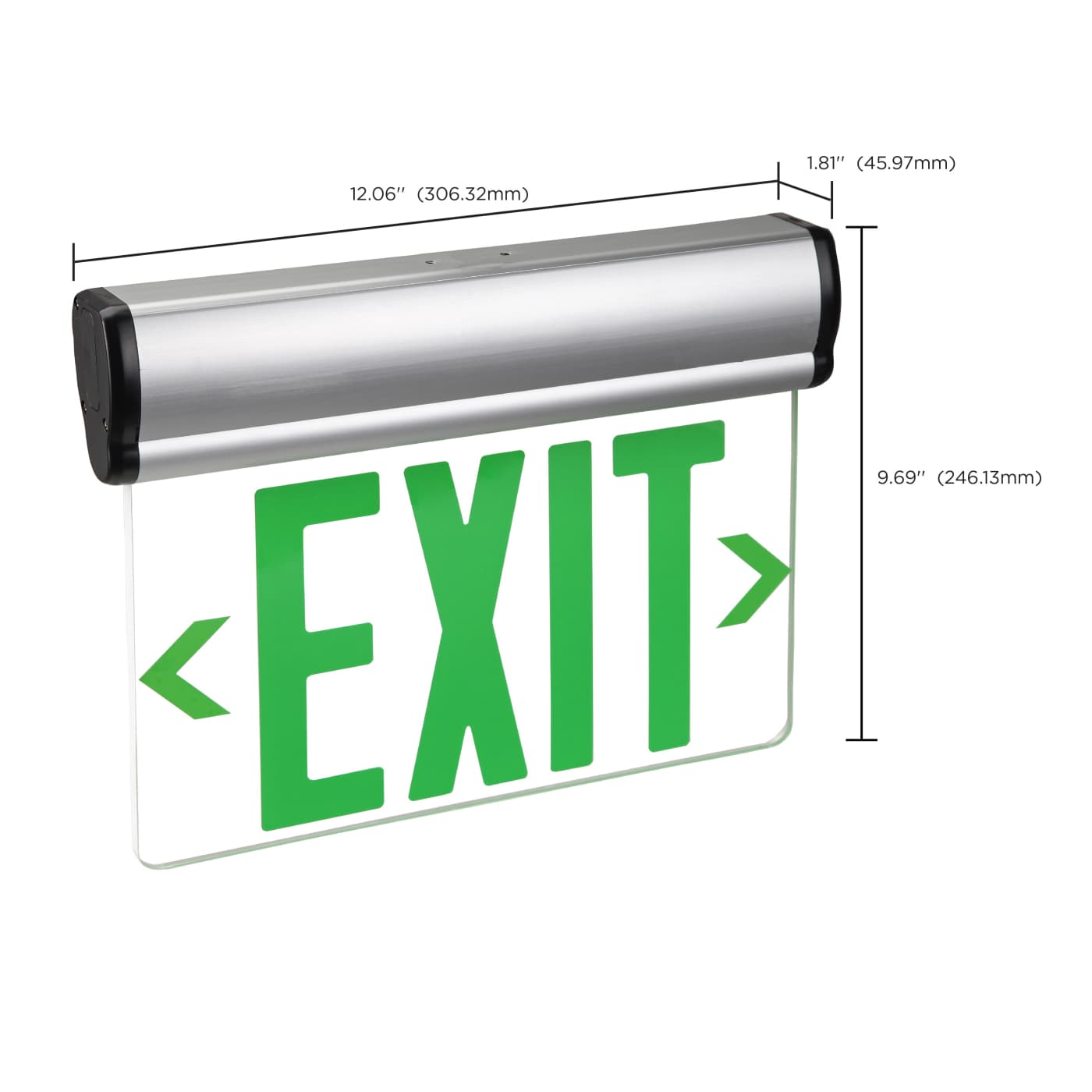

Dimensions
Height (in.)9.69
Width (in.)12.06
Length (in.)1.81
Compliance
Safety ListingULus - Certified
Location RatingDamp
Energy StarNo
CA T20 / T24 RationaleT20 Listed
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Additional Information
Additional InformationInput Wattage: 2.94W; Output Wattage: 0.5W; Energy Used in Maintenance Mode: 2.94W
Specification NoteAluminum, Acrylic Panel, 4.8V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 6 in.; Letter Stroke: 0.75 in.
IncludesMounting hardware and accessories
Warranty2 Year Limited
Packaging
Each UPC045923675720
Each Quantity1
Each Length (in.)12.60
Each Width (in.)8.46
Each Height (in.)2.76
Each Weight (lb.)2.98
Each Cube (CuFt.)0.1703
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923675727
Case Quantity6
Case Length (in.)13.39
Case Width (in.)17.32
Case Height (in.)9.45
Case Weight (lb.)16.53
Case Cube (CuFt.)1.2683
