» S8534

S8534 9WPLH/LED/850/BP/2P

S8534

9WPLH/LED/850/BP/2P

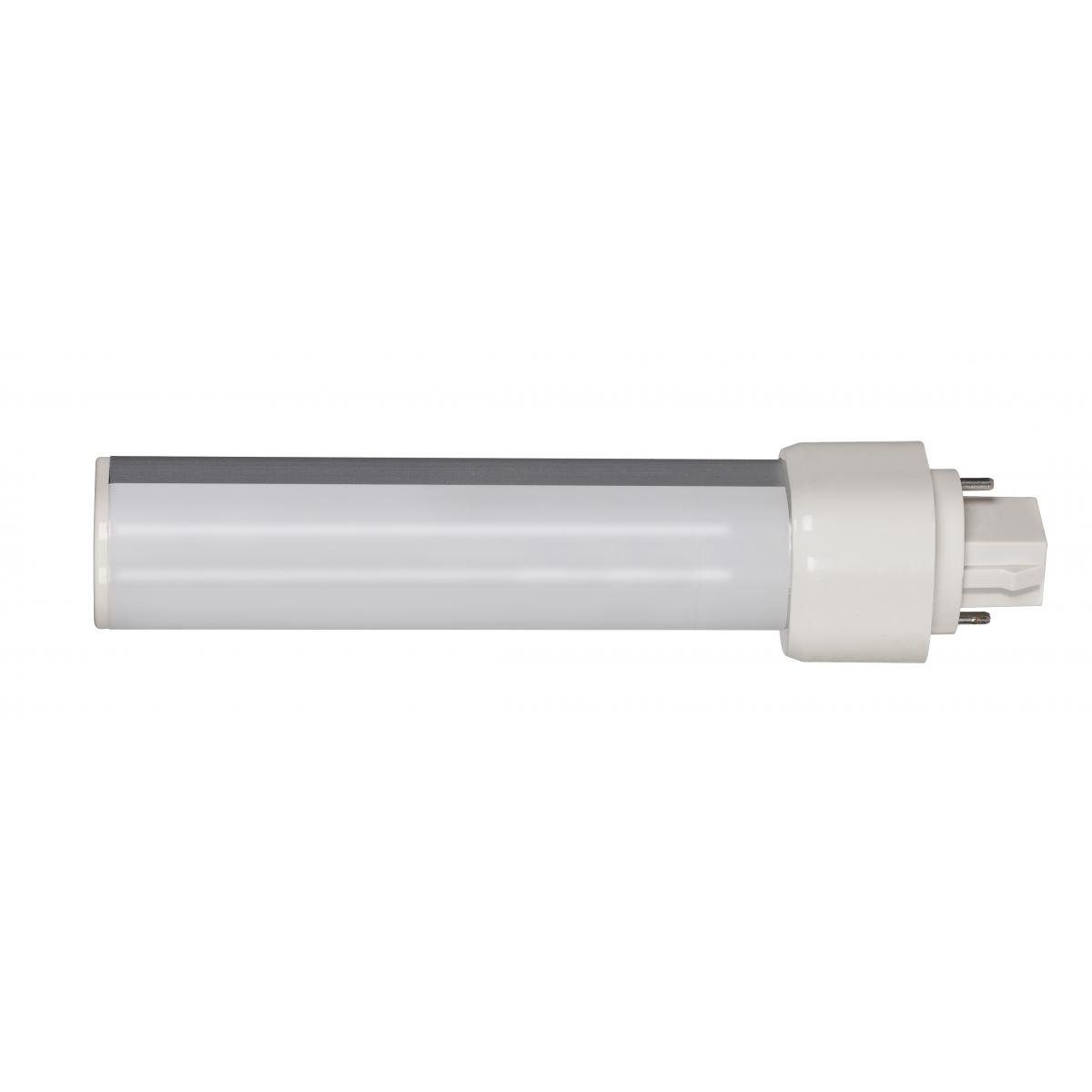

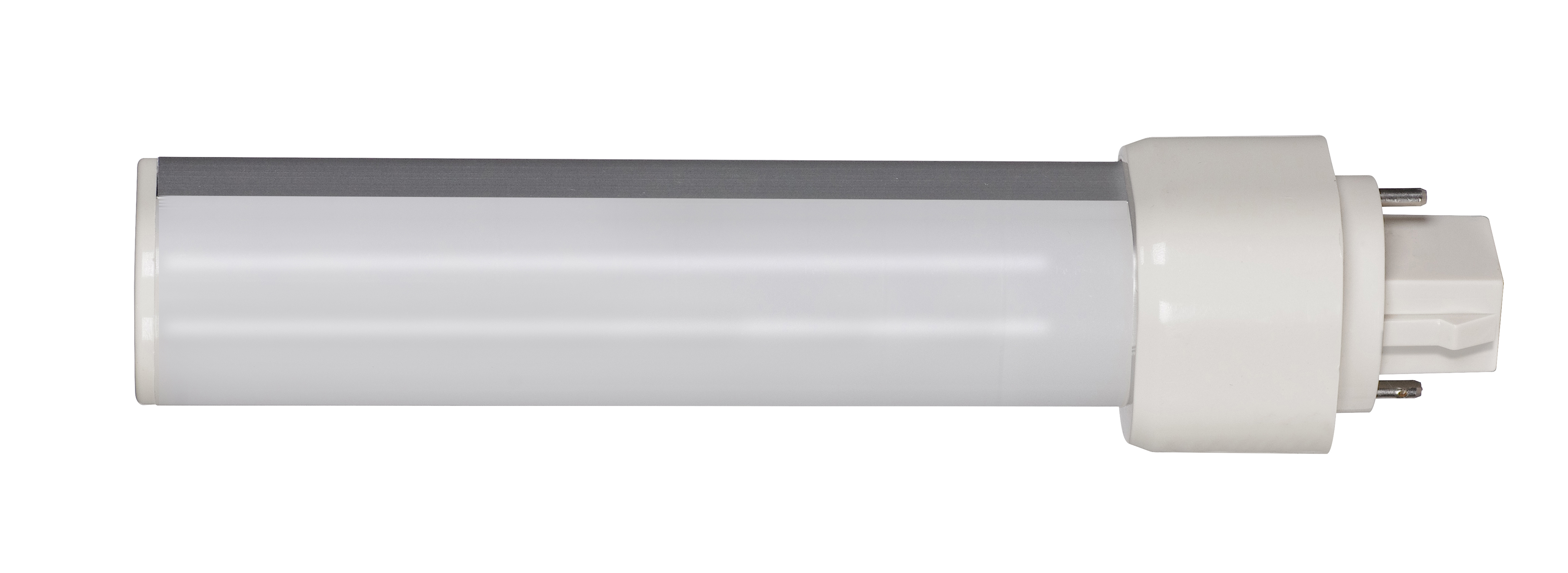

9 Watt LED PL 2-Pin; 5000K;1000 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Horizontal; Type B; Ballast Bypass


Lights

S8534

9WPLH/LED/850/BP/2P

9 Watt LED PL 2-Pin; 5000K;1000 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Horizontal; Type B; Ballast Bypass

Specifications

General
StatusActive
Watts9W
Fluorescent Equivalent18W/26W
Volts120V-277V
Ballast TypeType B
ShapePL
BaseG24d (2-Pin)
ANSI BaseG24d
FinishFrost
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1000L
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Product CategoryPL
Lamp TypePL
Operating PositionHorizontal
TechnologyLED
Electrical
Watts9W
Fluorescent Equivalent18W/26W
Volts120V-277V
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1000L
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Operating PositionHorizontal
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL6.63
MOD1.09
ShapePL
BaseG24d (2-Pin)
ANSI BaseG24d
FinishFrost
Additional Information
Installation Notes2-pin LED lamps work in both 2-pin (magnetic) and 4-pin (electronic) sockets.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
California Prop 65
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923085345
Each Quantity1
Each Length (in.)1.50
Each Width (in.)1.50
Each Height (in.)6.77
Each Weight (lb.)0.26
Each Cube (CuFt.)0.0088
Pack TypeBox
Inner UPC20045923085349
Inner Quantity10
Inner Length (in.)8.00
Inner Width (in.)3.30
Inner Height (in.)7.09
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.1083
Case UPC10045923085342
Case Quantity50
Case Length (in.)14.56
Case Width (in.)8.66
Case Height (in.)9.00
Case Weight (lb.)13.00
Case Cube (CuFt.)0.6567
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
