SKU S8555 - Image 1

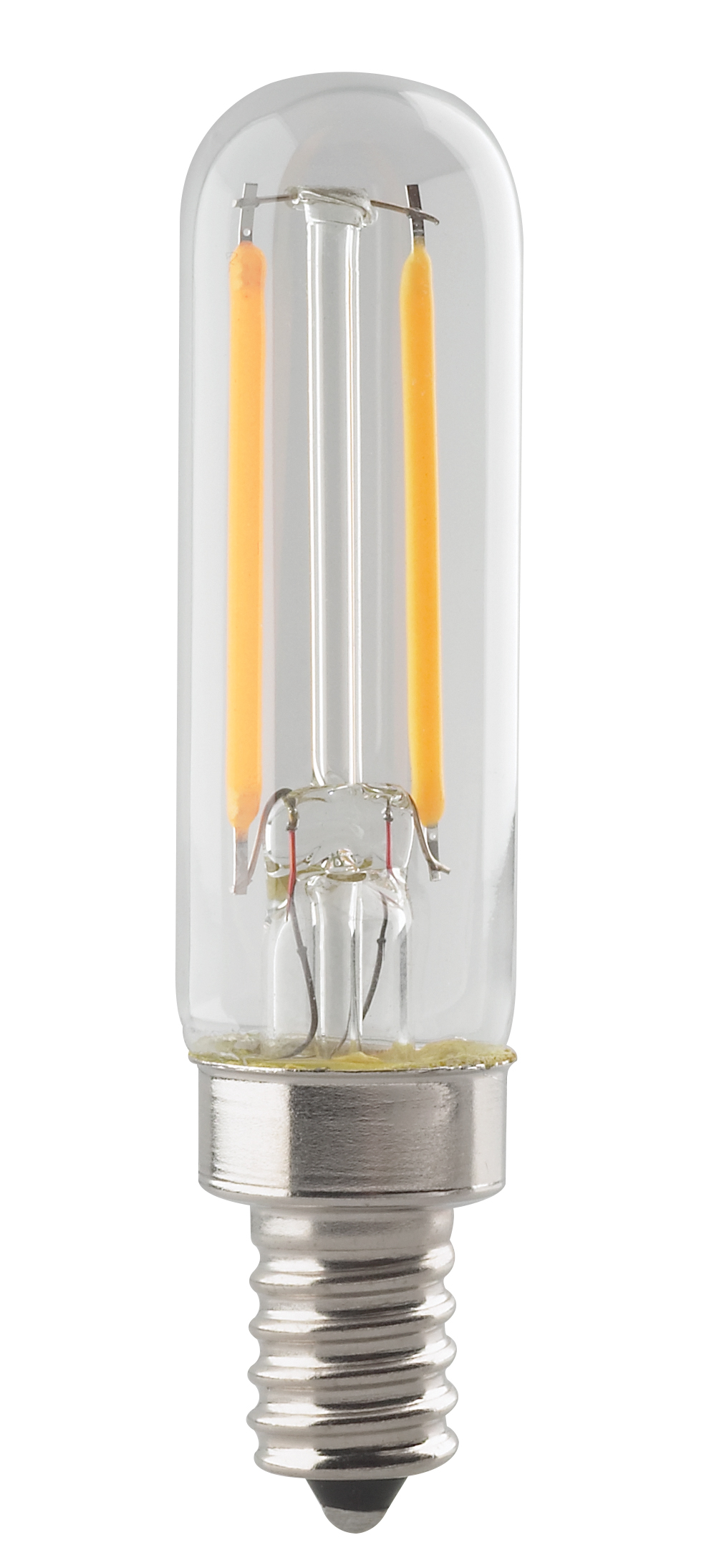

S8555

2.5T6/LED/CL/27K/E12/120V

Discontinued - Suggested Replacement: S21340
  • 2.5 Watt T6 LED Filament
  • Clear
  • Candelabra base
  • 2700K
  • 180 Lumens
  • 120 Volt
location_rating^damp^1
title_20^y^1
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S8555 Specifications
Description
Description
2.5 Watt T6 LED Filament; Clear; Candelabra base; 2700K; 180 Lumens; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED Filament
Fixture TypeTubular
StatusDiscontinued
Most Current GenerationS21340
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.021A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Operating PositionUniversal
Power Factor0.8
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent25W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Temp-20C (-4F) to +45C (+113F)
Lumens180L
Volts120v
Watts2.5W
Physical
Lamp BaseCandelabra
FinishClear
ANSI BaseE12
Lamp TypeT6
MOD Lamps0.75
MOL3.19
Additional Info
Warranty2-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsT20 Listed
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Yes
Packaging
UPC045923085550
Case Cube0.0621
Case Height4.06
Case Length6.1
Case Quantity24
Case UPC10045923085557
Case Weight0.98
Case Width4.33
EA Cube0.0013
EA Height3.54
EA Length0.79
EA Quantity1
EA Weight0.02
EA Width0.79
Inner Cube0.0112
Inner Height3.47
Inner Length2.84
Inner Quantity6
Inner UPC20045923085554
Inner Weight0.16
Inner Width1.97
Pack TypeBox
Web Length3.19
Web Width0.75
