Lights

S11920

13.5T8/LED/48-830/DIM-BP

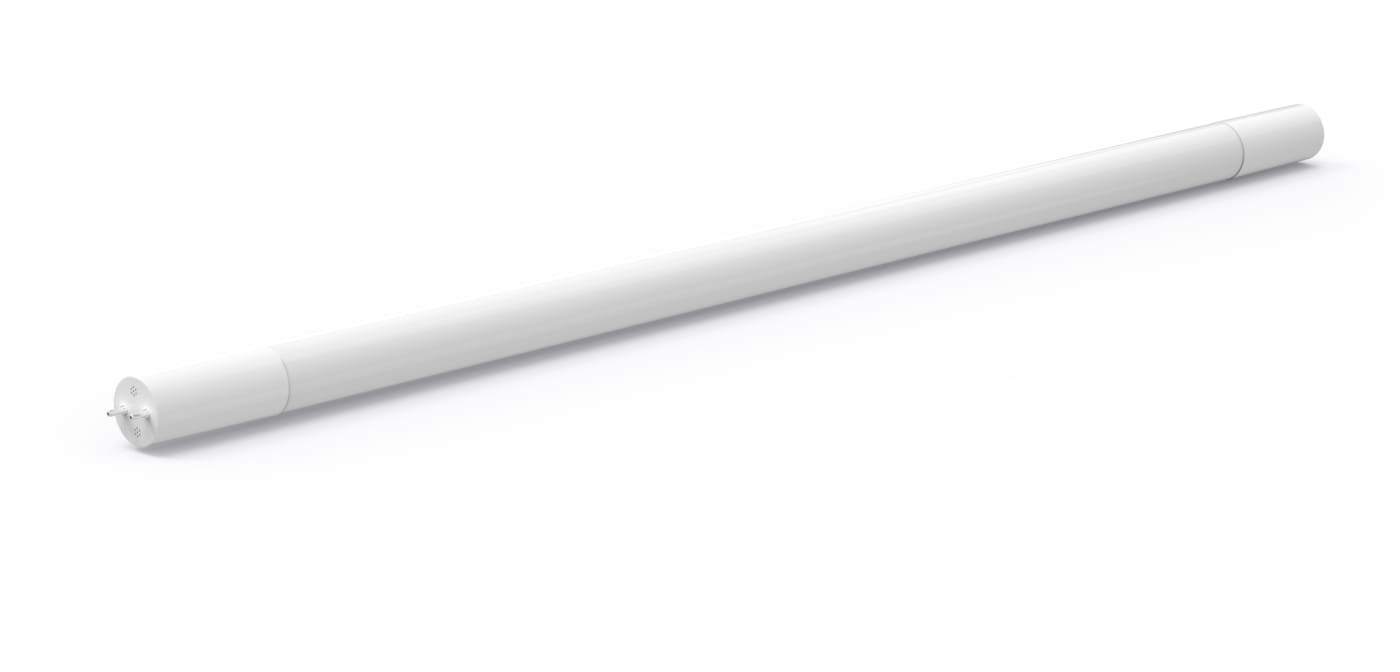

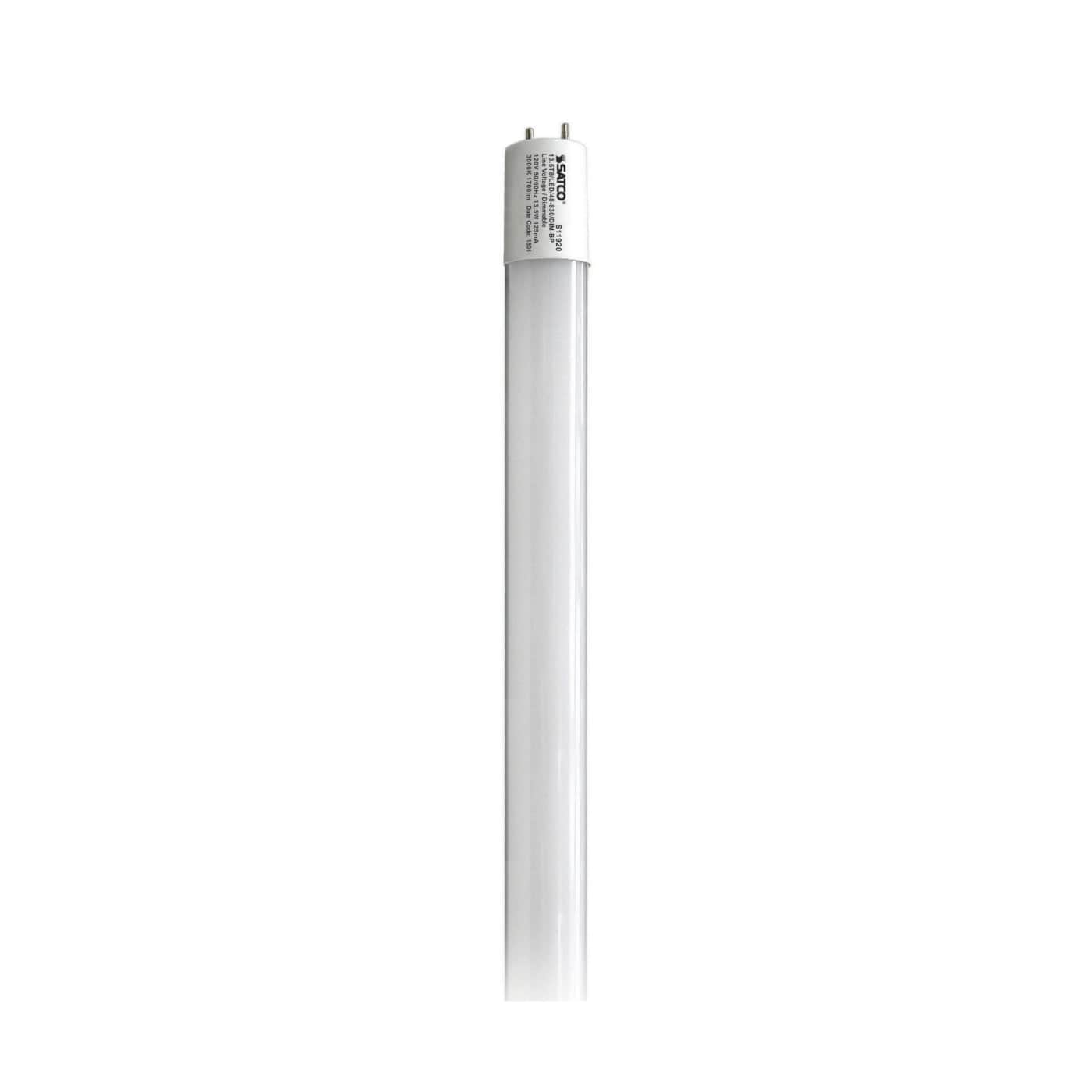

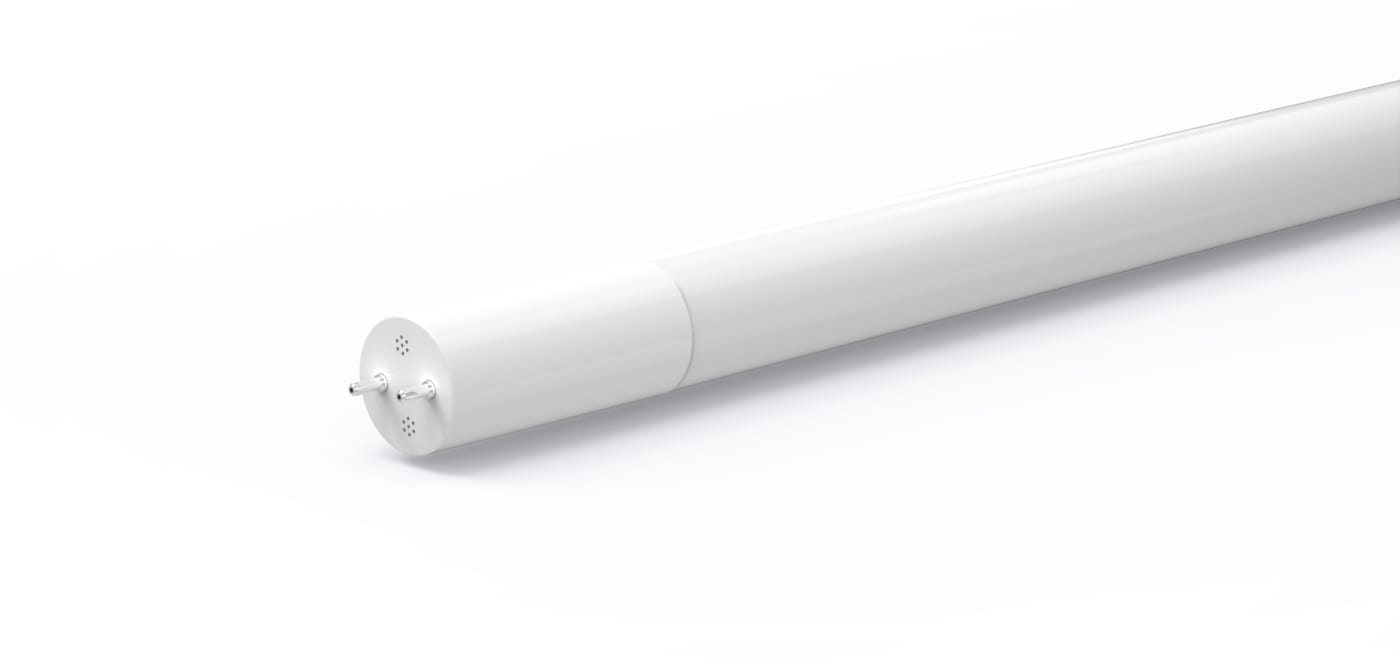

13.5 watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Dimmable; Type B; Ballast Bypass; Single Ended Wiring

Lights

S11920

13.5T8/LED/48-830/DIM-BP

13.5 watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Dimmable; Type B; Ballast Bypass; Single Ended Wiring

Specifications

General
StatusActive
Watts13.5
Volts120V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishFrosted
CCT (Kelvin)3000
TemperatureWarm White
CRI82
Lumens1700
Beam Spread220
DimmableYes Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts13.5
Volts120V
Ballasting RequirementsBallast Bypass; Direct wire 120V line voltage; No ballast or external driver required
Ballast TypeType B
CCT (Kelvin)3000
TemperatureWarm White
CRI82
Lumens1700
Beam Spread220
DimmableYes Dimmable
Dimmable Down To< 10 %
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrosted
Lens FinishFrosted
Lens MaterialGlass
Housing ColorWhite
Additional Information
Additional InfoAll glass tube
Tube Guard UseApproved for use with tube guards
Installation NotesInstall only in non-shunted lampholders
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus Classified - Damp
Energy StarNo
DLC ApprovedYes
DLC IDPLV12B1YBIYP
CEC StatusLawful for sale in California
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923119200
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.50
Each Cube (CuFt.)0.03
Pack TypeSleeve
Inner UPC00000000000000
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.00
Case UPC10045923119207
Case Quantity25
Case Length (in.)49.00
Case Width (in.)5.90
Case Height (in.)5.90
Case Weight (lb.)13.00
Case Cube (CuFt.)0.96
×

Dimmer Compatibility

Dimmer Model Number Brand Website
DVELV-300P Lutron Visit
SELV-300P Lutron Visit
CTRP-253P Lutron Visit
DVRP-253P Lutron Visit
NTELV-300 Lutron Visit
NTRP-250 Lutron Visit
6615-P Leviton Visit
ADTP703TU LeGrand Visit
RRD-6NA Lutron Visit
DSE06-10Z Leviton Visit
66ELV Leviton Visit
IPE04 Leviton Visit
×

Precautions

No precautions available at this time.
