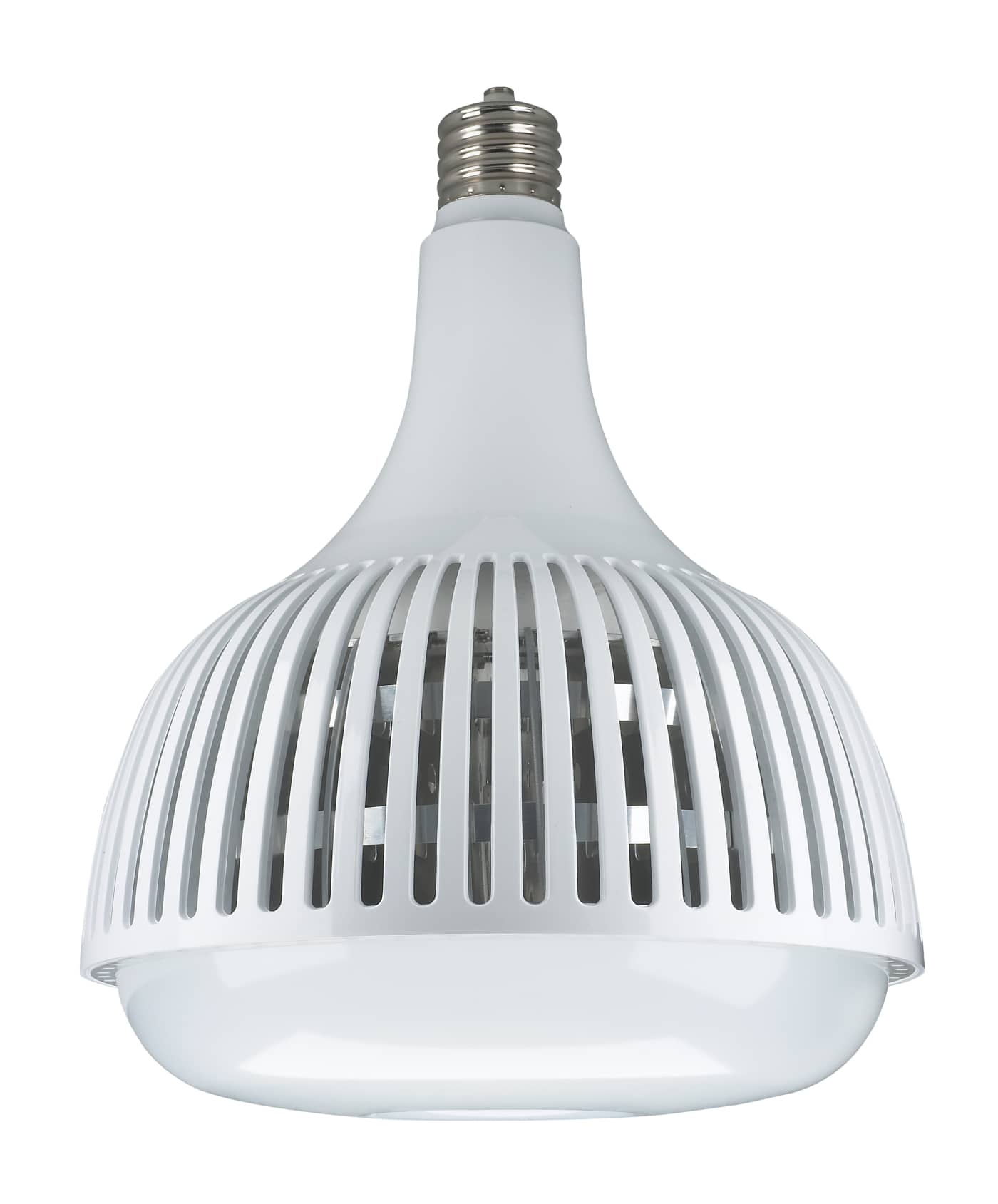

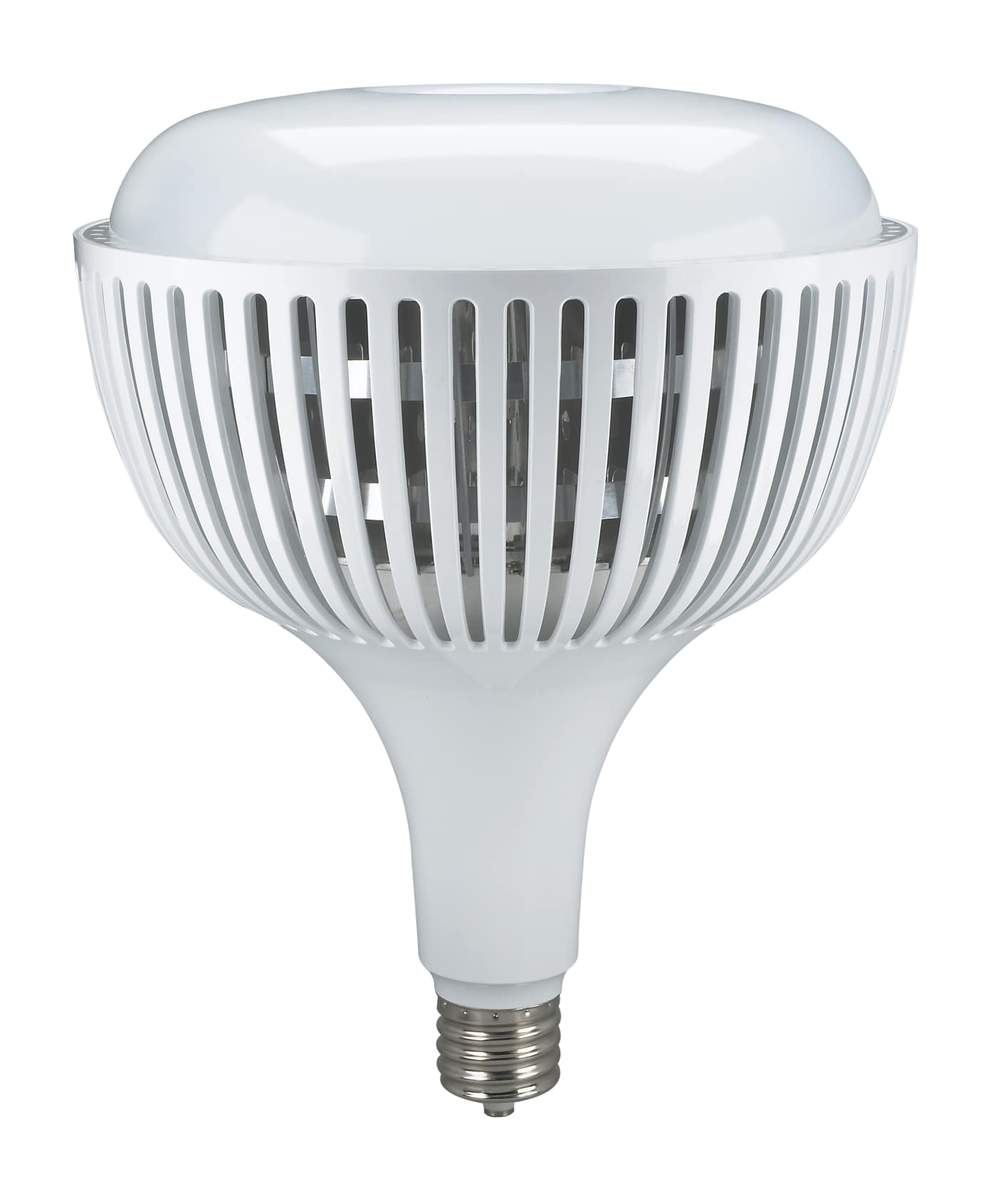

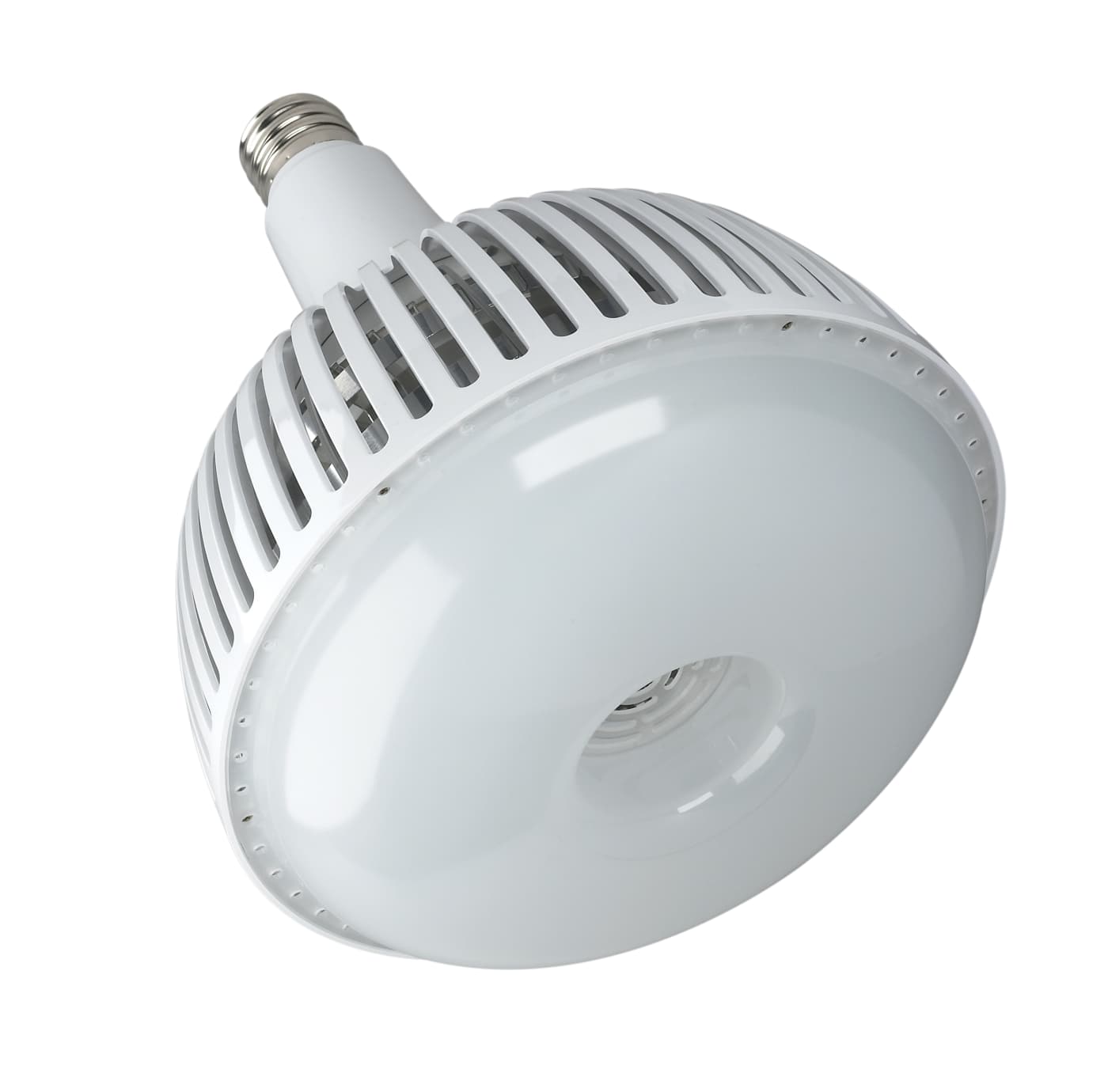

130W/LED/HID-HB/5K/120-277V - S13115
130W/LED/HID-HB/5K/120-277V - S13115
130W/LED/HID-HB/5K/120-277V - S13115
S13115

130W/LED/HID-HB/5K/120-277V

Discontinued - Suggested Replacement: S33115
  • 130 Watt - LED HID Replacement
  • 5000K
  • Mogul extended base
  • Type B Ballast Bypass
  • 120-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S13115 SpecificationsS13115 Photometrics.iesS13115 Instructions EnSpFr.pdf
Tools
Lighting Layout Analysis For S13115
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
130 Watt - LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;120-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Candle Power5000.0
Center Beam Candle Power5000
Lamp FilamentLED
MaterialPlastic
Fixture TypeHi-Bay
StatusObsolete
StyleContemporary
Surge ProtectionBuilt-in surge protection - 6KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps1.083-0.469A
Has CameraNo
IOT EnabledNo
Lens FinishTranslucent White
LensedYes
Minimum Compartment SizeLength: 16.5 in. Width: 16.5 in. Height: 13 in.
Operating PositionUniversal
Power Factor0.99/0.95
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent2000W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)115
Color TempNatural Light
CRI80+
Operating Frequency50-60Hz
Operating Temp-40C (-40F) to +60C (+140F)
HID Equivalent400W
Lumens16300L
Volts120V-277V
Watts130W
Physical
Lamp BaseMogul Extended
FinishTranslucent White
Housing ColorWhite
ANSI BaseEX39
Lamp TypeHB77
MOD Lamps9.65
MOL12.4
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
Packaging
UPC045923131158
Case Cube3.2815
Case Height13.98
Case Length20.2
Case Quantity4
Case UPC10045923131155
Case Weight16.64
Case Width20.08
EA Cube0.6855
EA Height12.72
EA Length9.65
EA Quantity1
EA Weight3.62
EA Width9.65
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length12.4
Web Width9.65
