| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Plastic |
| Fixture Type | Linear |
| Status | Discontinued |
| Most Current Generation | S16438 |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.250-0.108A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Frost |
| Lensed | True |
| Nominal Length | 72.0 |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Fluor Equiv | 85W |
| Incandescent Equivalent | 125W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 360 |
| Color Temp | Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |

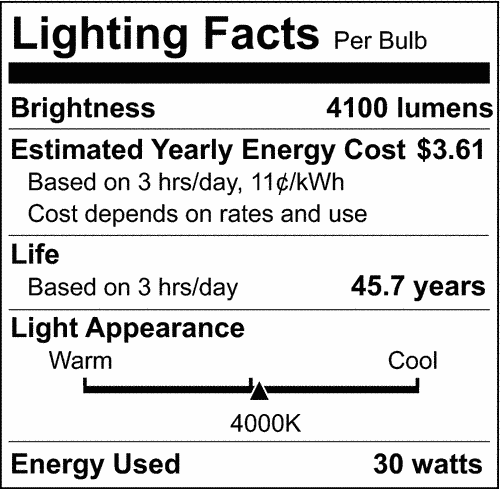

| Lumens | 4100L |
| Volts | 120V-277V |
| Watts | 30W |
| Lamp Base | Recessed Double Contact HO/VHO |
|---|---|
| Finish | Frost |
| ANSI Base | R17d |
| Lamp Type | T8 |
| MOD Lamps | 1.0 |
| MOL | 69.88 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| CO Status | Lawful for sale |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cRUus - Recognized Component, cULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component |
| CA Compliance Text | Lawful for sale |
| UL Application | Tubes |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923164088 |
|---|---|
| Case Cube | 1.5498 |
| Case Height | 4.92 |
| Case Length | 72.0 |
| Case Quantity | 10 |
| Case UPC | 10045923164085 |
| Case Weight | 17.6 |
| Case Width | 7.56 |
| EA Cube | 0.0414 |
| EA Height | 1.0 |
| EA Length | 71.46 |
| EA Quantity | 1 |
| EA Weight | 1.76 |
| EA Width | 1.0 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Egg Crate |
| Web Length | 69.88 |
| Web Width | 1.0 |
