| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass-Direct wire only 277-347V |
| Lamp Filament | LED |
| Material | Aluminum / Plastic |
| Fixture Type | Corncob |
| Status | Obsolete |
| Style | Contemporary |
| Most Current Generation | S23161 |
| Thermal Management | Hi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control). |
| Working Voltage | AC 250-380V |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | No Finish |
| Additional Info | Replaces HID, CFL, and Incandescent; UL approved for totally enclosed fixtures; Emits no UV light / Contains no Mercury (Hg) |
| Amps | 0.079-0.063A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lensed | True |
| Minimum Compartment Size | Length: 8.5 in. Width: 6 in. Depth: 6 in. |
| Operating Position | Universal |
| Power Factor | >0.88 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Fluor Equiv | 40W |
| Incandescent Equivalent | 150W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 300 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Operating Frequency | 50-60Hz |
| Operating Temp | -20C (-4F) to +65C (+149F) |
| HID Equivalent | 100W |

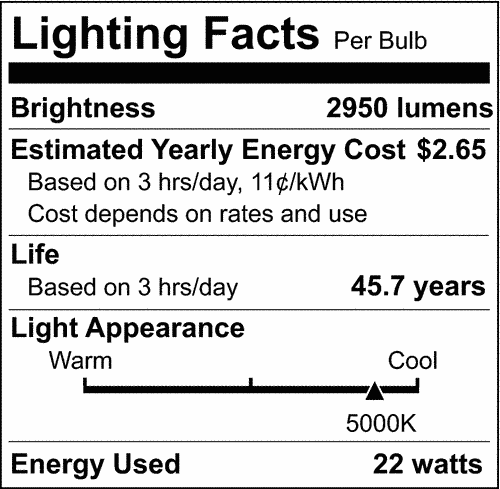

| Lumens | 2950L |
| Volts | 277V-347V |
| Watts | 22W |
| Lamp Base | Medium |
|---|---|
| Finish | Clear |
| Housing Color | WhiteGrey |
| ANSI Base | E26 |
| Lamp Type | Corncob |
| MOD Lamps | 2.76 |
| MOL | 7.56 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - >2600 Lumens |
|---|---|
| CA Status | Lawful for sale in California |
| CO Status | Lawful for sale |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| IP Rating | IP65 |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| ROHS Compliant | Yes |
| Safety Listing | cULus |
| CA Compliance Text | Lawful for sale |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923287114 |
|---|---|
| Case Cube | 2.0453 |
| Case Height | 20.08 |
| Case Length | 15.16 |
| Case Quantity | 24 |
| Case UPC | 10045923287111 |
| Case Weight | 31.3 |
| Case Width | 11.61 |
| EA Cube | 0.051 |
| EA Height | 7.71 |
| EA Length | 3.38 |
| EA Quantity | 1 |
| EA Weight | 1.15 |
| EA Width | 3.38 |
| Inner Cube | 0.7733 |
| Inner Height | 8.5 |
| Inner Length | 14.37 |
| Inner Quantity | 12 |
| Inner UPC | 20045923287118 |
| Inner Weight | 14.62 |
| Inner Width | 10.94 |
| Pack Type | Box |
| Web Length | 7.56 |
| Web Width | 2.76 |
