Discontinued – Suggested Replacement: S23165
S28713 45W/LED/HID/5K/277-347V/EX39

S28713

45W/LED/HID/5K/277-347V/EX39

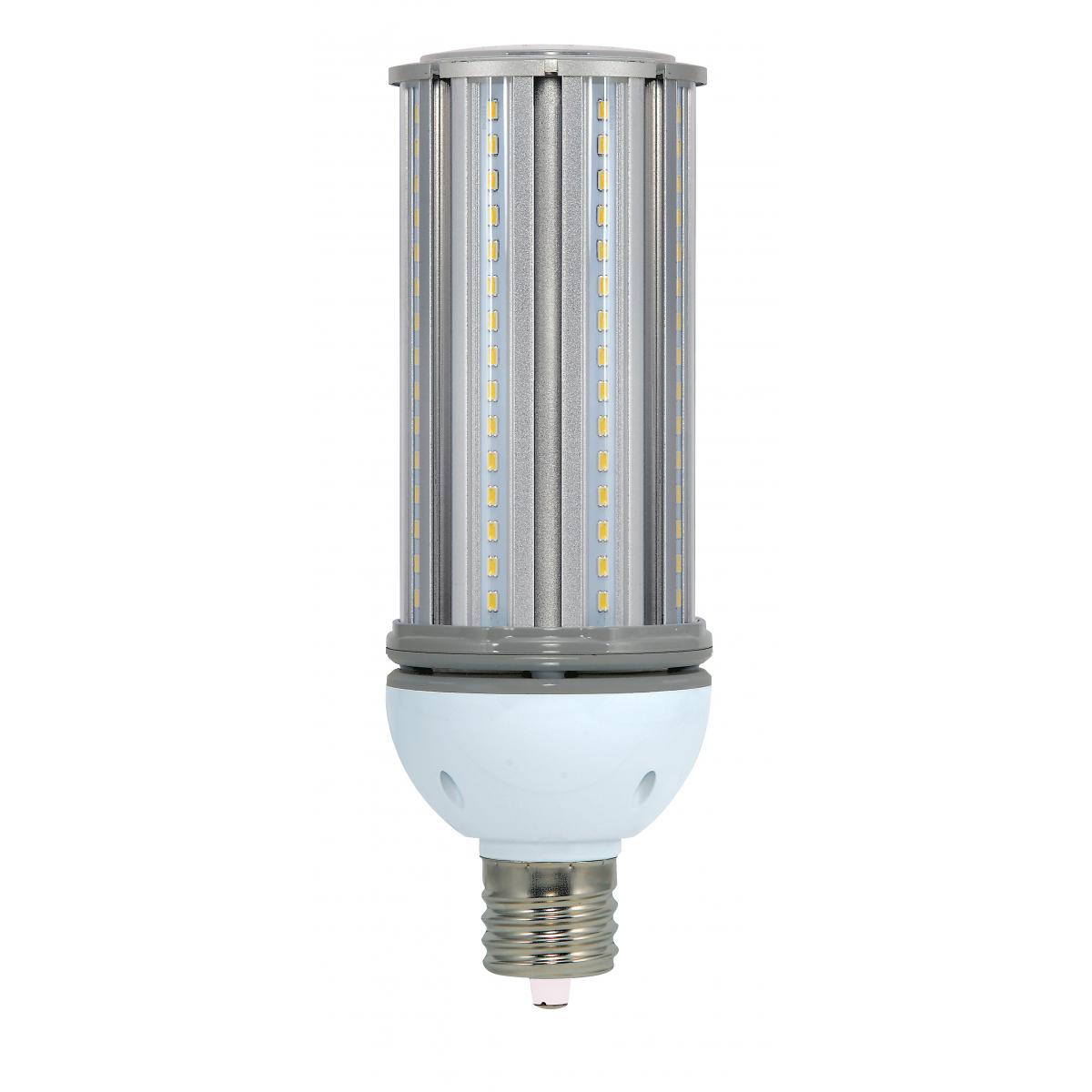

45 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-347 Volt


Lights

S28713

45W/LED/HID/5K/277-347V/EX39

45 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-347 Volt

Specifications

General
StatusDiscontinued
SubstituteS23165
Watts45W
Incandescent Equivalent300W
Fluorescent Equivalent65W
HID Equivalent175W
Volts277V-347V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens6000L
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Ballasting RequirementsBallast Bypass-Direct wire only 277-347V
Electrical
Watts45W
Incandescent Equivalent300W
Fluorescent Equivalent65W
HID Equivalent175W
Volts277V-347V
Ballasting RequirementsBallast Bypass-Direct wire only 277-347V
Working VoltageAC 250-380V
Operating Frequency50-60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens6000L
Beam Spread300
DimmableNon-Dimmable
Power Factor>0.88
Hours Rated50000
Operating PositionBase Up or Down
Thermal ManagementHi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).
Operating Temperature-20C (-4F) to +65C (+149F)
Physical
MOL10.35
MOD3.66
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Lens FinishClear
Housing ColorWhite/Grey
Weight (lb.)2.15
Additional Information
Additional InfoReplaces HID, CFL, and Incandescent; UL approved for totally enclosed fixtures; Emits no UV light / Contains no Mercury (Hg)
Min Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Installation NotesNot for use in vapor tight fixtures.
Warranty5-Years
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
DLC ApprovedNo
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923287138
Each Quantity1
Each Length (in.)4.96
Each Width (in.)4.96
Each Height (in.)11.61
Each Weight (lb.)2.64
Each Cube (CuFt.)0.1653
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923287135
Case Quantity12
Case Length (in.)15.75
Case Width (in.)10.63
Case Height (in.)24.02
Case Weight (lb.)33.95
Case Cube (CuFt.)2.3273
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
