Lights

S28716

100W/LED/HID/5K/277-347V/EX39

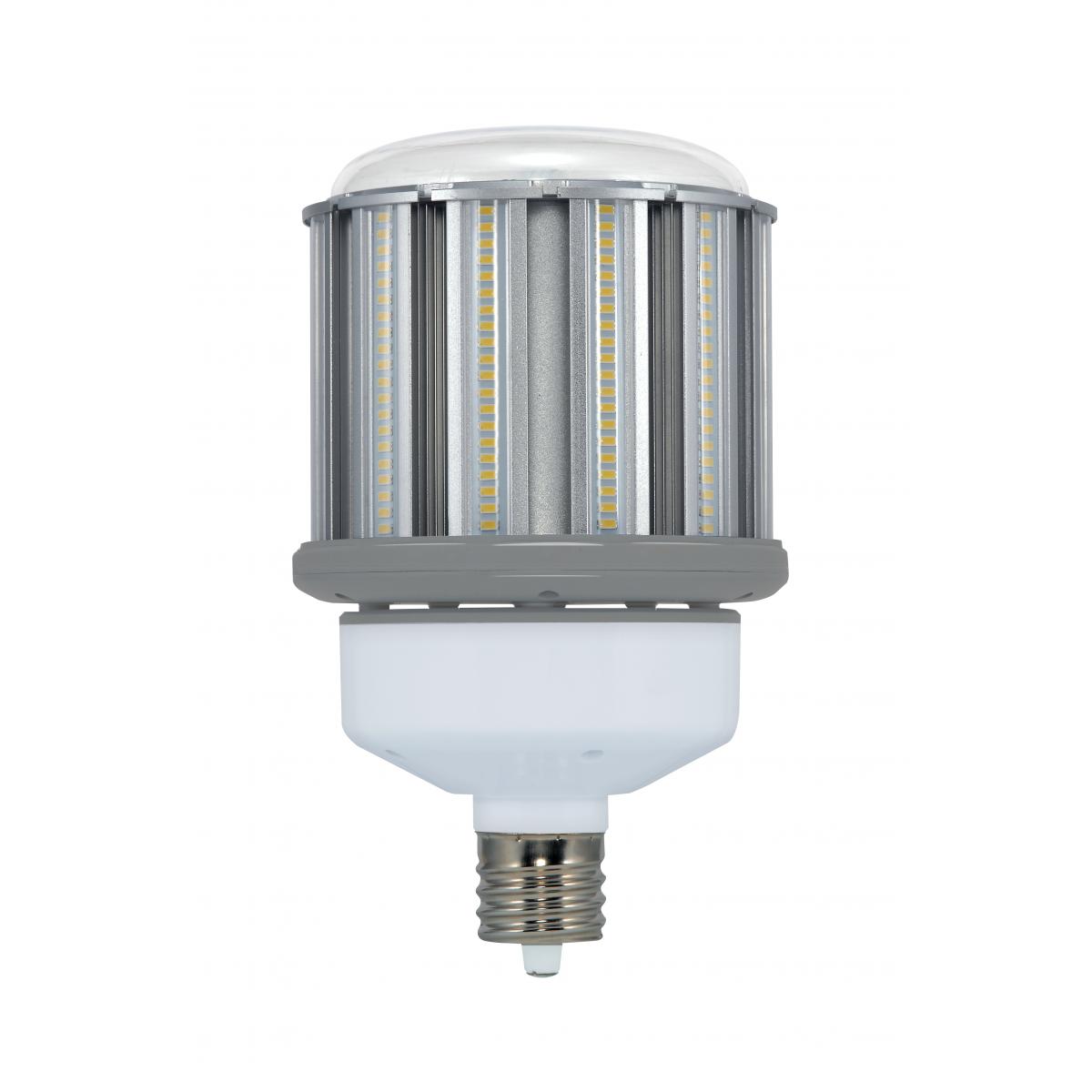

100 Watt LED HID Replacement; 5000K; Mogul extended base; 277-347 Volt

S28716 100W/LED/HID/5K/277-347V/EX39

S28716

100W/LED/HID/5K/277-347V/EX39

100 Watt LED HID Replacement; 5000K; Mogul extended base; 277-347 Volt

Specifications

General
StatusActive
Watts100
Incandescent Equivalent500
Fluorescent Equivalent150
HID Equivalent400
Volts277V-347V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+

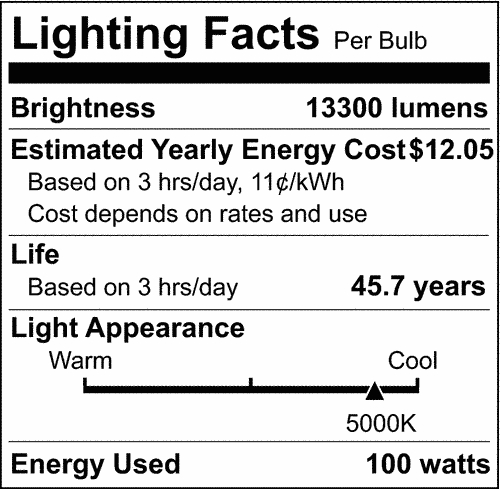

Lumens13300
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength 17.3 in. Width 9.25 in. Depth 9.25 in.
Ballasting RequirementsBallastby-pass-Directwireonly277-347V
Electrical
Watts100
Incandescent Equivalent500
Fluorescent Equivalent150
HID Equivalent400
Volts277V-347V
Ballasting RequirementsBallastby-pass-Directwireonly277-347V
Working VoltageAC 250-380V
Operating Frequency50-60 Hz
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+
Lumens13300
Beam Spread300
DimmableNon-Dimmable
Power Factor>0.88
Hours Rated50000
Burning PositionUp or Down Operation Only
Thermal ManagementHi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).I
Operating Temperature-20C (-4F) to a maximum of +65C (+149F)
Physical
MOL0
MOD0
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Lens FinishClear
Housing ColorWhite
Weight (lb.)3.6
Additional Information
Additional InfoApproved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg)
Enclosure RatingEnclosed Rated Lamp
IncludesSafety chain
Min Compartment SizeLength 17.3 in. Width 9.25 in. Depth 9.25 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLVV0A6LDCRO
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923287169
Each Quantity1
Each Length (in.)7.40
Each Width (in.)7.40
Each Height (in.)11.10
Each Weight (lb.)4.66
Each Cube (CuFt.)0.3411
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923287166
Case Quantity4
Case Length (in.)15.35
Case Width (in.)15.35
Case Height (in.)11.89
Case Weight (lb.)19.84
Case Cube (CuFt.)1.5721
