S28717

120W/LED/HID/5K/277-347V/EX39

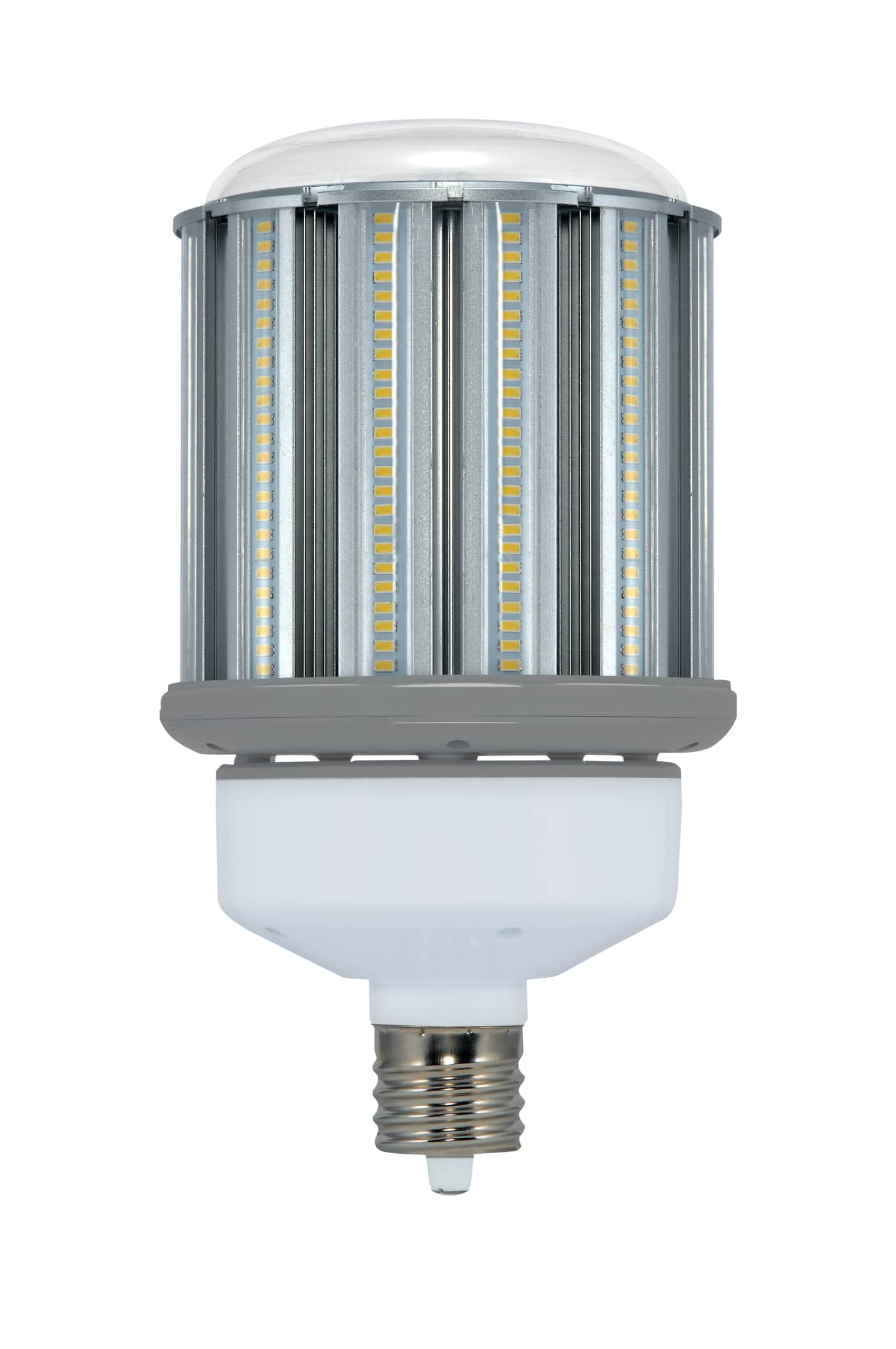

120W LED HID Replacement; 5000K; Mogul extended base; 277-347V

Lights

S28717

120W/LED/HID/5K/277-347V/EX39

120W LED HID Replacement; 5000K; Mogul extended base; 277-347V

Specifications

General
StatusActive
Watts120
Incandescent Equivalent750
Fluorescent Equivalent200
HID Equivalent600
Volts277V-347V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishUn-Lensed
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+
Lumens16000
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength 17.3 in. Width 9.25 in. Depth 9.25 in.
Ballasting RequirementsBallast by-pass - Direct wire only 277 - 347V
Electrical
Watts120
Incandescent Equivalent750
Fluorescent Equivalent200
HID Equivalent600
Volts277V-347V
Ballasting RequirementsBallast by-pass - Direct wire only 277 - 347V
Working VoltageAC 250-380V
Operating Frequency50-60 Hz
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+
Lumens16000
Beam Spread300
DimmableNon-Dimmable
Dimmable Down ToN/A
Dimming TypeN/A
Power Factor0.9
Hours Rated50000
Burning PositionUp or Down Operation Only
Thermal ManagementHi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control). I
Operating Temperature-20C (-4F) to a maximum of +40C (+104F)
Physical
MOL10.38
MOD5.88
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishUn-Lensed
Housing ColorWhite
Weight (lb.)3.9
Additional Information
Additional InfoApproved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg)
Enclosure RatingEnclosed Rated Lamp
IncludesSafety chain
Min Compartment SizeLength 17.3 in. Width 9.25 in. Depth 9.25 in.
IP RatingIP65
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDPL2RICVYUIE8;PL0GLD9J32WB
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923287176
Each Quantity1
Each Length (in.)7.40
Each Width (in.)7.40
Each Height (in.)11.89
Each Weight (lb.)4.90
Each Cube (CuFt.)0.37
Pack TypeBox
Inner UPC00000000000000
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.00
Case UPC10045923287173
Case Quantity4
Case Length (in.)15.35
Case Width (in.)15.35
Case Height (in.)12.68
Case Weight (lb.)20.61
Case Cube (CuFt.)1.68
×

Dimmer Compatibility

×

Precautions

No precautions available at this time.
