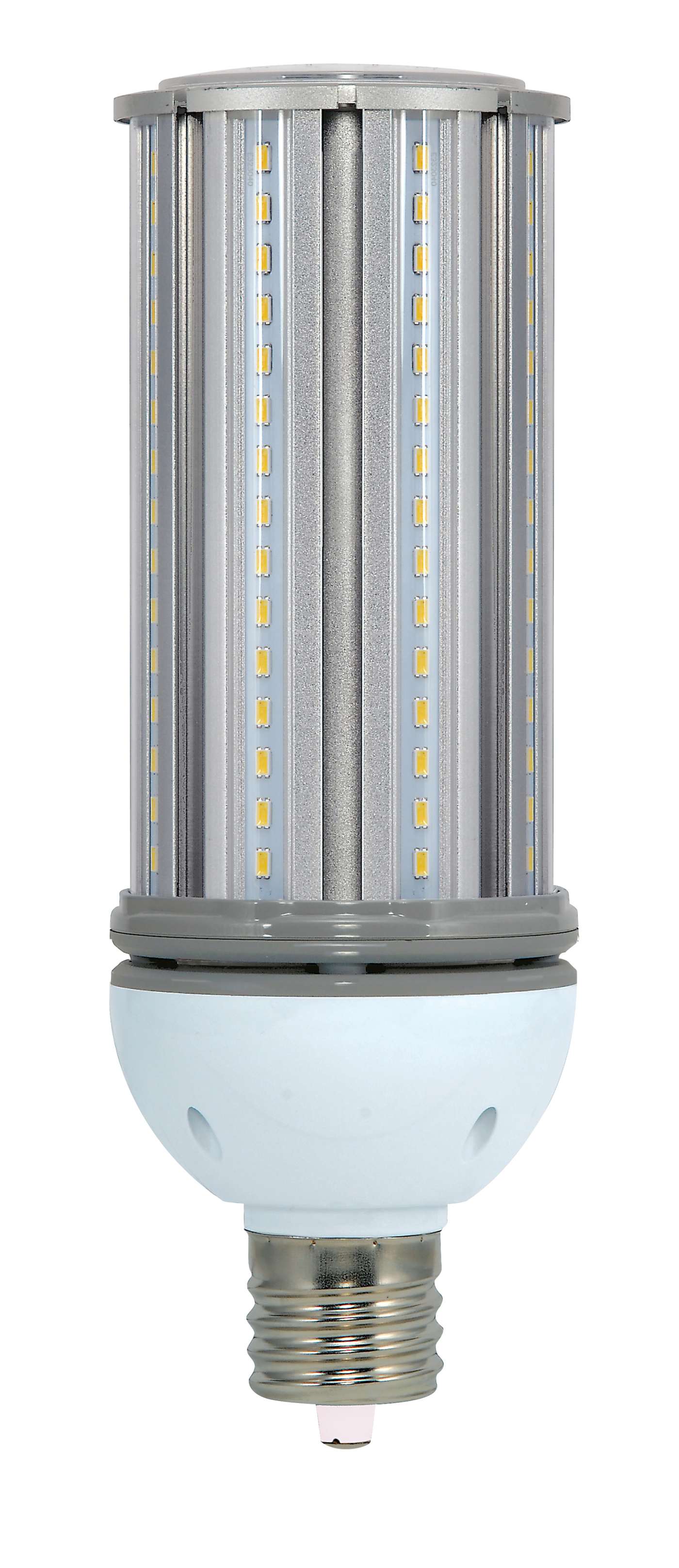

45W/LED/HID/5K/100-277V/EX39 - S29393
S29393

45W/LED/HID/5K/100-277V/EX39

Discontinued - Suggested Replacement: S49393
  • 45 Watt - LED HID Replacement
  • 5000K
  • Mogul extended base
  • 100-277 Volt
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
location_rating^wet^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29393 SpecificationsS29393 Photometrics.iesS29393 Instructions.pdf
Tools
Lighting Layout Analysis For S29393
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
45 Watt - LED HID Replacement; 5000K; Mogul extended base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Lamp FilamentLED
Fixture TypeCorncob
StatusObsolete
Most Current GenerationS49393
Working VoltageAC 90-305V
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Additional InfoReplaces HID, CFL, and Incandescent; Emits no UV light / Contains no Mercury (Hg)
Amps0.450-0.162A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Minimum Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Operating PositionBase Up or Down
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv65W
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +40C (+104F)
HID Equivalent175W

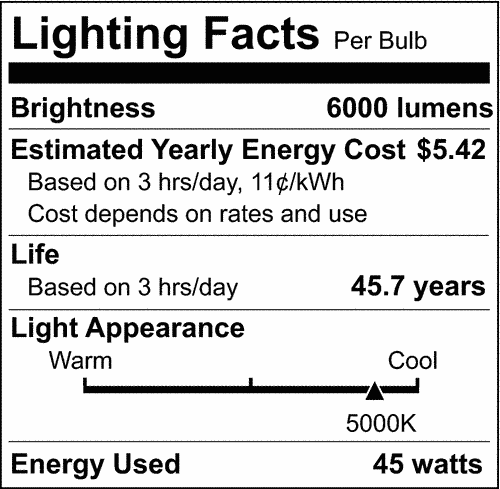

Lumens6000L
Volts120V-277V
Watts45W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhiteGrey
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps3.66
MOL10.66
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923293931
Case Cube2.3273
Case Height24.02
Case Length15.75
Case Quantity12
Case UPC10045923293938
Case Weight33.95
Case Width10.63
EA Cube0.1653
EA Height11.61
EA Length4.96
EA Quantity1
EA Weight2.64
EA Width4.96
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length10.66
Web Width3.66
