S29395

80W/LED/HID/5K/100-277V/EX39

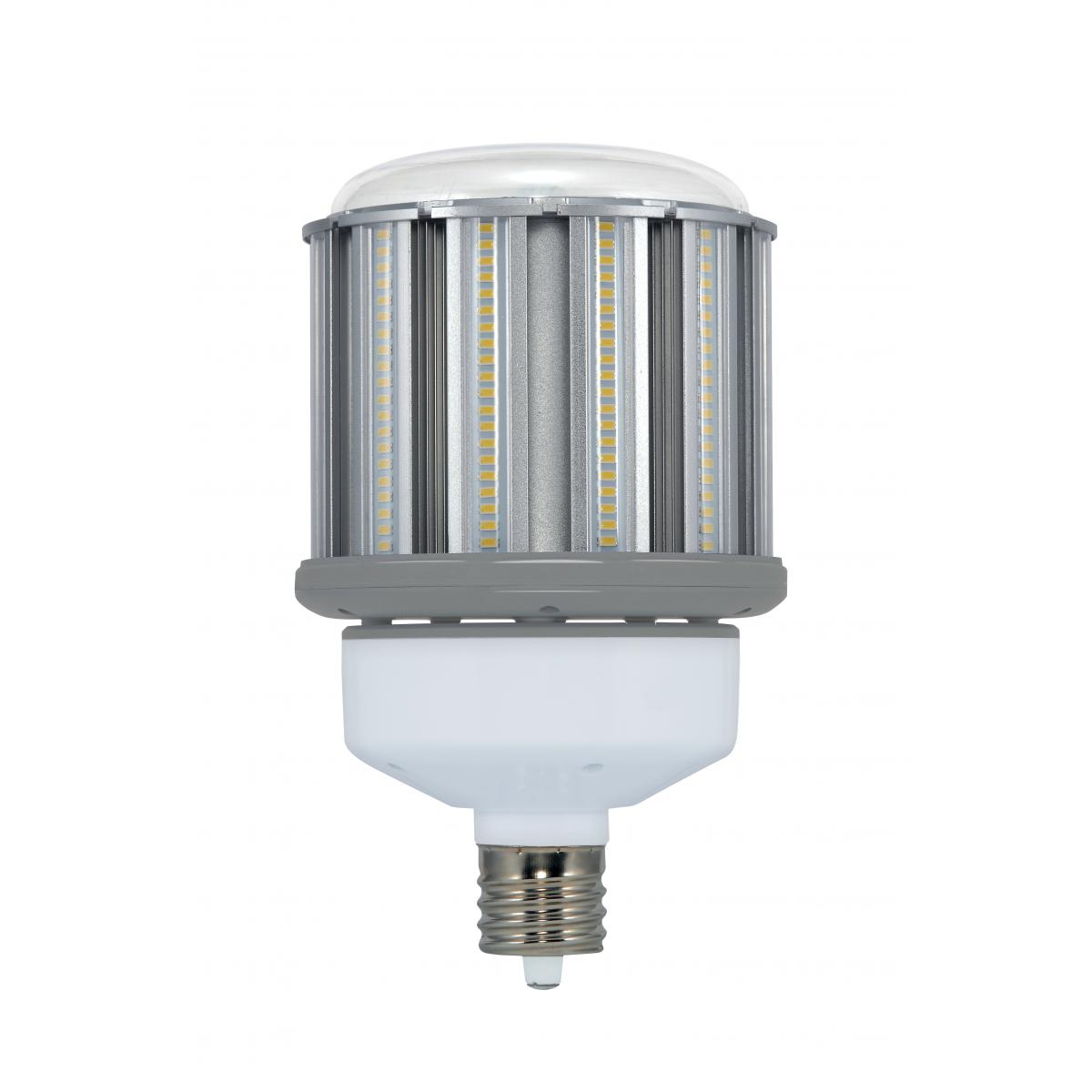

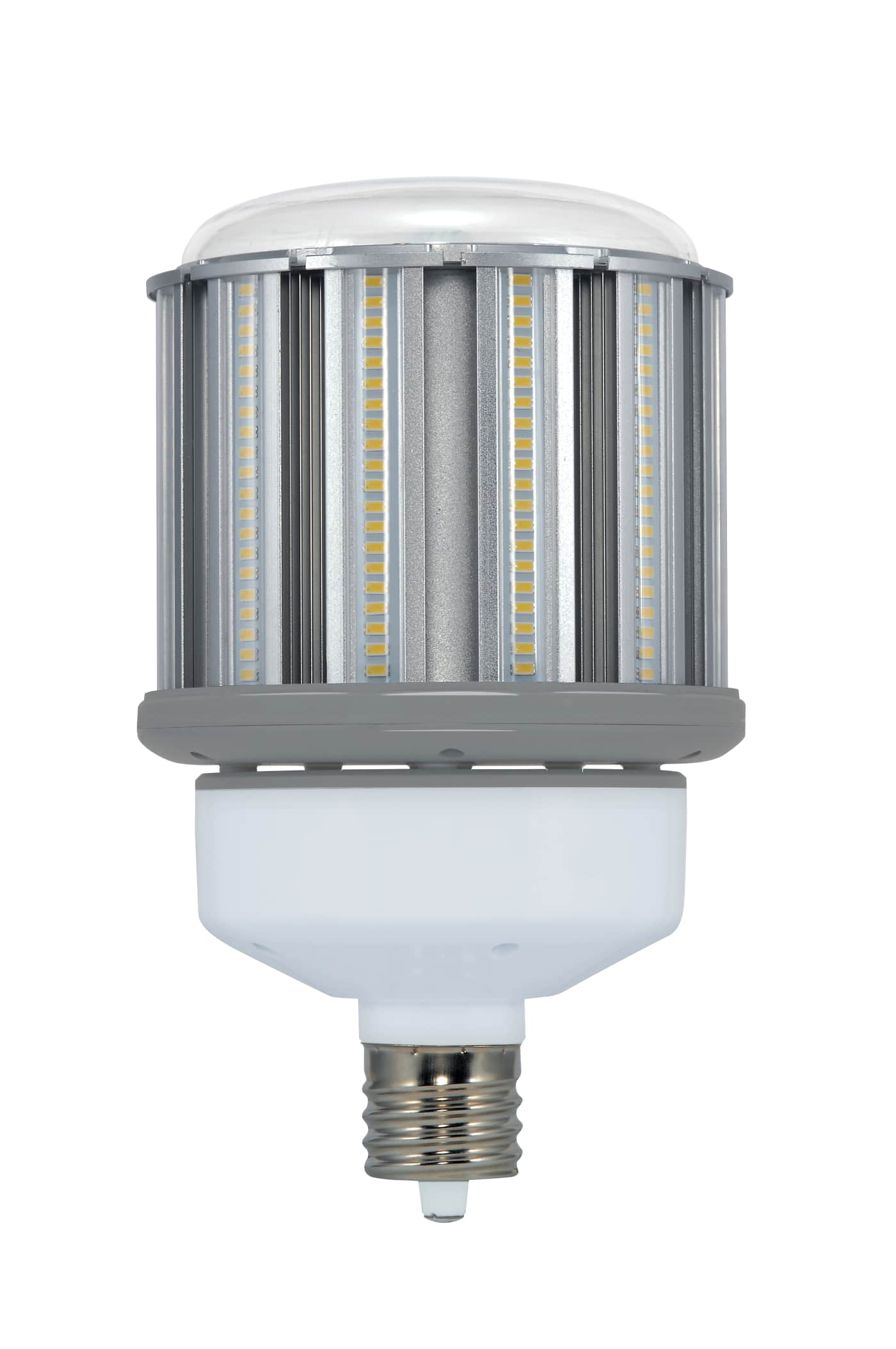

80 Watt - LED HID Replacement; 5000K; Mogul extended base; 100-277 Volt

S29395 80W/LED/HID/5K/100-277V/EX39

S29395

80W/LED/HID/5K/100-277V/EX39

80 Watt - LED HID Replacement; 5000K; Mogul extended base; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS39395
Watts80
Incandescent Equivalent400
Fluorescent Equivalent100
HID Equivalent320
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+
Lumens10640
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength 17.3 in. Width 9.25 in. Depth 9.25 in.
Ballasting RequirementsBallastby-pass-Directwireonly100-277V
Electrical
Watts80
Incandescent Equivalent400
Fluorescent Equivalent100
HID Equivalent320
Volts100V-277V
Ballasting RequirementsBallastby-pass-Directwireonly100-277V
Working VoltageAC 90-305V
Operating Frequency50-60 Hz
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+
Lumens10640
Beam Spread300
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor0.9
Hours Rated50000
Burning PositionUp or Down Operation Only
Surge ProtectionBuilt-in surge protection - 5KV
Thermal ManagementHi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).I
Operating Temperature-20C (-4F) to a maximum of +40C (+104F)
Physical
MOL0
MOD0
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Lens FinishClear
Housing ColorWhite
Weight (lb.)3.5
Additional Information
Additional InfoClassified under UL 1598C;|High Lumen Omni-directional LED for Industrial/Commercial applications;|Replaces HID, CFL, and Incandescent;|UL approved for totally enclosed fixtures;|For outdoor & indoor use;|Emits no UV light / Contains no Mercury (Hg)
Enclosure RatingEnclosed Rated Lamp
IncludesSafety chain
Min Compartment SizeLength 17.3 in. Width 9.25 in. Depth 9.25 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDPLU7PE5MD5JQ
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923293955
Each Quantity1
Each Length (in.)7.40
Each Width (in.)7.40
Each Height (in.)10.70
Each Weight (lb.)4.36
Each Cube (CuFt.)0.3288
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923293952
Case Quantity4
Case Length (in.)15.35
Case Width (in.)15.35
Case Height (in.)11.49
Case Weight (lb.)19.51
Case Cube (CuFt.)1.5192
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
