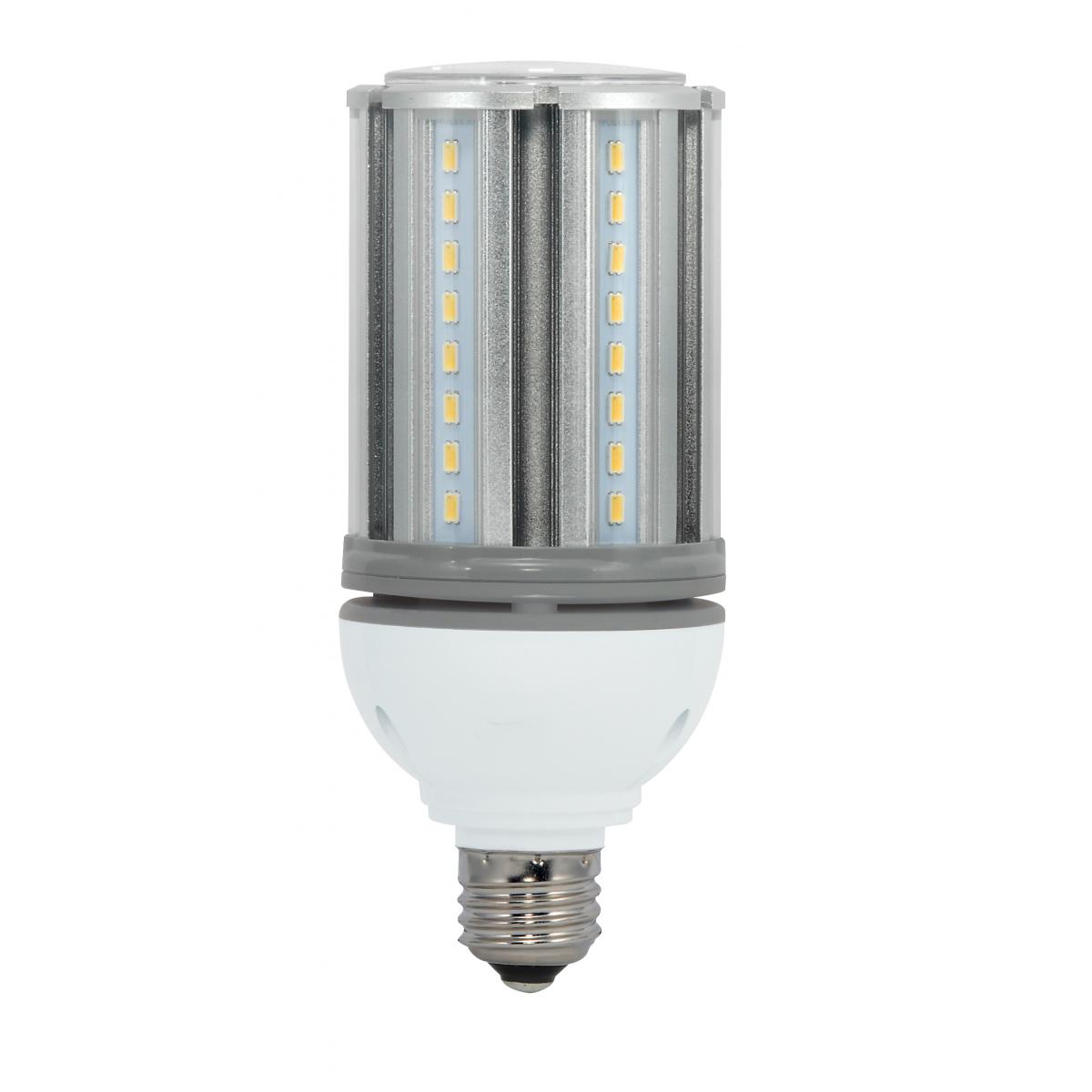

SKU S29670 - Image 1
S29670

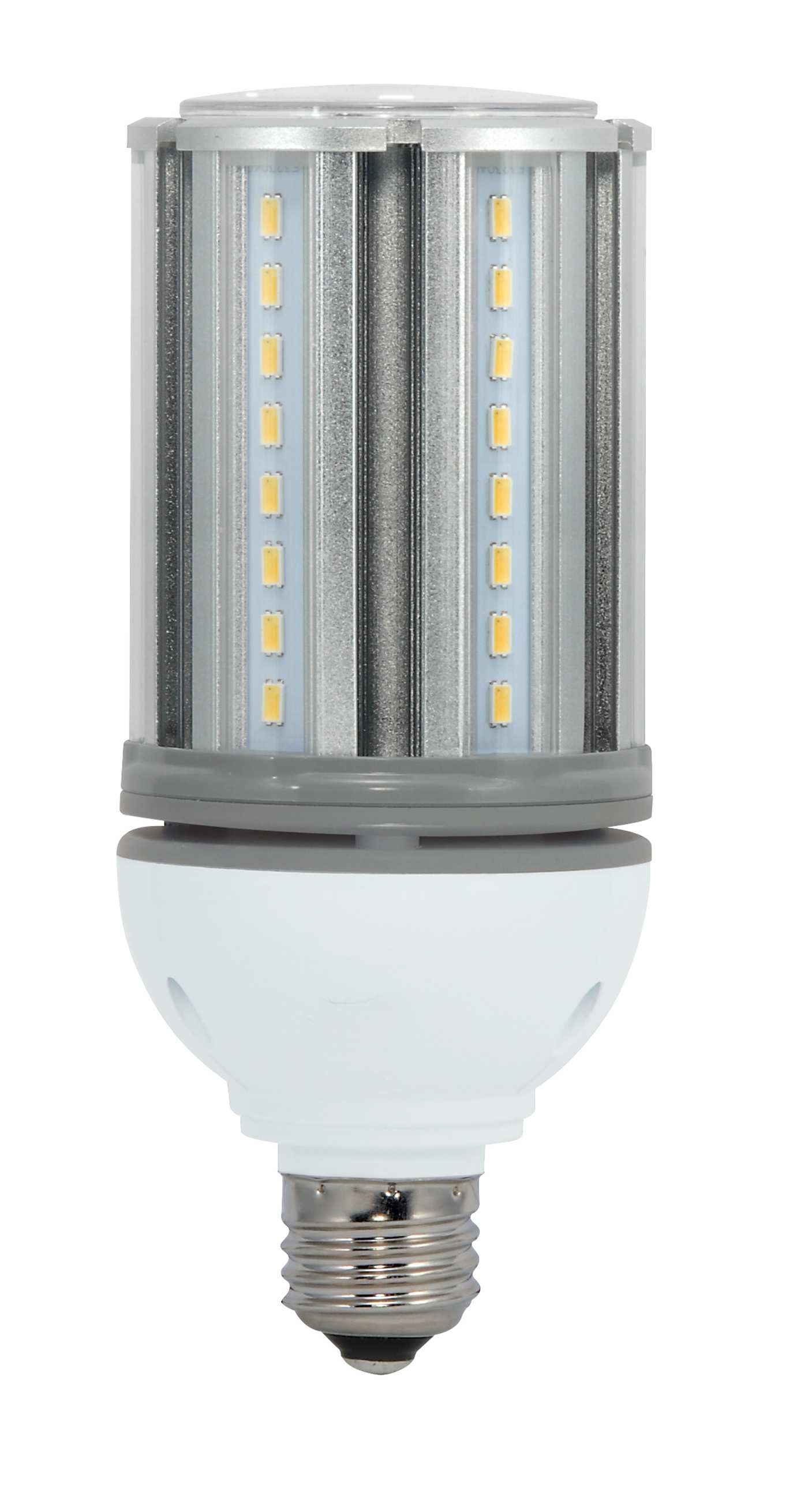

18W/LED/HID/27K/100-277V/E26

  • 18 Watt LED HID Replacement
  • 2700K
  • Medium base
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29670 SpecificationsS29670 InstructionsS29670 Instructions EnSpFr
Tools
Lighting Layout Analysis For S29670
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
18 Watt LED HID Replacement; 2700K; Medium base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
CA RegulationsNon-Compliant - <82 CRI
Lamp FilamentLED
Fixture TypeCorncob
StatusObsolete
Most Current GenerationS49670
Working VoltageAC 90-305V
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.180-0.065A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Minimum Compartment SizeLength: 8.5 in. Width: 6 in. Depth: 6 in.
Operating PositionUniversal
Power Factor>.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent120W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempWarm White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +40C (+104F)
HID Equivalent70W
Lumens2200L
Volts120V-277V
Watts18W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhiteGrey
ANSI BaseE26
Lamp TypeCorncob
MOD Lamps2.75
MOL6.78
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
IP RatingIP65
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923296703
Case Cube1.8843
Case Height18.5
Case Length15.16
Case Quantity24
Case UPC10045923296700
Case Weight29.0
Case Width11.61
EA Cube0.051
EA Height7.71
EA Length3.38
EA Quantity1
EA Weight1.04
EA Width3.38
Inner Cube0.7733
Inner Height8.5
Inner Length14.37
Inner Quantity12
Inner UPC20045923296707
Inner Weight13.56
Inner Width10.94
Pack TypeBox
Web Length6.78
Web Width2.75
