SKU S29671 - Image 1
S29671

22W/LED/HID/27K/100-277V/E26

Discontinued - Suggested Replacement: S49671
  • 22 Watt LED HID Replacement
  • 2700K
  • Medium base
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29671 SpecificationsS29671 InstructionsS29671 Instructions EnSpFr
Tools
Lighting Layout Analysis For S29671
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

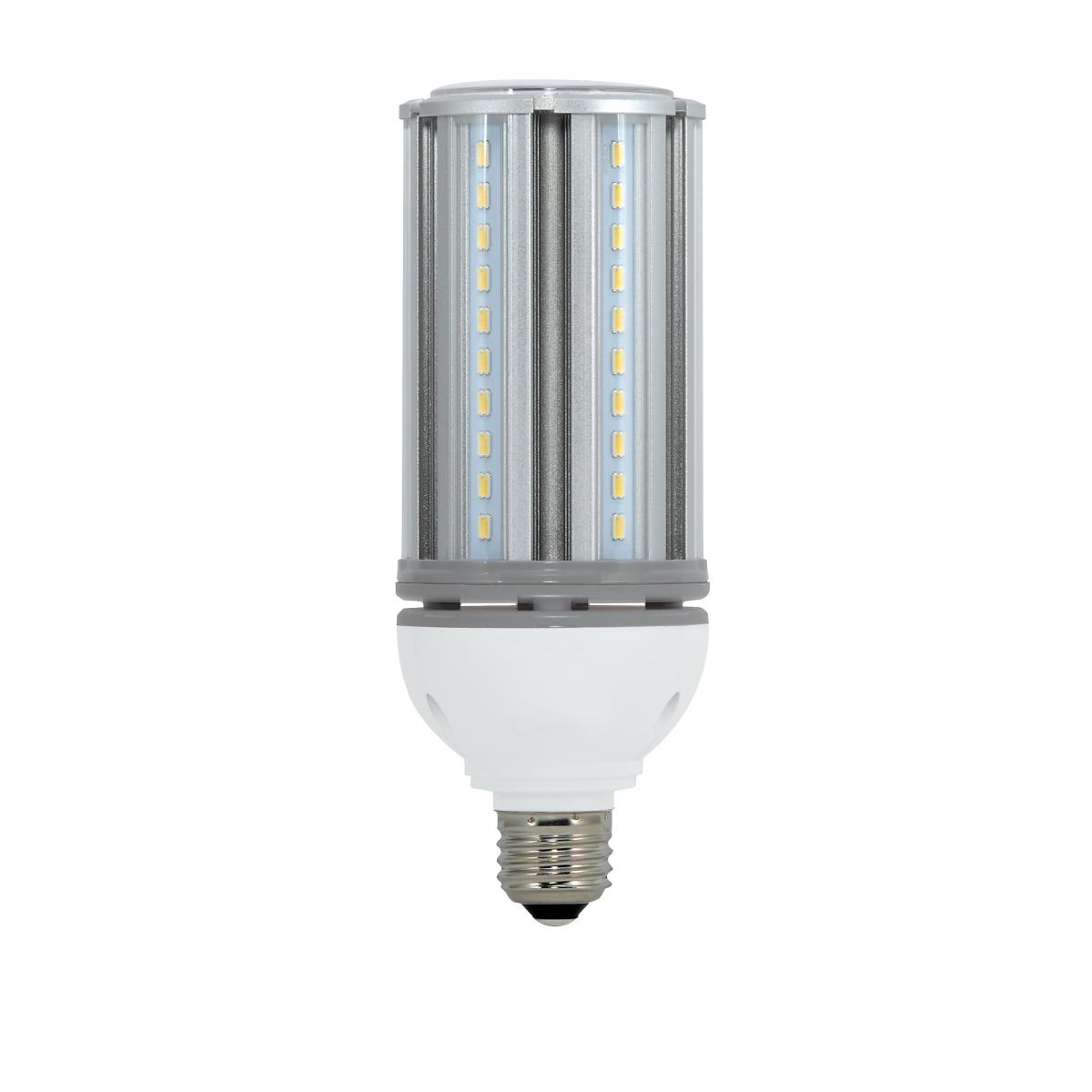

22 Watt LED HID Replacement; 2700K; Medium base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Lamp FilamentLED
Fixture TypeCorncob
StatusDiscontinued
Most Current GenerationS49671
Working VoltageAC 90-305V
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.220-0.079A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Minimum Compartment SizeLength: 8.5 in. Width: 6 in. Depth: 6 in.
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv40W
Incandescent Equivalent150W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempWarm White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +40C (+104F)
HID Equivalent100W

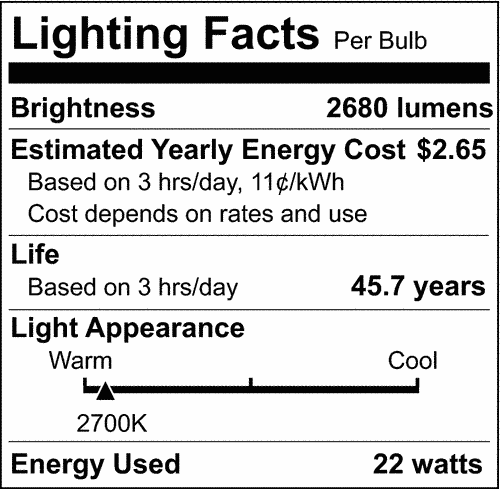

Lumens2680L
Volts120V-277V
Watts22W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhiteGrey
ANSI BaseE26
Lamp TypeCorncob
MOD Lamps2.75
MOL7.56
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsExempt - >2600 Lumens
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
IP RatingIP65
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923296710
Case Cube2.0453
Case Height20.08
Case Length15.16
Case Quantity24
Case UPC10045923296717
Case Weight31.3
Case Width11.61
EA Cube0.0558
EA Height8.44
EA Length3.38
EA Quantity1
EA Weight1.15
EA Width3.38
Inner Cube0.7733
Inner Height8.5
Inner Length14.37
Inner Quantity12
Inner UPC20045923296714
Inner Weight14.62
Inner Width10.94
Pack TypeBox
Web Length7.56
Web Width2.75
