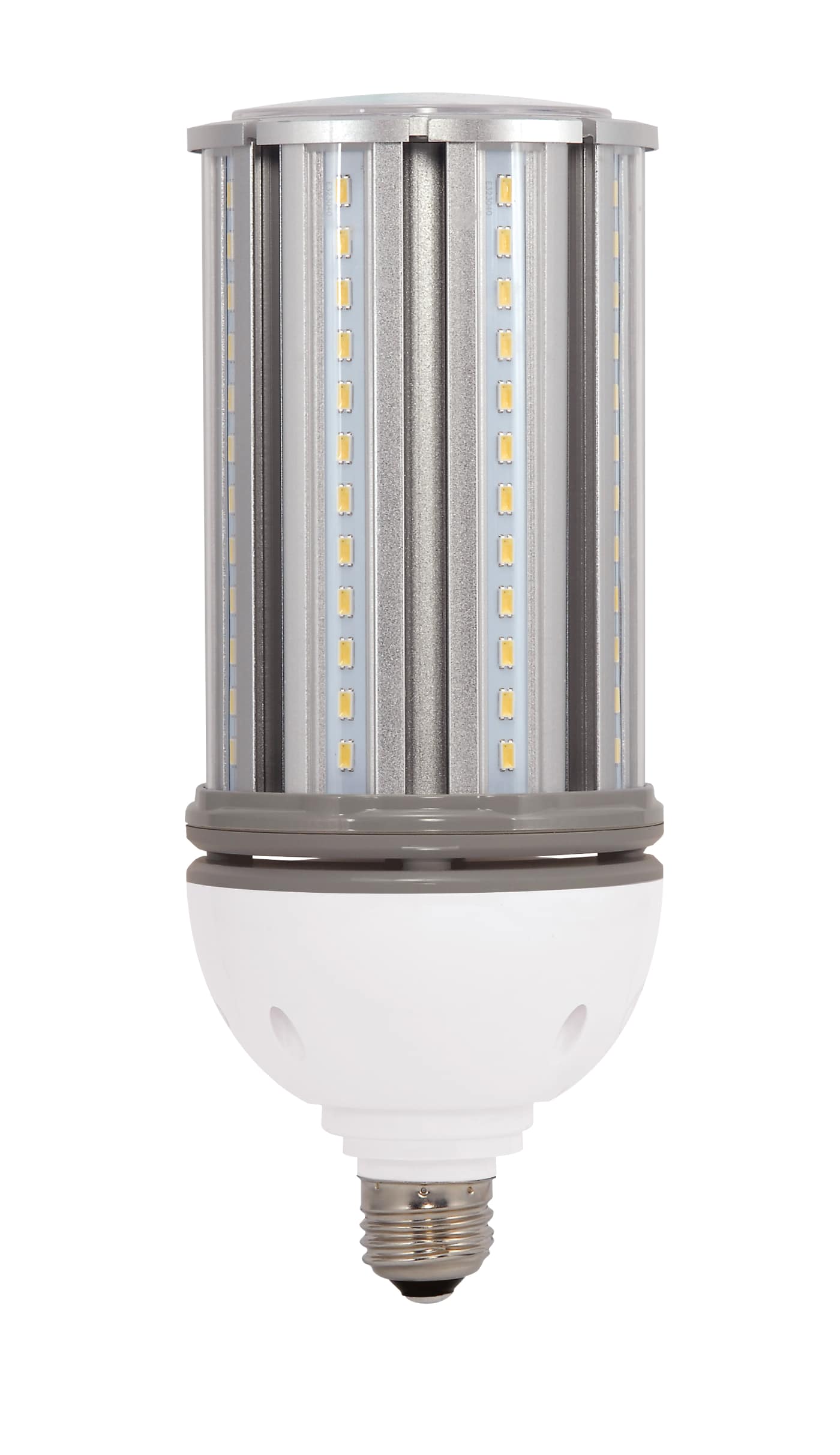

I08L1ED/HID/27K/100-277V/E26 - S29672
S29672

I08L1ED/HID/27K/100-277V/E26

Discontinued - Suggested Replacement: S49672
  • 36 Watt LED HID Replacement
  • 2700K
  • Medium base
  • 100-277 Volt
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
location_rating^wet^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

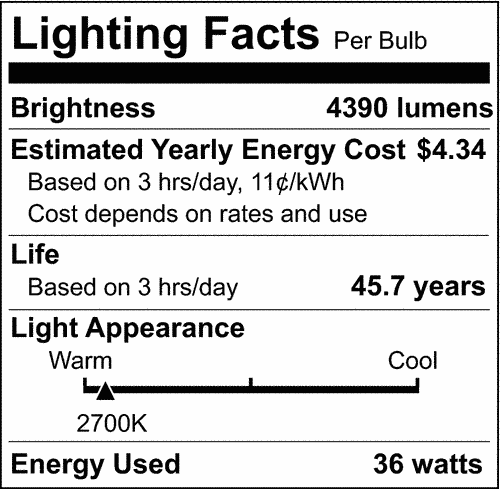

S29672 SpecificationsS29672 Photometrics.iesS29672 Instructions.pdfS29672 Lighting Facts Label
Tools
Lighting Layout Analysis For S29672
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
36 Watt LED HID Replacement; 2700K; Medium base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Lamp FilamentLED
Fixture TypeCorncob
StatusObsolete
Working VoltageAC 90-305V
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Amps0.360-0.130A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Minimum Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Operating PositionUniversal
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv55W
Incandescent Equivalent200W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempWarm White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +40C (+104F)
HID Equivalent150W
Lumens4390L
Volts120V-277V
Watts36W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhiteGrey
ANSI BaseE26
Lamp TypeCorncob
MOD Lamps3.66
MOL9.16
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923296727
Case Cube2.0976
Case Height21.65
Case Length15.75
Case Quantity12
Case UPC10045923296724
Case Weight28.92
Case Width10.63
EA Cube0.1485
EA Height10.43
EA Length4.96
EA Quantity1
EA Weight2.3
EA Width4.96
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length9.16
Web Width3.66
