SKU S29674 - Image 1
S29674

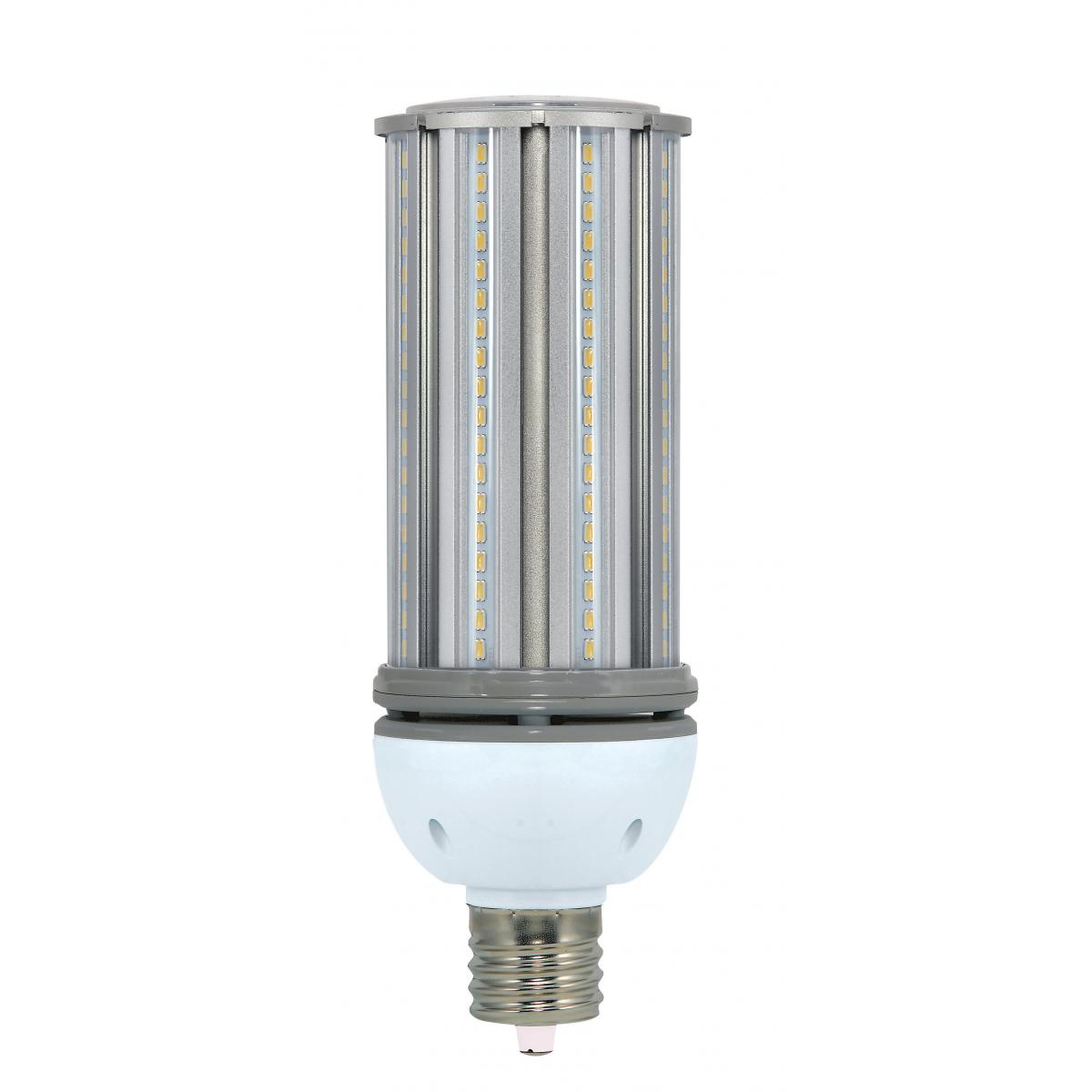

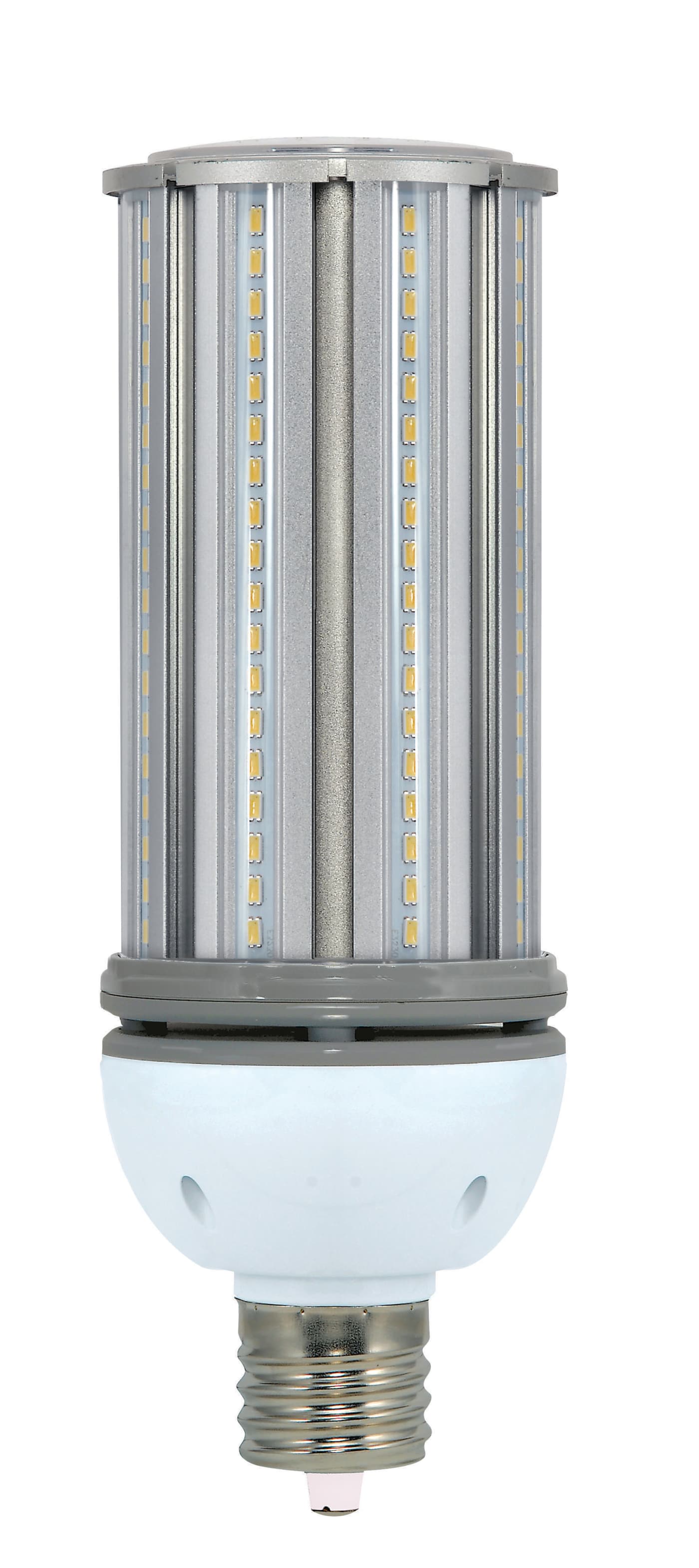

54W/LED/HID/40K/100-277V/EX39

  • 54 Watt LED HID Replacement
  • 4000K
  • Mogul extended base
  • 100-277 Volt
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
location_rating^wet^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29674 SpecificationsS29674 InstructionsS29674 Instructions EnSpFr
Tools
Lighting Layout Analysis For S29674
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
54 Watt LED HID Replacement; 4000K; Mogul extended base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
CA RegulationsExempt - Base Not Regulated
Lamp FilamentLED
Fixture TypeCorncob
StatusDiscontinued
Most Current GenerationS49674
Working VoltageAC 90-305V
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.540-0.195A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Minimum Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Operating PositionBase Up or Down
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv85W
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +40C (+104F)
HID Equivalent250W

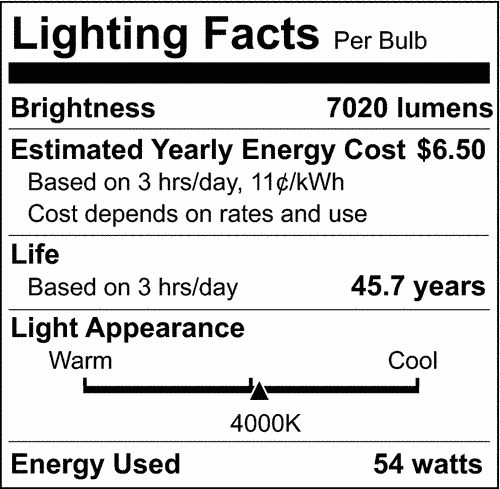

Lumens7020L
Volts120V-277V
Watts54W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhiteGrey
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps3.66
MOL10.66
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
IP RatingIP65
Location RatingWet
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923296741
Case Cube2.3273
Case Height24.02
Case Length15.75
Case Quantity12
Case UPC10045923296748
Case Weight33.95
Case Width10.63
EA Cube0.1653
EA Height11.61
EA Length4.96
EA Quantity1
EA Weight2.64
EA Width4.96
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length10.66
Web Width3.66
