Discontinued – Suggested Replacement: S49675

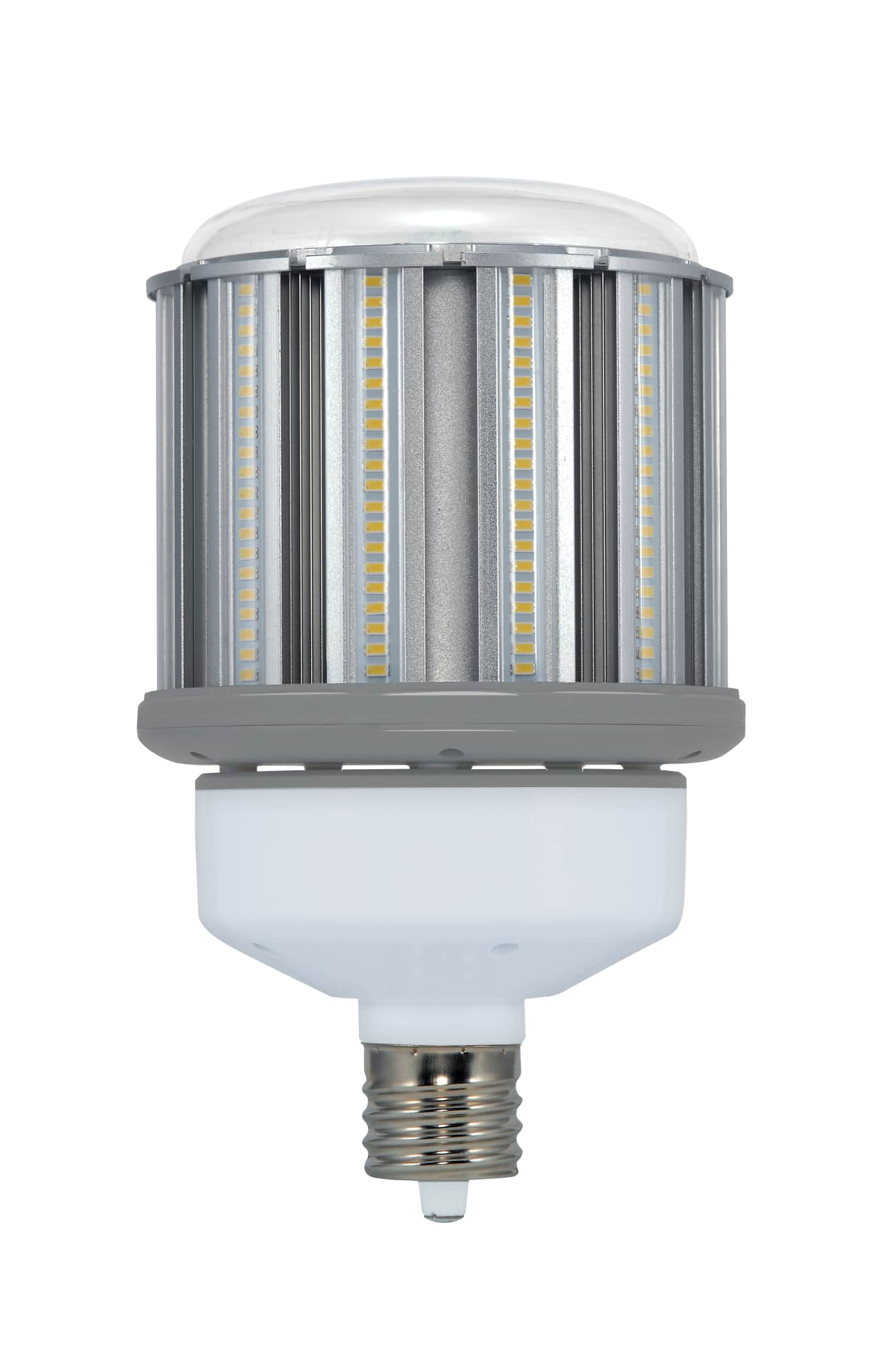

S29675 80W/LED/HID/40K/100-277V/EX39

S29675

80W/LED/HID/40K/100-277V/EX39

80 Watt LED HID Replacement; 4000K; Mogul extended base; 100-277 Volt


Lights

S29675

80W/LED/HID/40K/100-277V/EX39

80 Watt LED HID Replacement; 4000K; Mogul extended base; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS49675
Watts80W
Incandescent Equivalent400W
Fluorescent Equivalent100W
HID Equivalent320W
Volts120V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)4000K
TemperatureCool White
CRI80+
Lumens10400L
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Electrical
Watts80W
Incandescent Equivalent400W
Fluorescent Equivalent100W
HID Equivalent320W
Volts120V-277V
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Working VoltageAC 90-305V
Operating Frequency50-60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI80+
Lumens10400L
Beam Spread300
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating PositionBase Up or Down
Surge ProtectionBuilt-in surge protection - 5KV
Thermal ManagementHi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).
Operating Temperature-20C (-4F) to +40C (+104F)
Physical
MOL9.63
MOD5.87
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Lens FinishClear
Housing ColorWhite/Grey
Weight (lb.)3.5
Additional Information
IncludesSafety chain
Min Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Installation NotesNot for use in vapor tight fixtures.
Warranty5-Years
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingWet
DLC ApprovedNo
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923296758
Each Quantity1
Each Length (in.)7.40
Each Width (in.)7.40
Each Height (in.)10.70
Each Weight (lb.)4.36
Each Cube (CuFt.)0.3391
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923296755
Case Quantity4
Case Length (in.)15.35
Case Width (in.)15.35
Case Height (in.)11.49
Case Weight (lb.)19.51
Case Cube (CuFt.)1.5667
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
