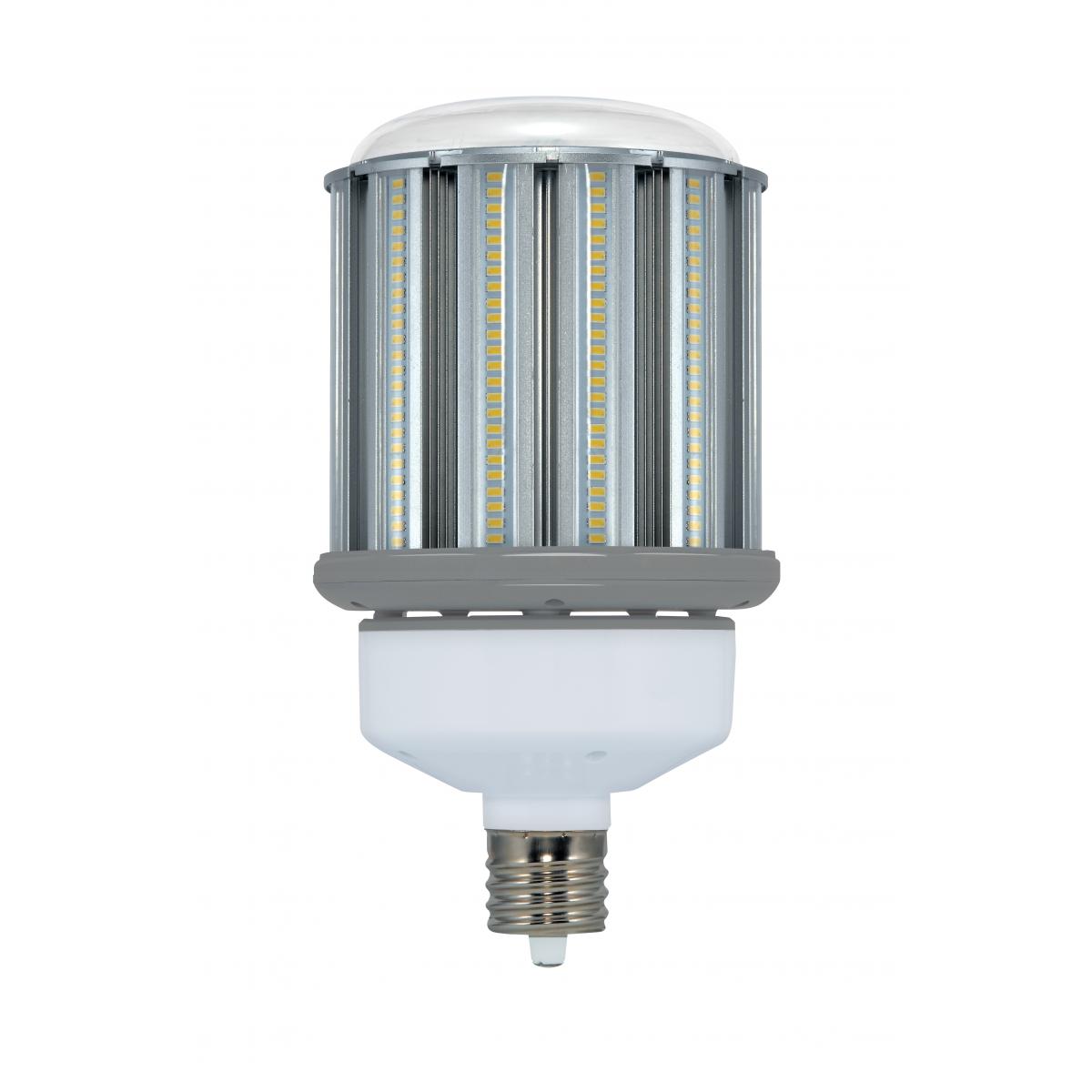

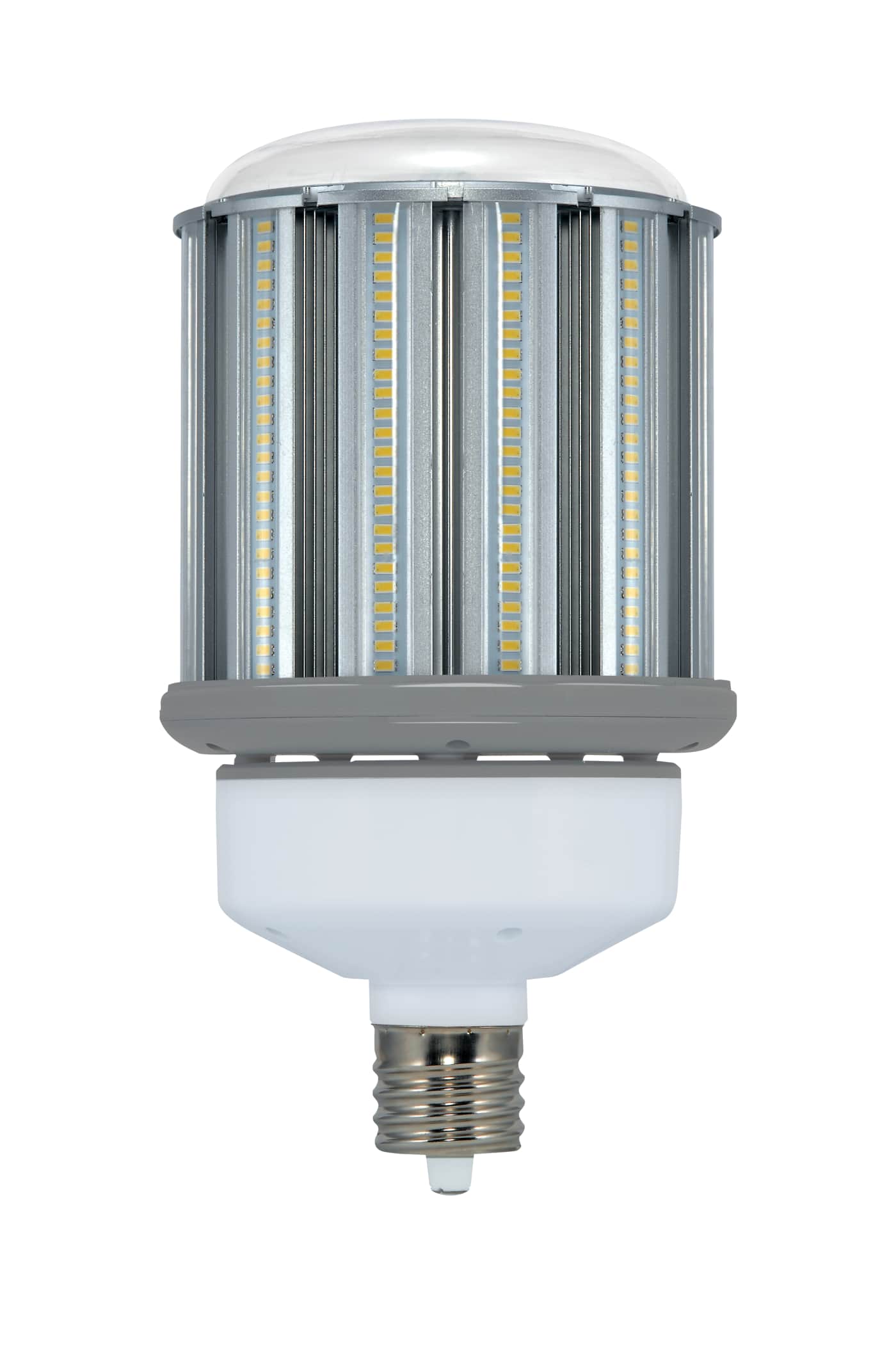

120W/LED/HID/40K/100-277V/EX39 - S29677
S29677

120W/LED/HID/40K/100-277V/EX39

Discontinued - Suggested Replacement: S49677
  • 120 Watt LED HID Replacement
  • 4000K
  • Mogul extended base
  • 100-277 Volt
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
location_rating^wet^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S29677 SpecificationsS29677 Photometrics.iesS29677 Instructions.pdf
Tools
Lighting Layout Analysis For S29677
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
120 Watt LED HID Replacement; 4000K; Mogul extended base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Lamp FilamentLED
Fixture TypeCorncob
IncludesSafety chain
StatusDiscontinued
Surge ProtectionBuilt-in surge protection - 5KV
Thermal ManagementHi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).
Working VoltageAC 90-305V
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Amps1.200-0.433A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Minimum Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Operating PositionBase Up or Down
Power Factor0.96
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv200W
Incandescent Equivalent750W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempCool White
CRI80+
Operating Frequency50-60Hz
Operating Temp-20C (-4F) to +40C (+104F)
HID Equivalent600W

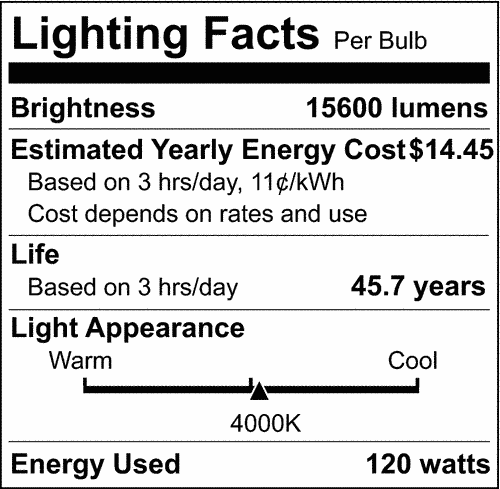

Lumens15600L
Volts120V-277V
Watts120W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhiteGrey
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps5.88
MOL10.38
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923296772
Case Cube1.729
Case Height12.68
Case Length15.35
Case Quantity4
Case UPC10045923296779
Case Weight20.61
Case Width15.35
EA Cube0.3933
EA Height11.89
EA Length7.56
EA Quantity1
EA Weight4.9
EA Width7.56
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length10.38
Web Width5.88
