Lights

S29719

25T5/LED/46-850/BP/HO/120-277V

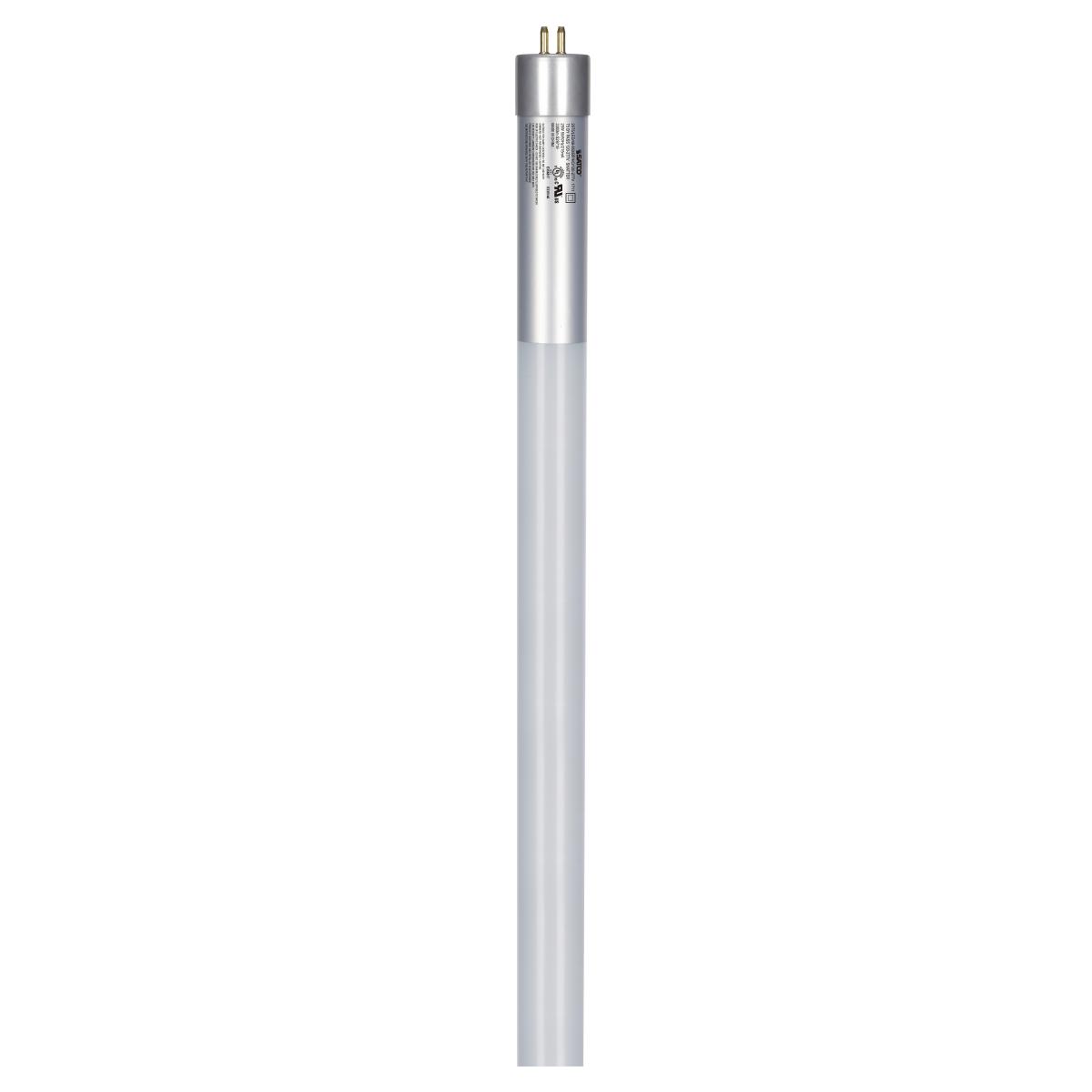

25W T5 LED; Miniature bi-pin base; 5000K; 50000 Average rated hours; 3300 Lumens; 120-277V; Type B; Ballast Bypass; Single Ended Wiring

Lights

S29719

25T5/LED/46-850/BP/HO/120-277V

25W T5 LED; Miniature bi-pin base; 5000K; 50000 Average rated hours; 3300 Lumens; 120-277V; Type B; Ballast Bypass; Single Ended Wiring

Specifications

General
StatusActive
Watts25
Volts120V-277V
Ballast TypeType B
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length48
FinishFrosted
CCT (Kelvin)5000
TemperatureNatural Light
CRI83
Lumens3400
Beam Spread240
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts25
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)5000
TemperatureNatural Light
CRI83
Lumens3400
Beam Spread240
DimmableNon-Dimmable
Dimmable Down ToN/A
Dimming TypeN/A
Power Factor0.95
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL48
MOD0.88
Nominal Length48
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrosted
Housing ColorSilver
Additional Information
Shatter-Proof TypeYes
Warranty5 Year Limited - T5 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus Classified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPL8CM6Z2E2SZ
CEC StatusLawful for sale in California
RoHS CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923297199
Each Quantity1
Each Length (in.)45.80
Each Width (in.)0.80
Each Height (in.)0.80
Each Weight (lb.)0.40
Each Cube (CuFt.)0.02
Pack TypeSleeve
Inner UPC00000000000000
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.00
Case UPC10045923297196
Case Quantity25
Case Length (in.)48.10
Case Width (in.)5.20
Case Height (in.)5.20
Case Weight (lb.)12.90
Case Cube (CuFt.)0.73
×

Dimmer Compatibility

×

Precautions

No precautions available at this time.
