Lights

S29750

30W/LED/HID/MB/5000K/100-277V

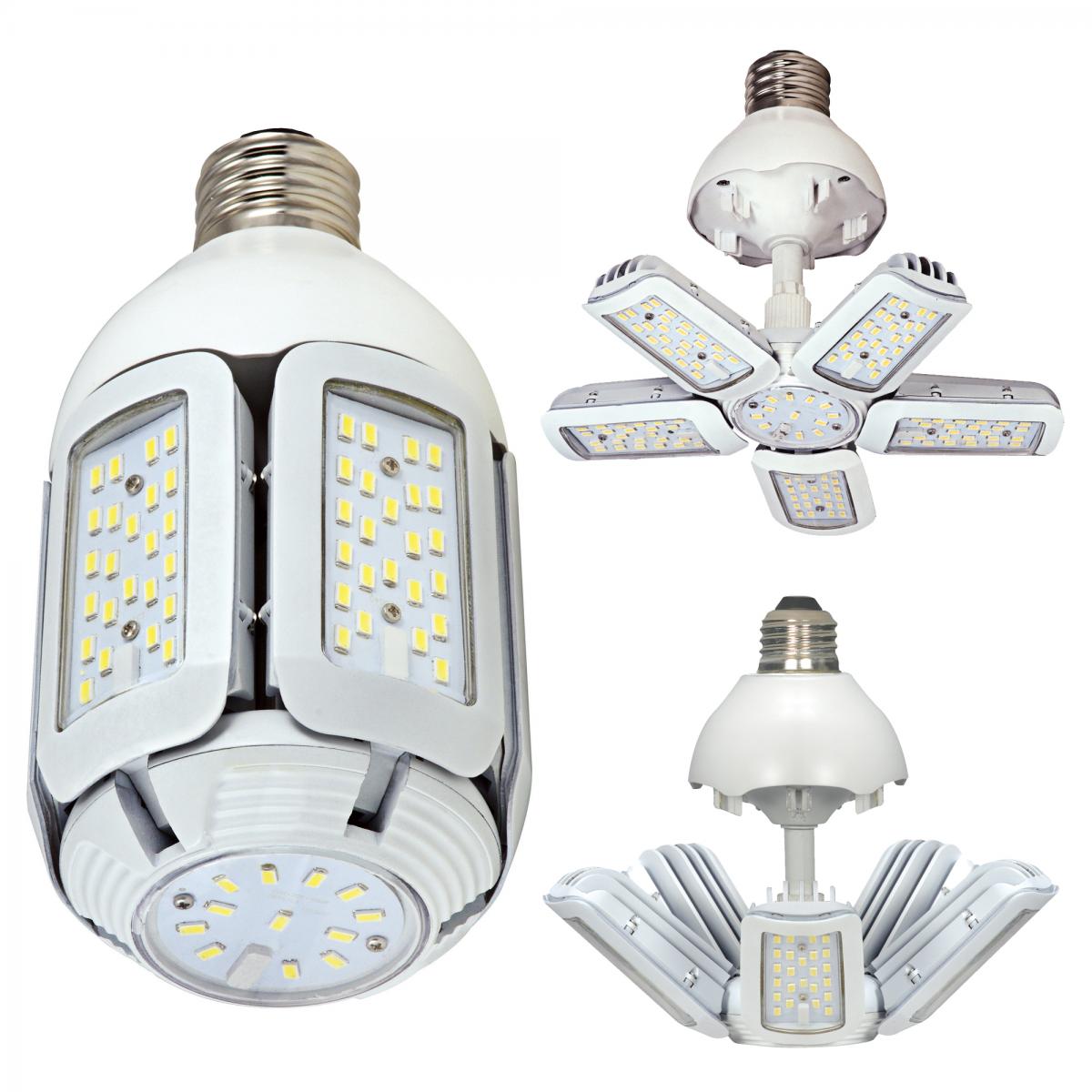

30 Watt LED HID Replacement; 5000K; Medium base; Adjustable beam angle; 100-277 Volt

S29750 30W/LED/HID/MB/5000K/100-277V

S29750

30W/LED/HID/MB/5000K/100-277V

30 Watt LED HID Replacement; 5000K; Medium base; Adjustable beam angle; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS39750
Watts30
Incandescent Equivalent200
Fluorescent Equivalent55
HID Equivalent150
Volts100V-277V
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+
Lumens3900
Beam Spread360
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength 11 in. Width 8 in. Depth 8 in.
Ballasting RequirementsDirectwirerangevoltage100-277V
Electrical
Watts30
Incandescent Equivalent200
Fluorescent Equivalent55
HID Equivalent150
Volts100V-277V
Ballasting RequirementsDirectwirerangevoltage100-277V
Operating Frequency50/60 Hz
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+
Lumens3900
Beam Spread360
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor>0.9
Hours Rated50000
Burning PositionUp or Down Operation Only
Surge ProtectionBuilt-in surge protection - 2KV
Operating Temperature-25C (-13F) to a maximum of +45C (+113F)
Physical
MOL6.38
MOD3.19
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
Housing ColorWhite
Weight (lb.)1.37
Additional Information
Additional InfoWidth 360 deg 3.2 in.; Width 270 deg 6.8 in.; Width 180 deg 7.7 in.
Enclosure RatingEnclosed Rated Lamp
Min Compartment SizeLength 11 in. Width 8 in. Depth 8 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923297502
Each Quantity1
Each Length (in.)4.17
Each Width (in.)4.17
Each Height (in.)7.60
Each Weight (lb.)1.45
Each Cube (CuFt.)0.0742
Pack TypeBox
Inner UPC20045923297506
Inner Quantity6
Inner Length (in.)13.07
Inner Width (in.)8.86
Inner Height (in.)8.30
Inner Weight (lb.)9.92
Inner Cube (CuFt.)0.5394
Case UPC10045923297509
Case Quantity24
Case Length (in.)18.30
Case Width (in.)13.58
Case Height (in.)18.11
Case Weight (lb.)40.79
Case Cube (CuFt.)2.5256
