Lights

S29752

60W/LED/HID/MB/5000K/100-277V

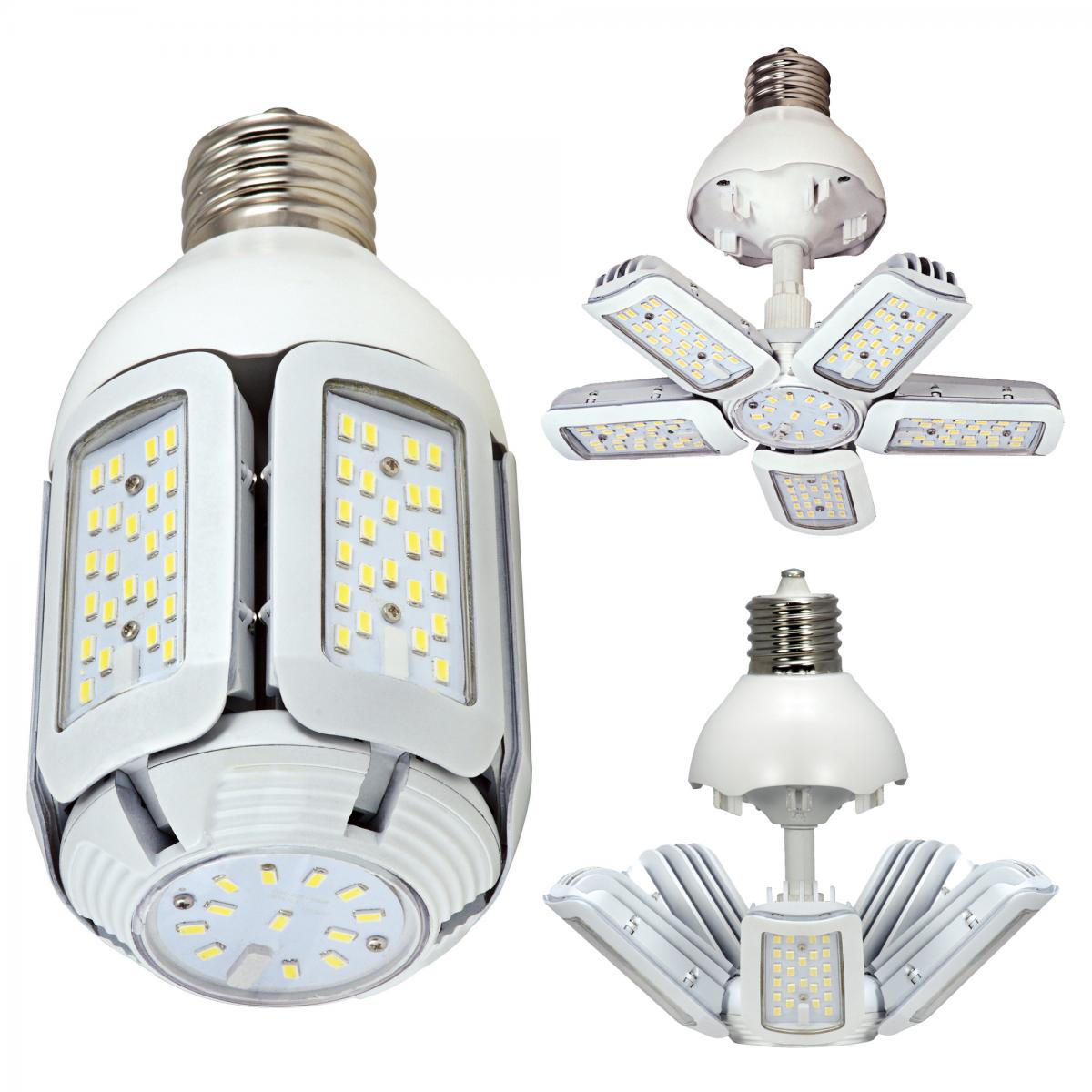

60W LED HID Replacement; 5000K; Mogul extended base; Adjustable beam angle; 100-277V

Lights

S29752

60W/LED/HID/MB/5000K/100-277V

60W LED HID Replacement; 5000K; Mogul extended base; Adjustable beam angle; 100-277V

Specifications

General
StatusActive
Watts60
Incandescent Equivalent500
Fluorescent Equivalent85
HID Equivalent250
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+
Lumens7800
Beam Spread360
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength 8.27 in. Width 9.25 in. Depth 9.25 in.
Ballasting RequirementsDirect wire range voltage 100-277V
Electrical
Watts60
Incandescent Equivalent500
Fluorescent Equivalent85
HID Equivalent250
Volts100V-277V
Ballasting RequirementsDirect wire range voltage 100-277V
Operating Frequency50/60Hz
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+
Lumens7800
Beam Spread360
DimmableNon-Dimmable
Dimmable Down ToN/A
Dimming TypeN/A
Power Factor0.9
Hours Rated50000
Burning PositionUp or Down Operation Only
Surge ProtectionBuilt-in surge protection - 2.5KV
Operating Temperature-20C (-4F) to a maximum of +40C (+104F)
Physical
MOL8.56
MOD3.81
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Housing ColorWhite
Weight2.05
Additional Information
Additional InfoWidth 360 deg 3.8 in.; Width 270 deg 8.2 in.; Width 180 deg 9.3 in. Approved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg)
Enclosure RatingEnclosed Rated Lamp
Min Compartment SizeLength 8.27 in. Width 9.25 in. Depth 9.25 in.
IP RatingIP65
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Wet
Energy StarNo
DLC ApprovedYes
DLC IDPLEWO5S0QZ4H
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923297526
Each Quantity1
Each Length4.96
Each Width4.96
Each Height8.98
Each Weight2.45
Each Cube0.12
Pack TypeBox
Inner UPC20045923297520
Inner Quantity6
Inner Length15.43
Inner Width10.43
Inner Height9.45
Inner Weight15.87
Inner Cube0.85
Case UPC10045923297523
Case Quantity12
Case Length21.46
Case Width16.14
Case Height10.43
Case Weight34.52
Case Cube2.03
×

Dimmer Compatibility

×

Precautions

No precautions available at this time.
