40W/LED/HID/MB/2700K/100-277V/EX39
40 watt - LED HID Replacement; 2700K; Mogul extended base; Adjustable beam angle; 100-277 volts
Features
- Replaces HID, CFL, and Incandescent
- Direct wire range voltage 100-277V
- Approved for totally enclosed fixtures
- Hi bay, low bay and post top

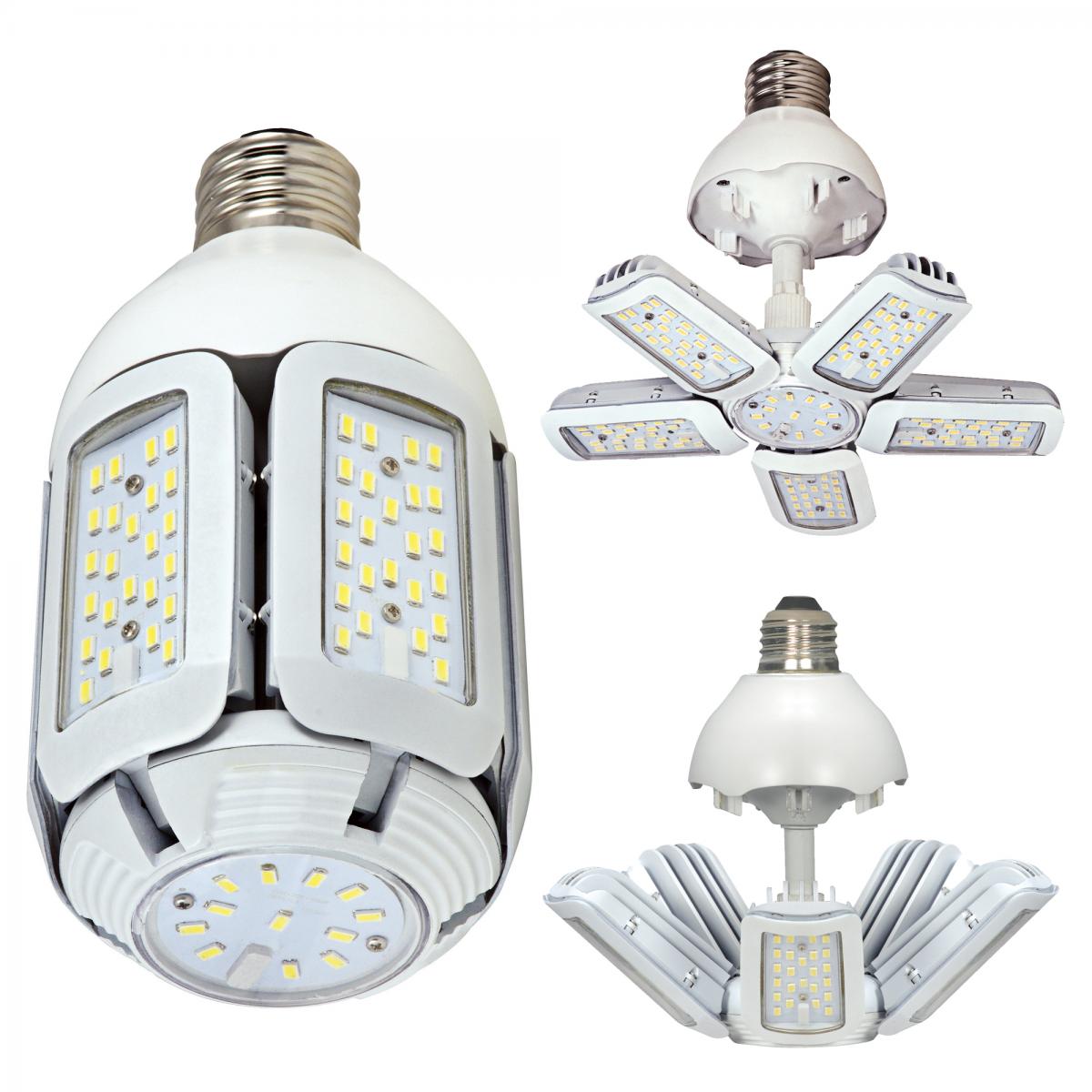

- Light panels lock into place creating 3 separate beam angle options
- IP65 rated
- Built-in surge protection - 1KV
- 5 year limited warranty
Specification note: Power Factor >0.9; Operating temperature range -20°C to 65°C; Operating Frequency 50-60Hz; Working Voltage AC 90-305V
Optional accessory: In-line surge protector 80-929
Width (360°) | Width (270°) | Width (180°) |
3.5" | 7.7" | 8.9" |
Minimum Compartment Size | ||
Length | Width | Depth |
8.27 inch | 9.25 inch | 9.25 inch |
Product Line | Hi-Pro |
UPC | 045923297984 |
Input Voltage | 100 - 277 |
Watts | 40 |
Operating Frequency | 50/60Hz |
Incandescent Equivalent | 300W |
Fluorescent Equivalent | 65W |
HID Equivalent | 175W |
Power Factor | 0.90 |
Base | Mogul Extended |
ANSI Base | EX39 |
Lamp Code | 40W/LED/HID/MB/2700K/100-277V/EX39 |
Dimmable/Non-Dimmable | Non-Dimmable |
Finish | White |
MOL In Inches | 7-7/8'' |
MOD In Inches | 3-1/2'' (Open 8-7/8'') |
Initial Lumens | 4880 |
Average Rated Hours | 50000 |
Kelvin Temp | 2700 |
Color | Warm White |
CRI | 80+ |
Beam Spread Deg | Adjustable: 360; 270; 180 |
Burning Position | Up or Down Operation Only |
Operating Temperature | -20C (-4F) to a maximum of +65C (+149F) |
Pack | 12/6 |
Package Type | Box |
CEC Status | Lawful for sale in California |
DLC ID: | L2XLJMGVLVP |
RoHS Compliant | Yes |
Fixture Type | Enclosed Rated |
UL or ETL Listed | Yes |
UL Classification | cULus - Wet Location Rated |
Warranty | 5 Year Limited |
