Lights

S29852

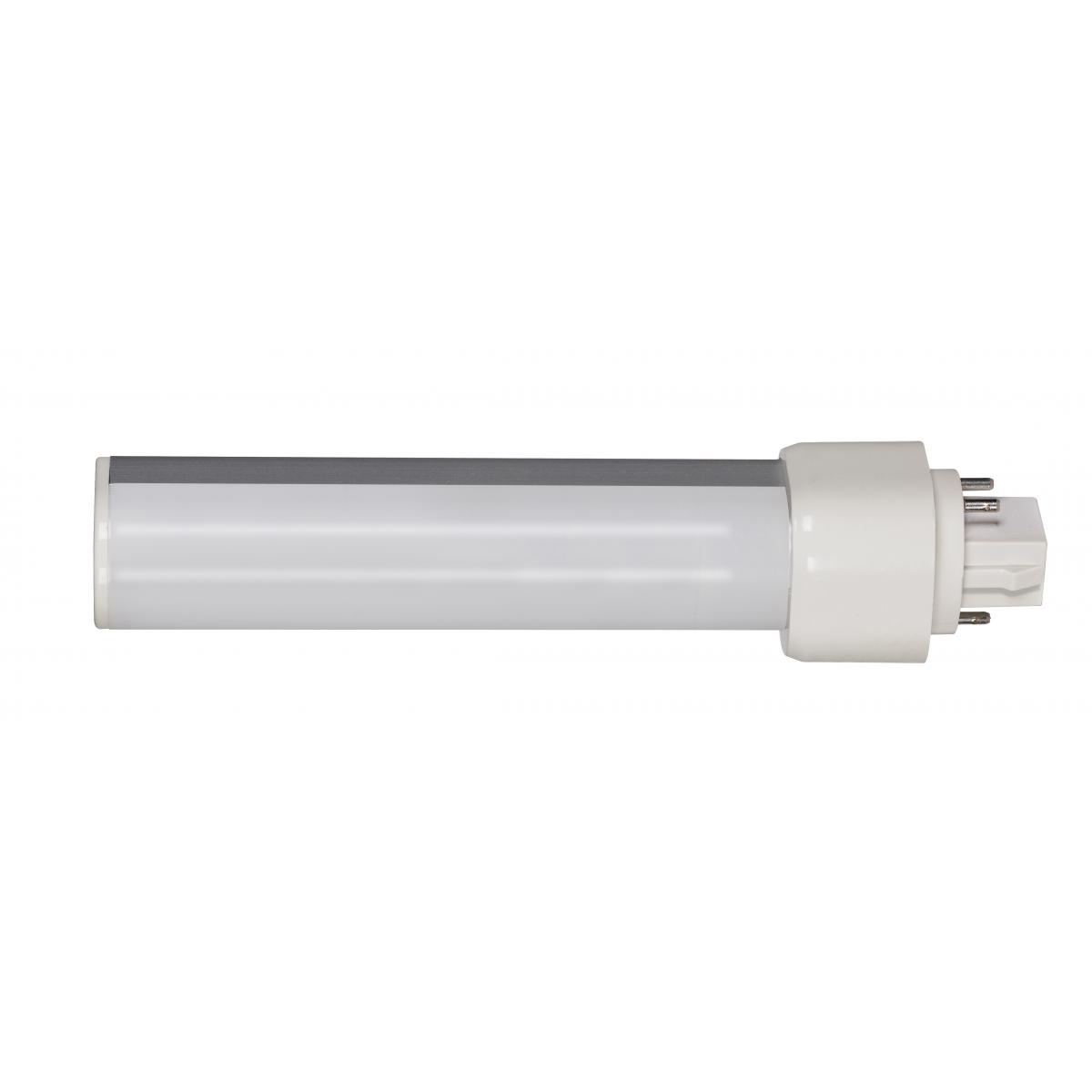

9WPLH/LED/840/DR/4P

9 Watt LED PL 4-Pin; 4000K; 1000 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle; Type A; Ballast dependent

S29852 9WPLH/LED/840/DR/4P

S29852

9WPLH/LED/840/DR/4P

9 Watt LED PL 4-Pin; 4000K; 1000 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle; Type A; Ballast dependent

Specifications

General
StatusActive
Watts9
Fluorescent Equivalent26, 32, 42
Ballast TypeType A
ShapePL
Base4-Pin
ANSI BaseG24q
FinishFrosted
CCT (Kelvin)4000
TemperatureCool White
CRI82
Lumens1000
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Lamp TypePL
Burning PositionHorizontal Operation
TechnologyLED
Electrical
Watts9
Fluorescent Equivalent26, 32, 42
Ballasting RequirementsBallastrequired
Ballast TypeType A
Working VoltageBallast dependent
CCT (Kelvin)4000
TemperatureCool White
CRI82
Lumens1000
Beam Spread120
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor0.9
Hours Rated50000
THD25% (+/-5%)
Burning PositionHorizontal Operation
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL6.63
MOD1.09
ShapePL
Base4-Pin
ANSI BaseG24q
FinishFrosted
Housing ColorWhite
Additional Information
Enclosure RatingEnclosed Rated Lamp
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLTQJ675TIRG
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923298523
Each Quantity1
Each Length (in.)1.50
Each Width (in.)1.50
Each Height (in.)6.80
Each Weight (lb.)0.22
Each Cube (CuFt.)0.0086
Pack TypeBox
Inner UPC20045923298527
Inner Quantity10
Inner Length (in.)8.00
Inner Width (in.)3.30
Inner Height (in.)7.09
Inner Weight (lb.)2.06
Inner Cube (CuFt.)0.1050
Case UPC10045923298520
Case Quantity50
Case Length (in.)14.50
Case Width (in.)8.60
Case Height (in.)9.00
Case Weight (lb.)12.00
Case Cube (CuFt.)0.6298
×
×

Ballast Compatibility

Name Type View
PL 4 Pin Electronic LED CFL Replacements Pin Based View
×

Precautions

No precautions available at this time.

×
