| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type A |
| Ballasting Requirements | Ballast required. Direct Replacement-for use on Instant Start and Rapid Start ballasts with no rewiring required. May not be compatible with every ballast. Refer to the ballast compatibility chart |
| CA Regulations | Exempt - Base Not Regulated |
| Lamp Filament | LED |
| Fixture Type | Linear |
| Status | Discontinued |
| Most Current Generation | S49934R1 |
| CCT Selectable | False |
| Wattage Selectable | False |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Gloss |
| Lensed | True |
| Nominal Length | 48.0 |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Fluor Equiv | 25W-32W |
| Incandescent Equivalent | 60W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 210 |
| Color Temp | Warm White |
| CRI | 80+ |
| Operating Temp | -20C (-4F) to +45C (+113F) |

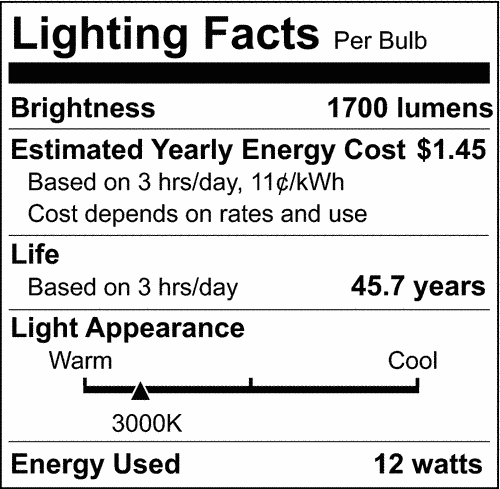

| Lumens | 1700L |
| Volts | Ballast Dependent |
| Watts | 12W |
| Lamp Base | Medium Bi Pin |
|---|---|
| Finish | Gloss |
| ANSI Base | G13 |
| Lamp Type | T8 |
| MOD Lamps | 1.0 |
| MOL | 48.0 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| CA Status | Lawful for sale in California |
|---|---|
| CO Status | Lawful for sale |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| ROHS Compliant | Yes |
| Safety Listing | cULus |
| CA Compliance Text | Lawful for sale |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923299346 |
|---|---|
| Case Cube | 1.0244 |
| Case Height | 4.3 |
| Case Length | 49.6 |
| Case Quantity | 10 |
| Case UPC | 10045923299343 |
| Case Weight | 6.4 |
| Case Width | 8.3 |
| EA Cube | 0.0336 |
| EA Height | 1.1 |
| EA Length | 48.0 |
| EA Quantity | 1 |
| EA Weight | 0.6 |
| EA Width | 1.1 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Sleeve |
| Web Length | 48.0 |
| Web Width | 1.0 |
