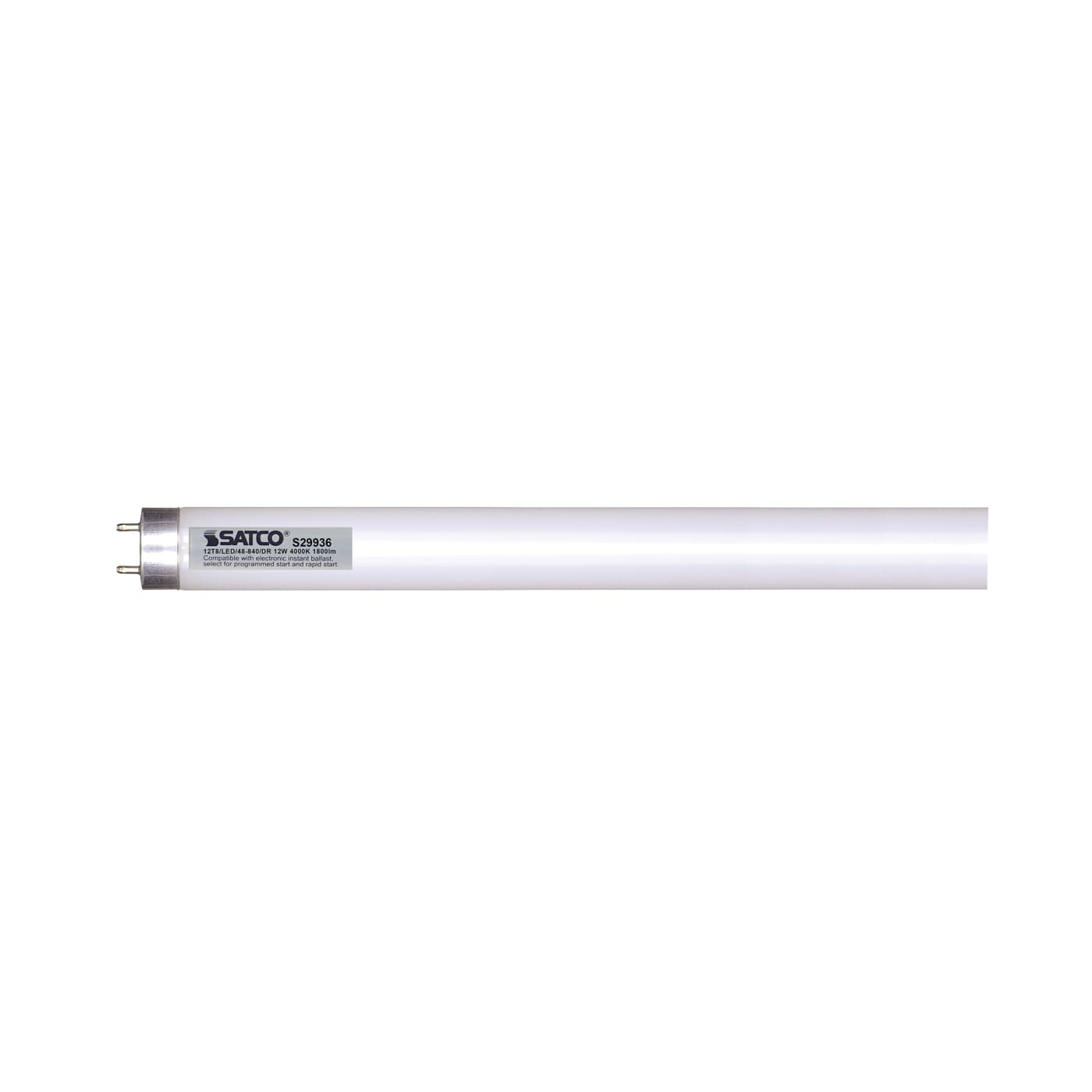

12T8/LED/48-840/DR

12 watt T8 LED; Medium bi-pin base; 4000K; 50000 Average rated hours; 1800 lumens
Features
  • Direct Replacement - for use on Instant Start and Rapid Start ballasts with no rewiring required*
  • Solid State LED lighting
  • High efficacy
  • DLC Listed
  • Compatible with emergency ballasts*
  • All glass tube

*May not be compatible with all rapid start and emergency ballasts.

Ballast required


View:
Ballast Compatibility Chart

S29936View/Enlarge

UPC045923299360
Watts12
Fluorescent Equivalent25W-32W
Lamp ShapeT8
BaseMedium Bi-Pin
ANSI BaseG13
Lamp Code12T8/LED/48-840/DR
Dimmable/Non-DimmableNon-Dimmable
FinishGloss White
MOL In Inches48''
MOD In Inches1.00''
Initial Lumens1800
Average Rated Hours50000
Kelvin Temp4000
ColorCool White
CRI 82
Beam Spread Deg210
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Pack10
Package TypeBox
DLC ID:

PLUWDAGE2QPY
DLC Search

RoHS CompliantYes
UL or ETL ListedYes
UL ClassificationcULus - Damp Location Rated
Warranty5 Year Limited
