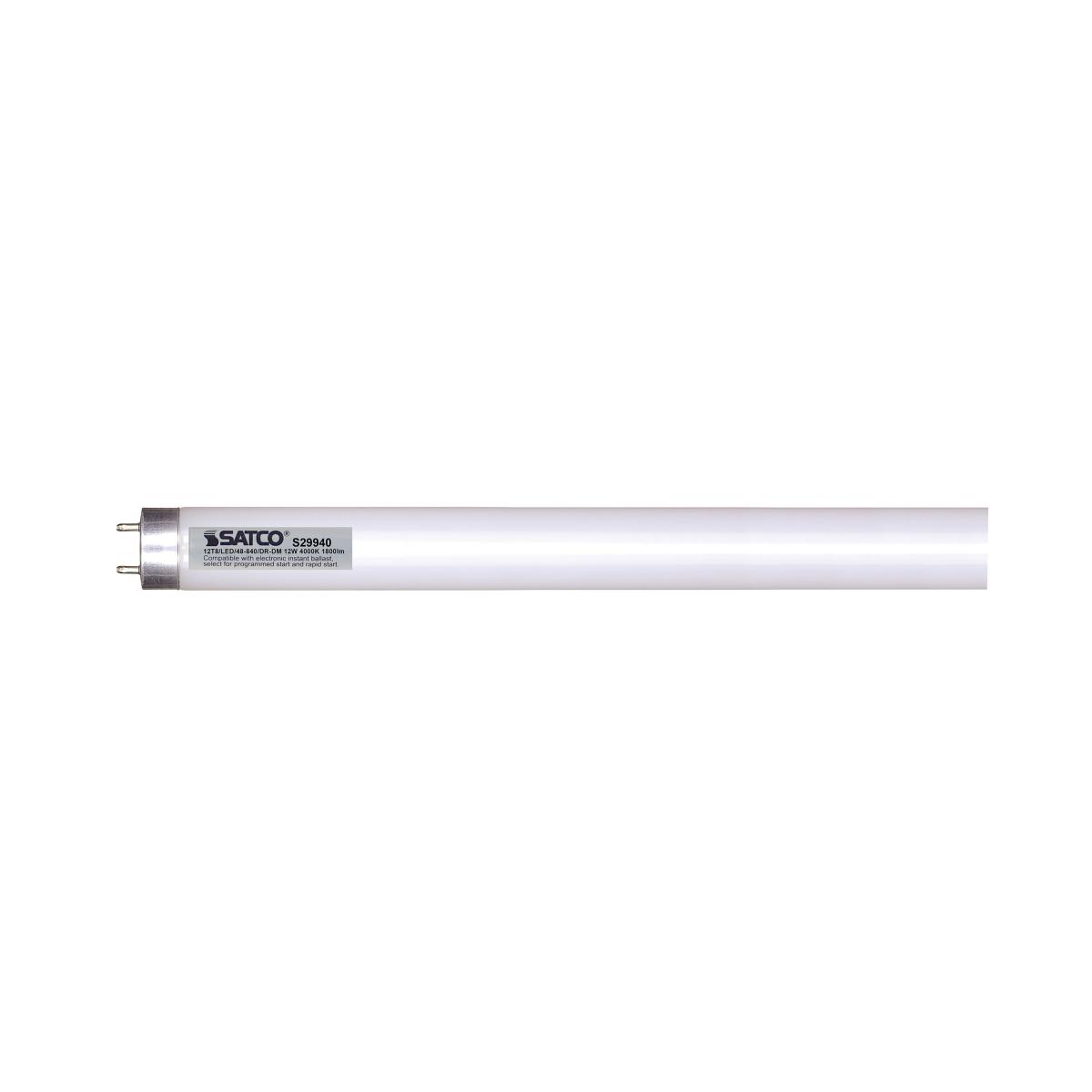

12T8/LED/48-840/DR-DM

12 watt T8 LED; Medium bi-pin base; 4000K; 50000 Average rated hours; 1800 lumens
Features

  • Direct Replacement - for use on Instant Start and Rapid Start ballasts with no rewiring required*
  • Solid State LED lighting
  • Dimmable*
  • Compatible with emergency ballasts*
  • 25watt - 32watt Fluorescent equivalency
  • 5 year Limited warranty


*May not be compatible with all rapid start, dimmable, and emergency ballasts. Ballast required

View:

Ballast Compatibility Chart

S29940View/Enlarge

UPC045923299407
Watts12
Fluorescent Equivalent25W-32W
Lamp ShapeT8
BaseMedium Bi-Pin
ANSI BaseG13
Lamp Code12T8/LED/48-840/DR-DM
Dimmable/Non-DimmableDimmable* Ballast Dependent
Suggested DimmersCheck Ballast MFG for Dimmer Compatibility
FinishGloss White
MOL In Inches48''
MOD In Inches1.00''
Initial Lumens1800
Average Rated Hours50000
Kelvin Temp4000
ColorCool White
CRI 82
Beam Spread Deg210
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Pack10
Package TypeEggcrate + Sleeve
DLC ID:

PLLZGLTOB8Q5
DLC Search

RoHS CompliantYes
UL or ETL ListedYes
UL ClassificationcULus - Damp Location Rated
Warranty5 Year Limited
Item S29940
UPC045923299407
Watts12
Fluorescent Equivalent25W-32W
Lamp ShapeT8
BaseMedium Bi-Pin
ANSI BaseG13
Lamp Code12T8/LED/48-840/DR-DM
Dimmable/Non-DimmableDimmable* Ballast Dependent
Suggested DimmersCheck Ballast MFG for Dimmer Compatibility
FinishGloss White
MOL In Inches48''
MOD In Inches1.00''
Initial Lumens1800
Average Rated Hours50000
Kelvin Temp4000
ColorCool White
CRI 82
Beam Spread Deg210
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Pack10
Package TypeEggcrate + Sleeve
DLC ID:

PLLZGLTOB8Q5
DLC Search

RoHS CompliantYes
UL or ETL ListedYes
UL ClassificationcULus - Damp Location Rated
Warranty5 Year Limited
