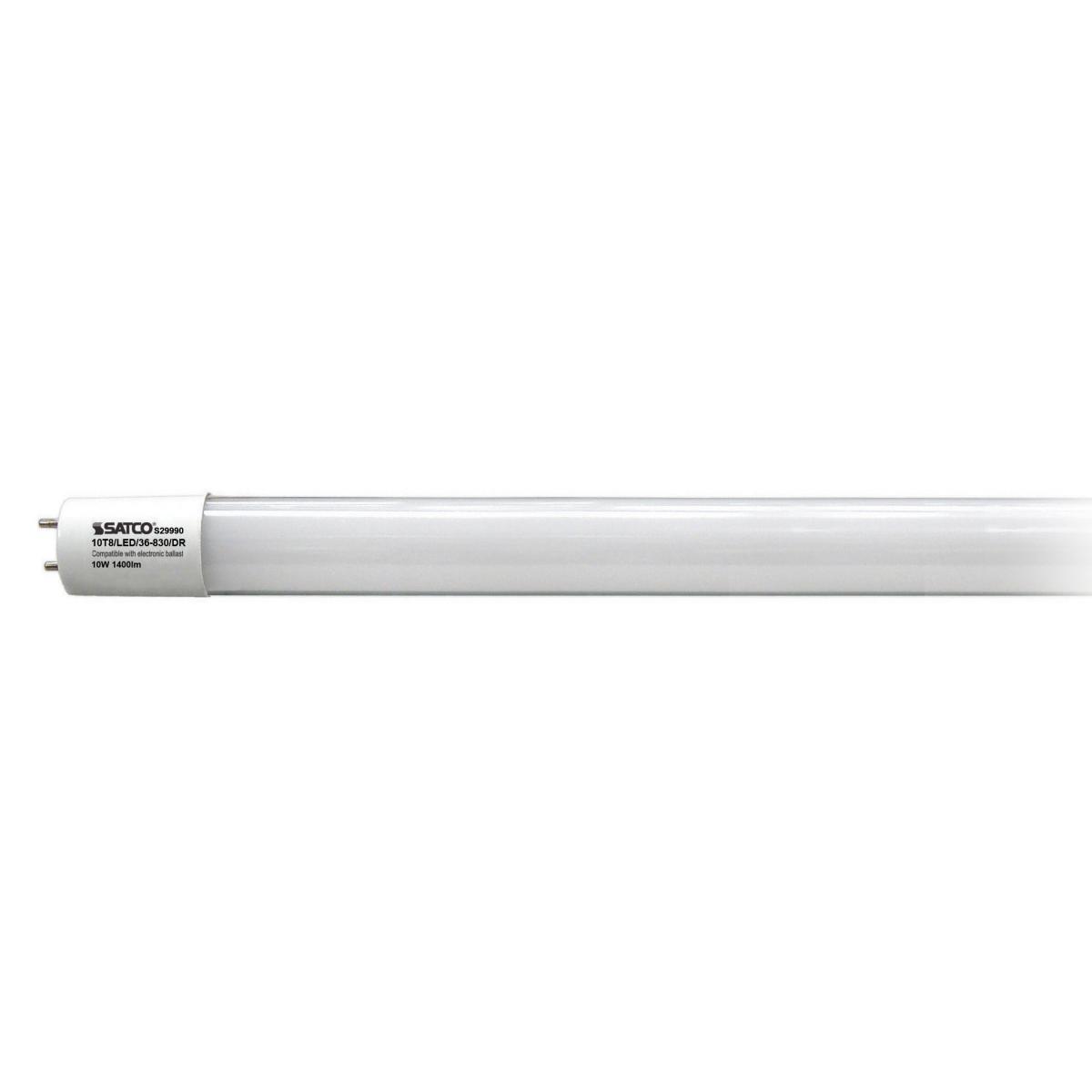

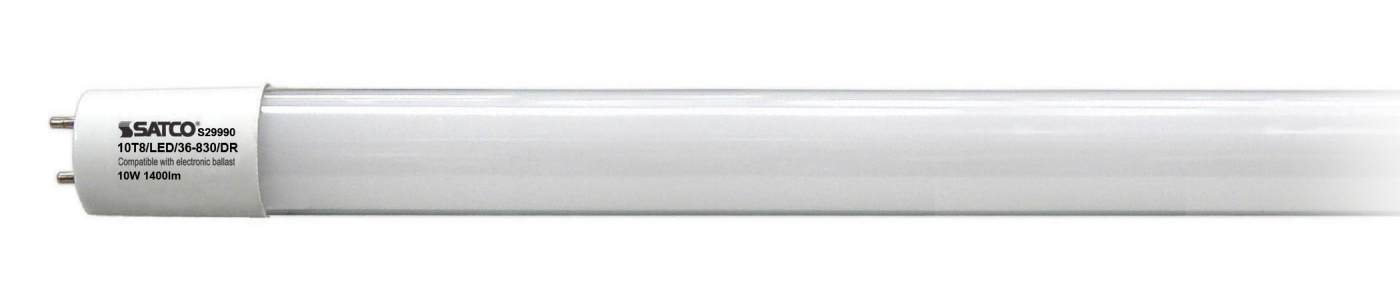

10T8/LED/36-830/DR

10W T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 1400 Lumens; Type A; Ballast dependent
Features
  • Direct Replacement - for use on Instant Start and Rapid Start ballasts with no rewiring required*
  • Solid State LED lighting
  • Compatible with emergency ballasts*
  • 25watt Fluorescent equivalency
  • 5 year Limited warranty

*May not be compatible with all rapid start, dimmable, and emergency ballasts.

Ballast required


View:
Ballast Compatibility Chart

S29990View/Enlarge

UPC045923299902
Watts10
Fluorescent Equivalent25W
Lamp ShapeT8
BaseMedium Bi-Pin
ANSI BaseG13
Lamp Code10T8/LED/36-830/DR
Dimmable/Non-DimmableNon-Dimmable
FinishWhite
MOL In Inches36''
MOD In Inches1.00''
Initial Lumens1400
Average Rated Hours50000
Kelvin Temp3000
ColorSoft White
CRI 82
Beam Spread Deg220
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Pack10
Package TypeBox
CEC StatusLawful for sale in California
DLC ID:

PLNQWK64AP91
DLC Search

RoHS CompliantYes
UL or ETL ListedYes
UL ClassificationcULus - Damp Location Rated
Warranty5 Year Limited
Item S29990
UPC045923299902
Watts10
Fluorescent Equivalent25W
Lamp ShapeT8
BaseMedium Bi-Pin
ANSI BaseG13
Lamp Code10T8/LED/36-830/DR
Dimmable/Non-DimmableNon-Dimmable
FinishWhite
MOL In Inches36''
MOD In Inches1.00''
Initial Lumens1400
Average Rated Hours50000
Kelvin Temp3000
ColorSoft White
CRI 82
Beam Spread Deg220
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Pack10
Package TypeBox
CEC StatusLawful for sale in California
DLC ID:

PLNQWK64AP91
DLC Search

RoHS CompliantYes
UL or ETL ListedYes
UL ClassificationcULus - Damp Location Rated
Warranty5 Year Limited
