| Company | SATCO |
|---|---|
| Lamp Filament | C-8 |
| Fixture Type | Double Ended Halogen |
| Status | Obsolete |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | No Finish |
| Amps | 2.083A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Clear |
| Lensed | Yes |
| Operating Position | Universal |
| SDS Class | Halogen_Double_Ended_or_Pin_Based_Lamp |
| Product Technology | Halogen |
| CCT (Kelvin Temp) | 2900K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 1500 |
| Beam Angle (degree) | 360 |
| Color Temp | Warm White |
| CRI | 100 |

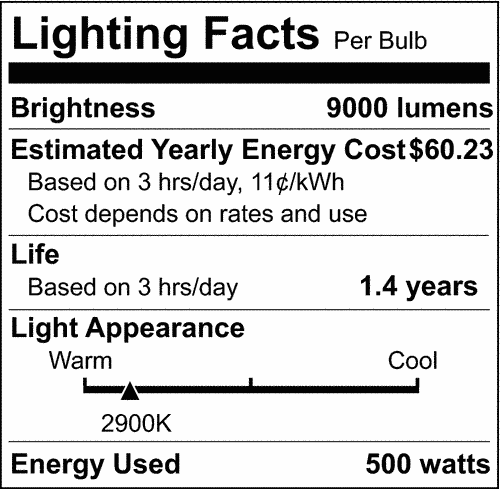

| Lumens | 9000L |
| Volts | 240V |
| Watts | 500W |
| Lamp Base | Double Ended Recessed Single Contact |
|---|---|
| Finish | Clear |
| ANSI Base | R7s |
| Lamp Type | T3 |
| MOD Lamps | 0.38 |
| MOL | 4.69 |
| Location Rating | Damp |
|---|---|
| ROHS Compliant | Yes |
| Safety Listing | Not Applicable |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923031854 |
|---|---|
| Case Cube | 1.7531 |
| Case Height | 12.81 |
| Case Length | 20.69 |
| Case Quantity | 480 |
| Case UPC | 10045923031851 |
| Case Weight | 20.51 |
| Case Width | 11.43 |
| EA Cube | 0.0028 |
| EA Height | 0.94 |
| EA Length | 5.39 |
| EA Quantity | 1 |
| EA Weight | 0.03 |
| EA Width | 0.94 |
| Inner Cube | 0.0369 |
| Inner Height | 5.48 |
| Inner Length | 5.91 |
| Inner Quantity | 12 |
| Inner UPC | 20045923031858 |
| Inner Weight | 0.5 |
| Inner Width | 1.97 |
| Pack Type | Box |
| Web Length | 4.69 |
| Web Width | 0.38 |
