Lights

S3197

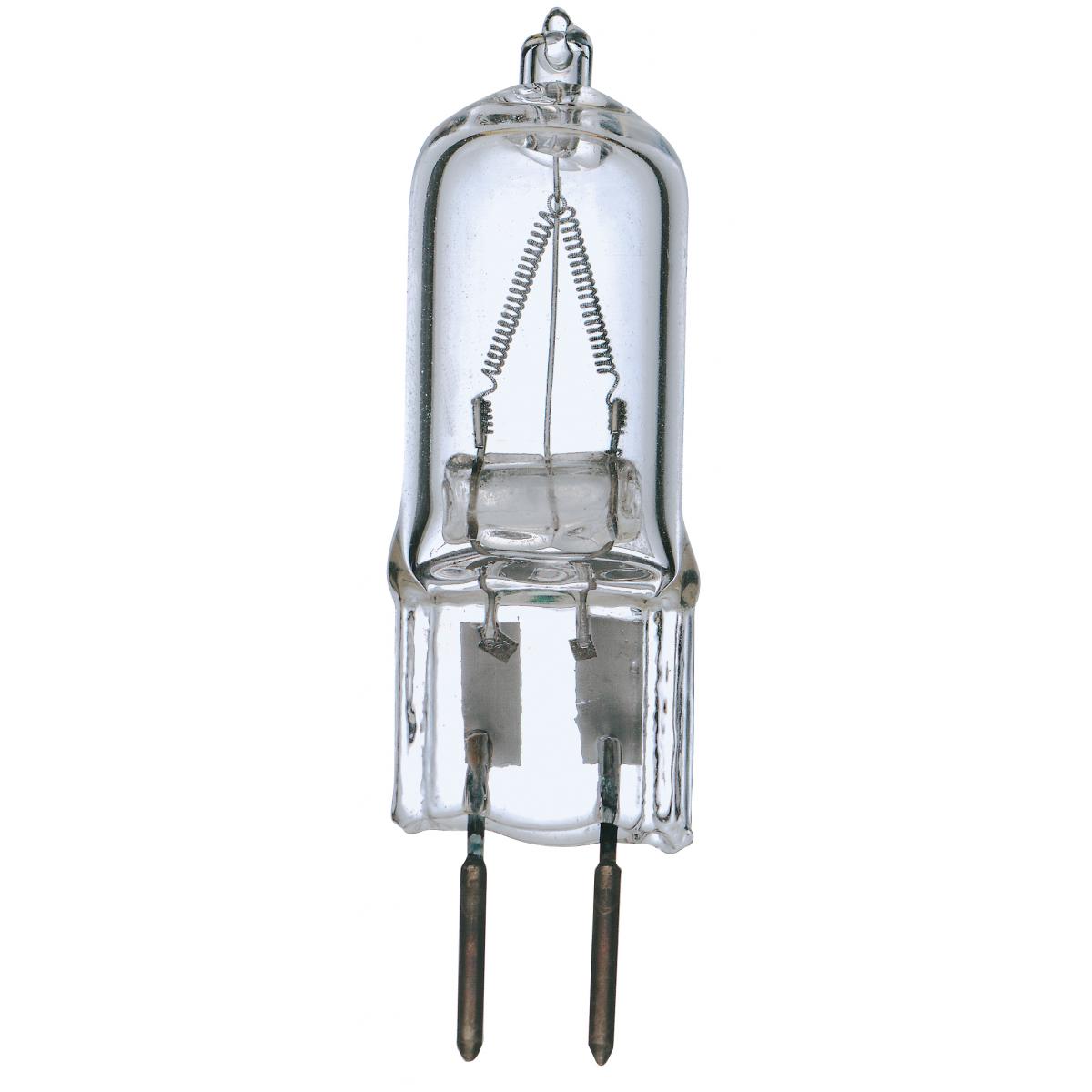

25W BI PIN 120V. GY6.35

25 watt; Halogen; T4; Clear; 2000 Average rated hours; 210 Lumens; Bi Pin GY6.35 base; 120 volts

Lights

S3197

25W BI PIN 120V. GY6.35

25 watt; Halogen; T4; Clear; 2000 Average rated hours; 210 Lumens; Bi Pin GY6.35 base; 120 volts

Specifications

General
StatusActive
Watts25
Volts120V
ShapeT4
FilamentCC-2V
BaseBi Pin GY6.35
ANSI BaseGY6.35
FinishClear
CCT (Kelvin)2900
TemperatureWarm White
CRI100
Lumens210
Beam Spread360
DimmableYes Dimmable
Hours Rated2000
Lamp TypeBi-Pin
TechnologyHalogen
Electrical
Watts25
Volts120V
FilamentCC-2V
CCT (Kelvin)2900
TemperatureWarm White
CRI100
Lumens210
Beam Spread360
DimmableYes Dimmable
Hours Rated2000
Physical
MOL1.97
MOD0.5
ShapeT4
BaseBi Pin GY6.35
ANSI BaseGY6.35
FinishClear
Additional Information
WarrantyAvg. Rated Hour Limited
Compliance
Safety ListingNot Listed - Damp Location Rated
Energy StarNo
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetHalogen Double Ended or Pin Based Lamp
Packaging
Each UPC045923031977
Each Quantity1
Each Length (in.)2.68
Each Width (in.)0.87
Each Height (in.)0.87
Each Weight (lb.)0.01
Each Cube (CuFt.)0.00
Pack TypeBox
Inner UPC20045923031971
Inner Quantity48
Inner Length (in.)5.59
Inner Width (in.)3.86
Inner Height (in.)5.79
Inner Weight (lb.)0.55
Inner Cube (CuFt.)0.07
Case UPC10045923031974
Case Quantity960
Case Length (in.)29.16
Case Width (in.)8.27
Case Height (in.)12.61
Case Weight (lb.)11.58
Case Cube (CuFt.)1.71
×

Dimmer Compatibility

×

Precautions

No precautions available at this time.
