Lights

S39672

36W/LED/HID/2700K/100-277V E26

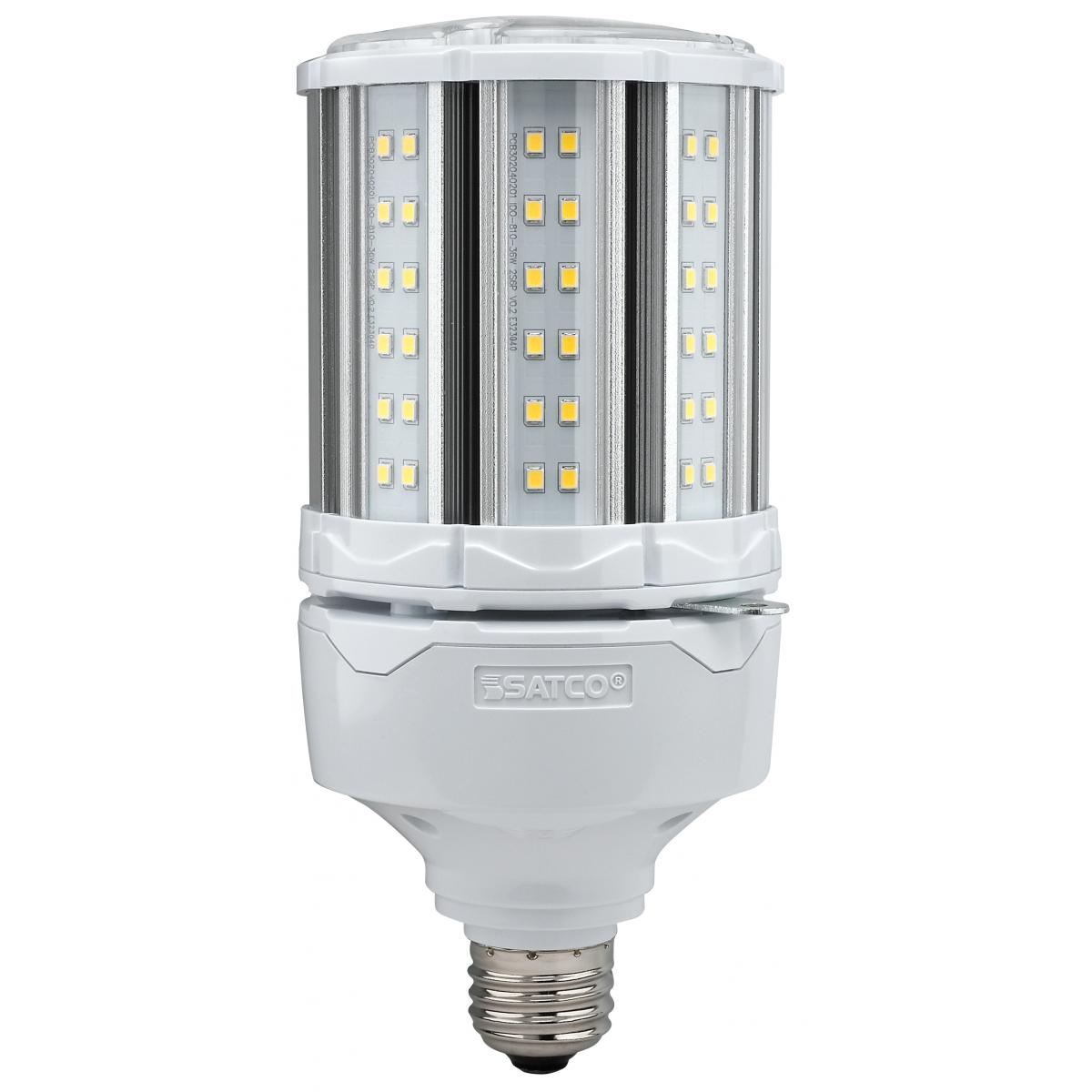

36W LED HID Replacement; 2700K; Medium base; 100-277V

S39672 36W/LED/HID/2700K/100-277V E26

S39672

36W/LED/HID/2700K/100-277V E26

36W LED HID Replacement; 2700K; Medium base; 100-277V

Specifications

General
StatusActive
Watts36
Incandescent Equivalent200
Fluorescent Equivalent55
HID Equivalent150
Volts100V-277V
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
CCT (Kelvin)2700
TemperatureWarm White
CRI80
Lumens4680
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength 8.5 in. Width 6 in. Depth 6 in.
Ballasting RequirementsBallast by-pass - Direct wire only 100 - 277V
Electrical
Watts36
Incandescent Equivalent200
Fluorescent Equivalent55
HID Equivalent150
Volts100V-277V
Ballasting RequirementsBallast by-pass - Direct wire only 100 - 277V
Working VoltageAC 100-277V
Operating Frequency50/60 Hz
CCT (Kelvin)2700
TemperatureWarm White
CRI80
Lumens4680
Beam Spread300
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor>0.9
Hours Rated50000
Burning PositionUniversal
Surge ProtectionBuilt-in surge protection - 4KV
Operating Temperature-25C (-13F) to a maximum of +45C (+113F)
Physical
MOL7.34
MOD3.34
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
Lens FinishClear
Lens MaterialPlastic
Housing ColorWhite
Weight (lb.)1.52
Additional Information
Additional InfoApproved for totally enclosed fixtures; Base up, base down or horizontal operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg)
Enclosure RatingEnclosed Rated Lamp
Min Compartment SizeLength 8.5 in. Width 6 in. Depth 6 in.
Rated For Enclosed FixtureYes
IP RatingIP64
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CEC StatusLawful for sale in California
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923306723
Each Quantity1
Each Length (in.)4.72
Each Width (in.)4.72
Each Height (in.)9.60
Each Weight (lb.)1.97
Each Cube (CuFt.)0.1200
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923306720
Case Quantity12
Case Length (in.)19.29
Case Width (in.)14.96
Case Height (in.)10.43
Case Weight (lb.)24.25
Case Cube (CuFt.)1.6890
