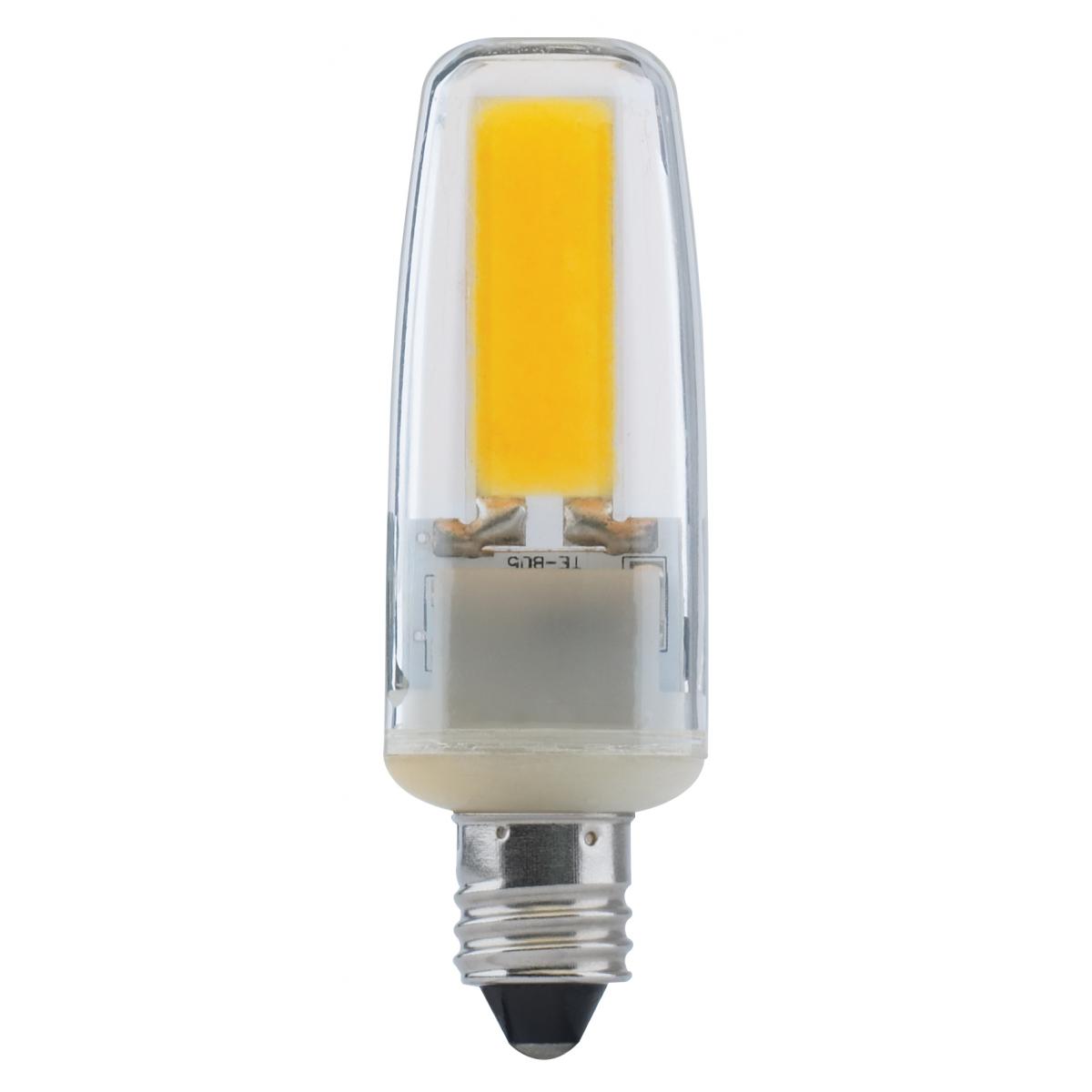

LED/4W/E11/MC/CL/5K/120V - S8685
S8685

LED/4W/E11/MC/CL/5K/120V

Discontinued - Suggested Replacement: S12335
  • 4 Watt
  • LED
  • 5000K
  • Clear
  • Mini Candelabra base
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
hours_rated^25k^2
warranty^5_years^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S8685 SpecificationsSilicon LED replacements for Halogen BA15S, E11, G4, G6.35, G8 & G9 lamps
Products Specs
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeMiniature
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyClear
Amps0.033A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv40W
Incandescent Equivalent35W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)360
Color TempNatural Light
CRI80+
Dimming Type120V only, Phase cut
Lumens480L
Volts120v
Watts4W
Physical
Lamp BaseMini Candelabra
FinishClear
ANSI BaseE11
MOD Lamps0.75
MOL2.38
Additional Info
Warranty5-Years
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24/JA8 CompliantNo
US State BanCA
Packaging
UPC045923086854
Case Cube0.2787
Case Height6.25
Case Length10.63
Case Quantity200
Case UPC10045923086851
Case Weight6.0
Case Width7.25
EA Cube0.0008
EA Height0.63
EA Length2.5
EA Quantity1
EA Weight0.03
EA Width0.88
Inner Cube0.0219
Inner Height2.75
Inner Length6.88
Inner Quantity20
Inner UPC20045923086858
Inner Width2.0
Pack TypeBox
Web Length2.38
Web Width0.75
