S8691

13T5/LED/46-840/BP/HE/120-277V

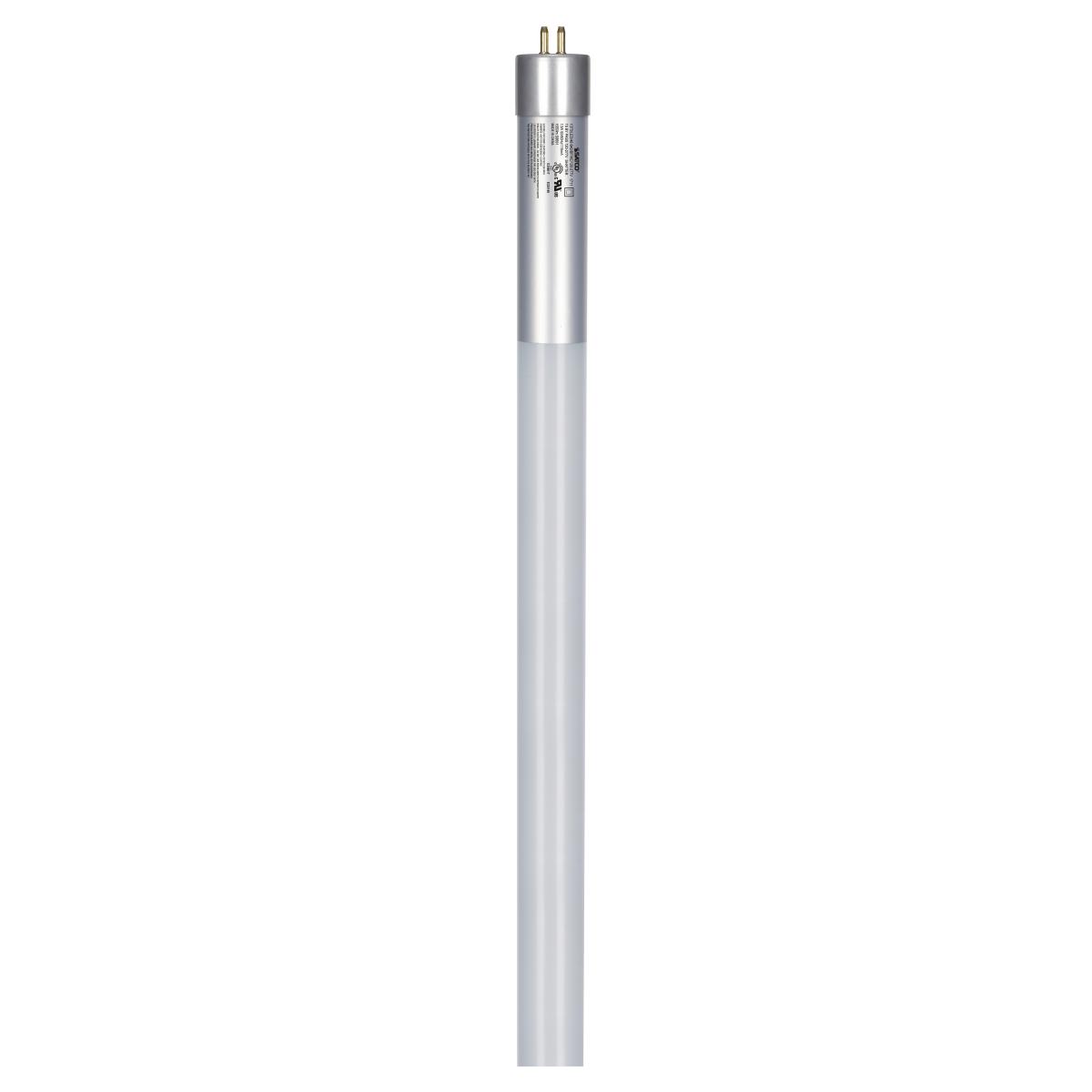

13 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 1650 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single Ended Wiring

S8691 13T5/LED/46-840/BP/HE/120-277V

S8691

13T5/LED/46-840/BP/HE/120-277V

13 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 1650 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single Ended Wiring

Specifications

General
StatusDiscontinued
SubstituteS28691
Watts13
Volts120V-277V
Ballast TypeType B
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length48
FinishFrosted
CCT (Kelvin)4000
TemperatureCool White
CRI83
Lumens1650
Beam Spread240
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts13
Volts120V-277V
Ballasting RequirementsBallastBypass
Ballast TypeType B
CCT (Kelvin)4000
TemperatureCool White
CRI83
Lumens1650
Beam Spread240
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor0.91
Hours Rated50000
Physical
MOL48
MOD0.88
Nominal Length48
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrosted
Housing ColorSilver
Additional Information
Shatter-Proof TypeYes
Warranty5 Year Limited - T5 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus Classified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLJKLU33P9OA
CEC StatusLawful for sale in California
RoHS CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923086915
Each Quantity1
Each Length (in.)45.80
Each Width (in.)0.80
Each Height (in.)0.80
Each Weight (lb.)0.40
Each Cube (CuFt.)0.0164
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923086912
Case Quantity25
Case Length (in.)48.10
Case Width (in.)5.20
Case Height (in.)5.20
Case Weight (lb.)12.90
Case Cube (CuFt.)0.7299
