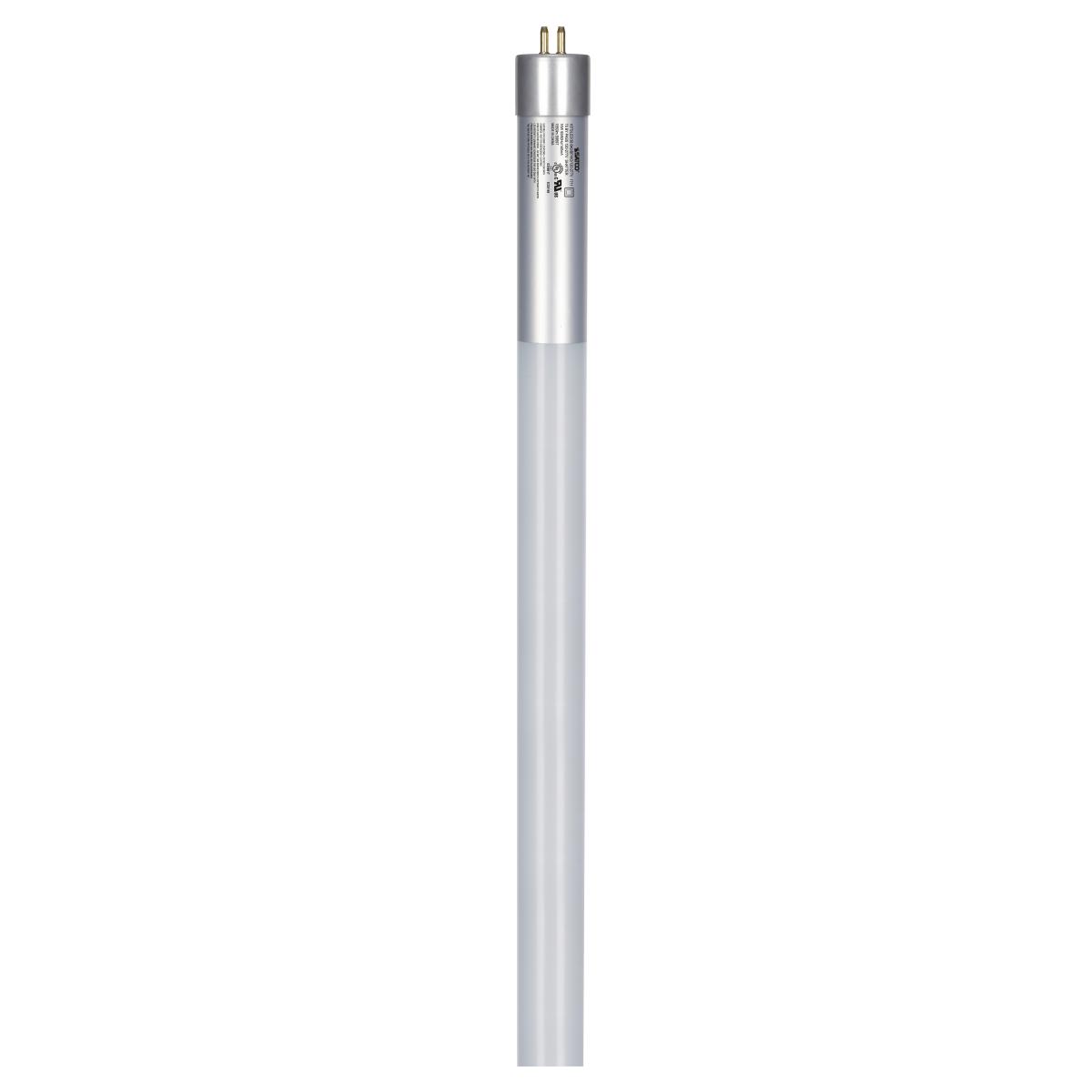

SKU S8697 - Image 1
S8697

16T5/LED/36-840/BP/HO/120-277V

  • 16 Watt T5 LED
  • Miniature bi-pin base
  • 4000K
  • 50000 Average rated hours
  • 1850 Lumens
  • 120-277 Volt
  • Type B
  • Ballast Bypass
  • Single Ended Wiring
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S8697 SpecificationsS8697 InstructionsSA2195 LED T5 Ballast Bypass lamps PI Sheet 2 18
Tools
Lighting Layout Analysis For S8697
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
16 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 1850 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single Ended Wiring
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
Fixture TypeLinear
StatusDiscontinued
Most Current GenerationS28697
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.133-0.058A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Nominal Length36.0
Operating PositionUniversal
SDS ClassLED_Lamp
Shatter Proof TypeYes
Product TechnologyLED
Fluor Equiv39W
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)240
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)

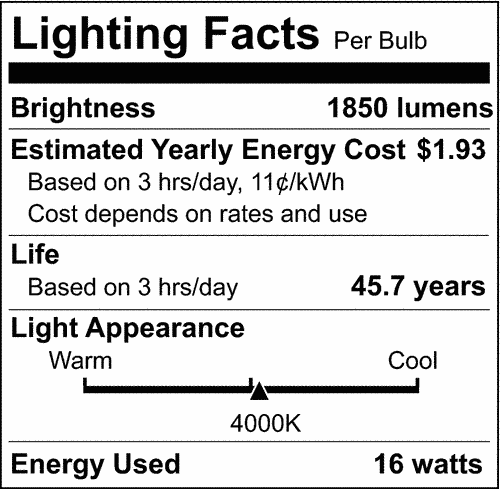

Lumens1850L
Volts120V-277V
Watts16W
Physical
Lamp BaseMiniature Bi Pin
FinishFrost
Housing ColorSilver
ANSI BaseG5
Lamp TypeT5
MOD Lamps0.88
MOL36.0
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsExempt - Base Not Regulated
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923086977
Case Cube0.568
Case Height5.2
Case Length36.3
Case Quantity25
Case UPC10045923086974
Case Weight10.7
Case Width5.2
EA Cube0.0126
EA Height0.8
EA Length34.0
EA Quantity1
EA Weight0.3
EA Width0.8
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeSleeve
Web Length36.0
Web Width0.88
