S8711

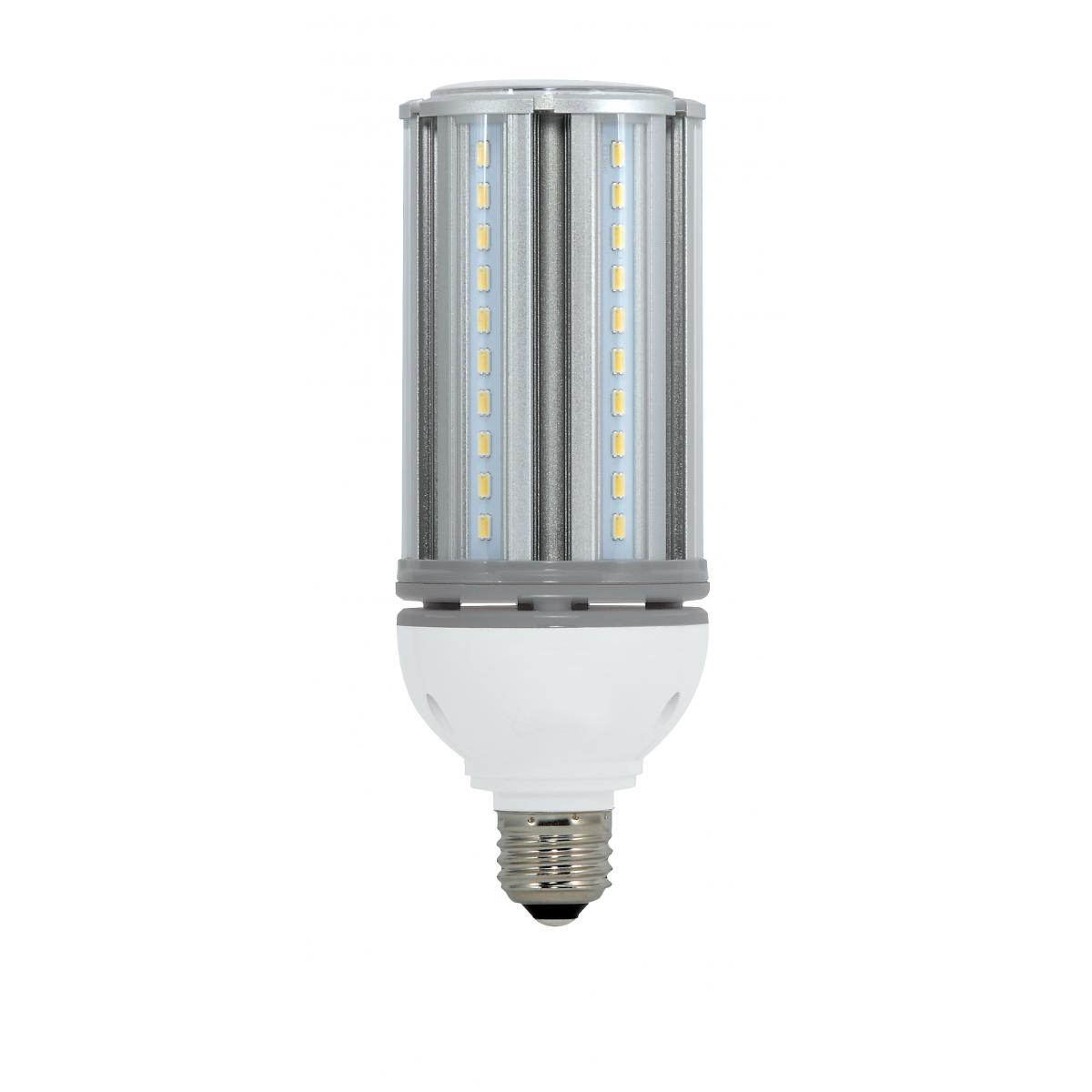

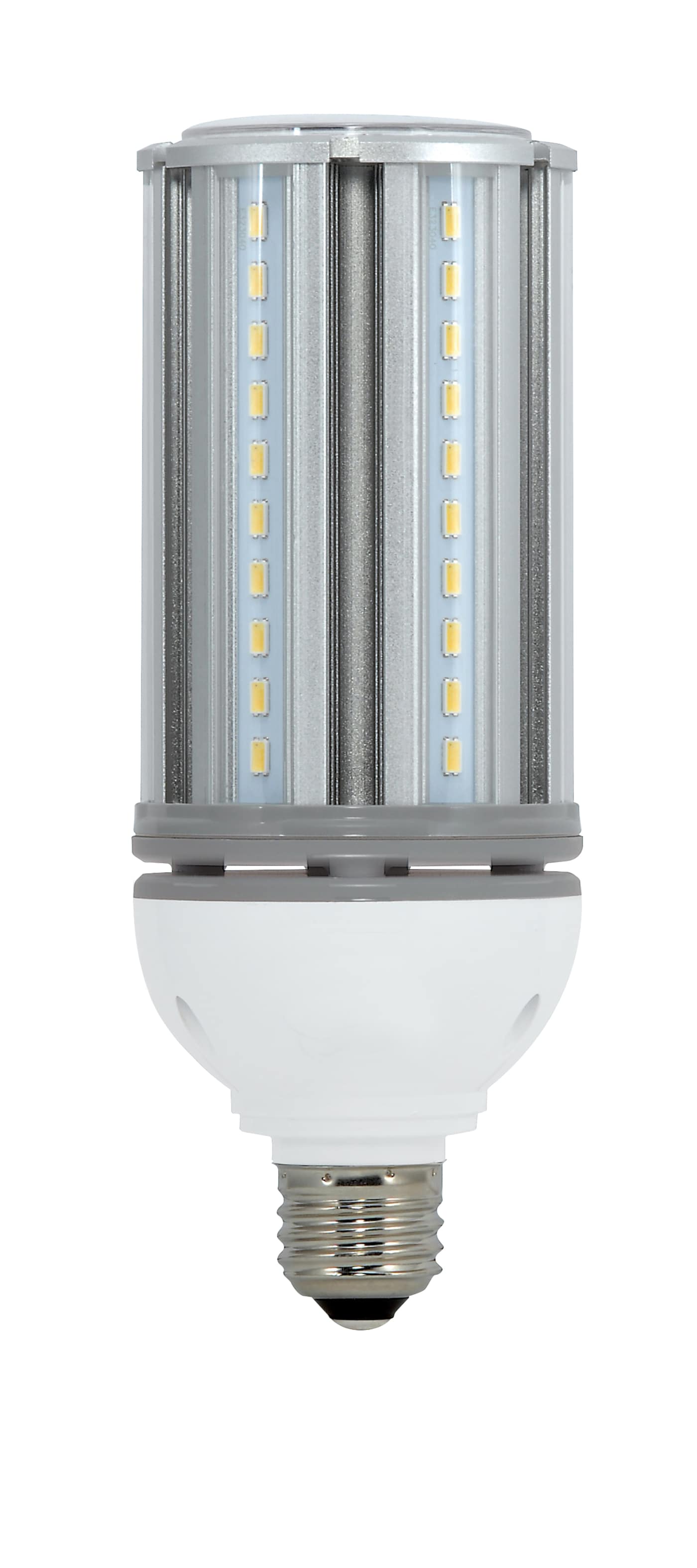

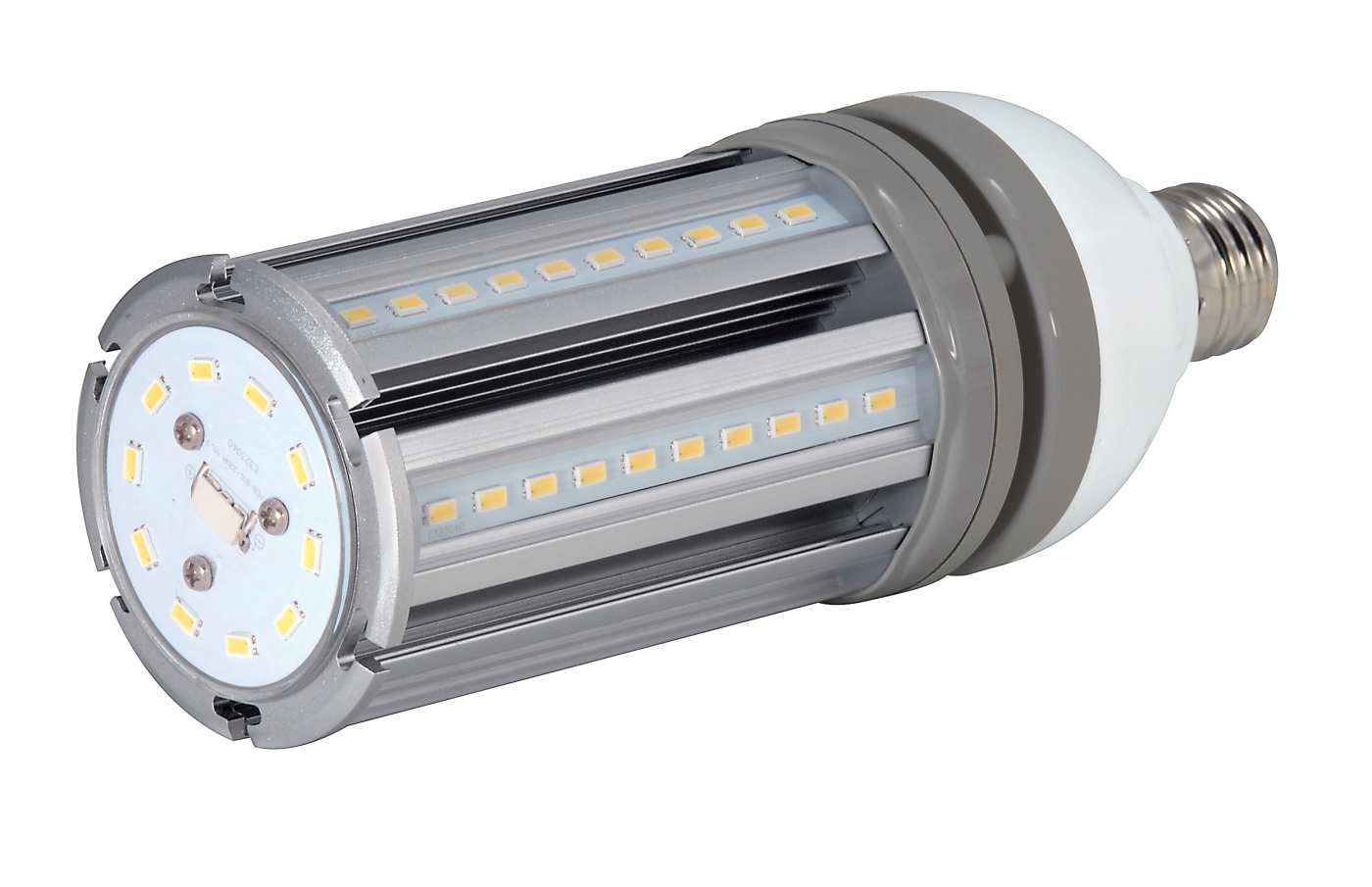

22W/LED/HID/50K/277-347V/E26

Discontinued - Suggested Replacement: S23161
  • 22 Watt LED HID Replacement
  • 5000K
  • Medium base
  • 277-347 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
S8711 SpecificationsSA2111 Hi-Pro LED 277-347V Lamps PI Sheet 5 17
Tools
Lighting Layout Analysis For S8711
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
22 Watt LED HID Replacement; 5000K; Medium base; 277-347 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass-Direct wire only 277-347V
Lamp FilamentLED
Fixture TypeCorncob
StatusObsolete
Most Current GenerationS23161
Working VoltageAC 250-380V
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.079-0.063A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Minimum Compartment SizeLength: 8.5 in. Width: 6 in. Depth: 6 in.
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv40W
Incandescent Equivalent150W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempNatural Light
CRI80+
Operating Frequency50-60Hz
Operating Temp-20C (-4F) to +65C (+149F)
HID Equivalent100W
Lumens2950L
Volts277V-347V
Watts22W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhiteGrey
ANSI BaseE26
Lamp TypeCorncob
MOD Lamps2.75
MOL7.69
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsExempt - >2600 Lumens
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
IP RatingIP65
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923087110
Case Cube3.8142
Case Height20.9
Case Length21.6
Case Quantity48
Case UPC10045923087117
Case Weight51.4
Case Width14.6
EA Cube0.0354
EA Height8.03
EA Length2.76
EA Quantity1
EA Weight0.96
EA Width2.76
Inner Cube0.9143
Inner Height9.84
Inner Length14.57
Inner Quantity12
Inner UPC20045923087114
Inner Weight15.19
Inner Width11.02
Pack TypeBox
Web Length7.69
Web Width2.75
