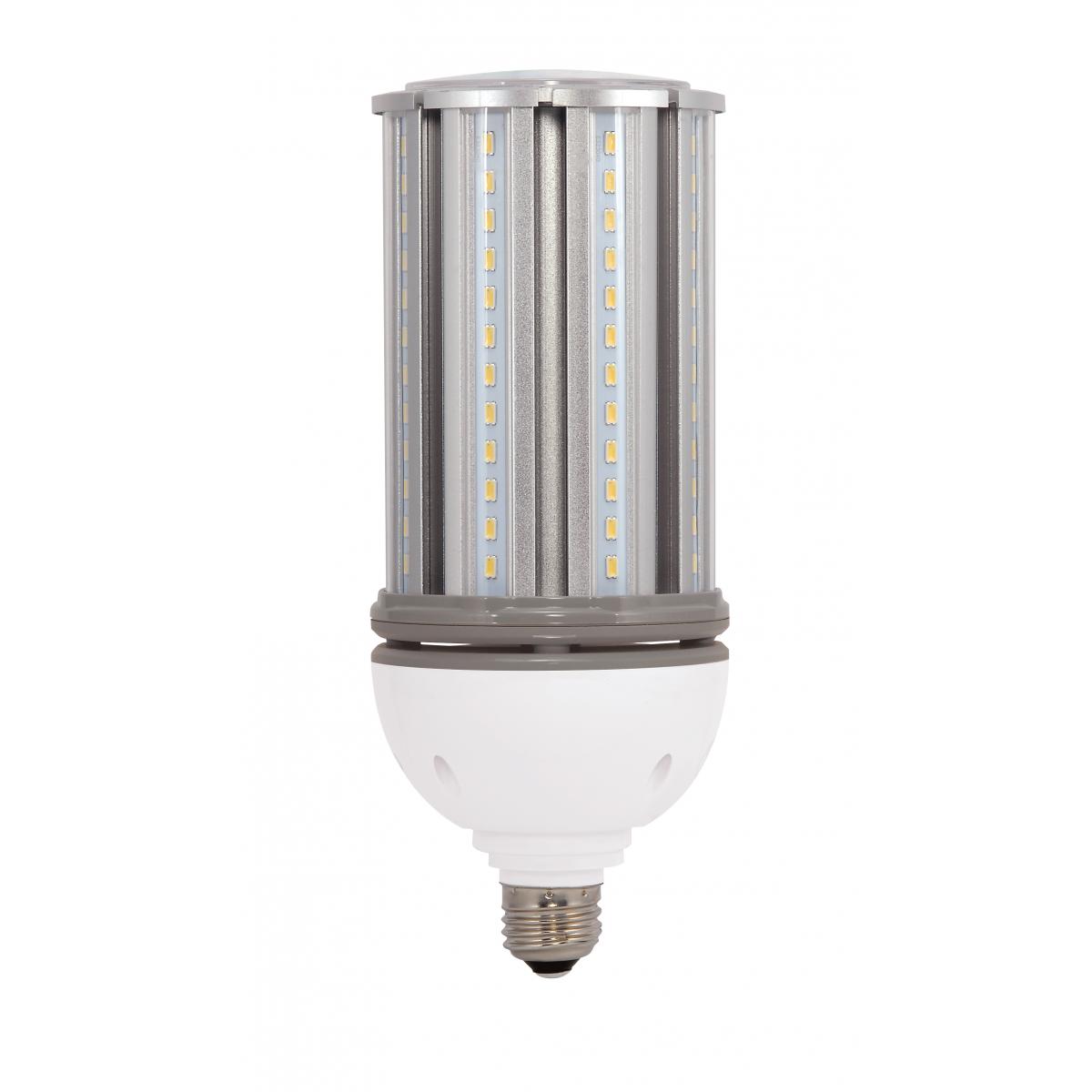

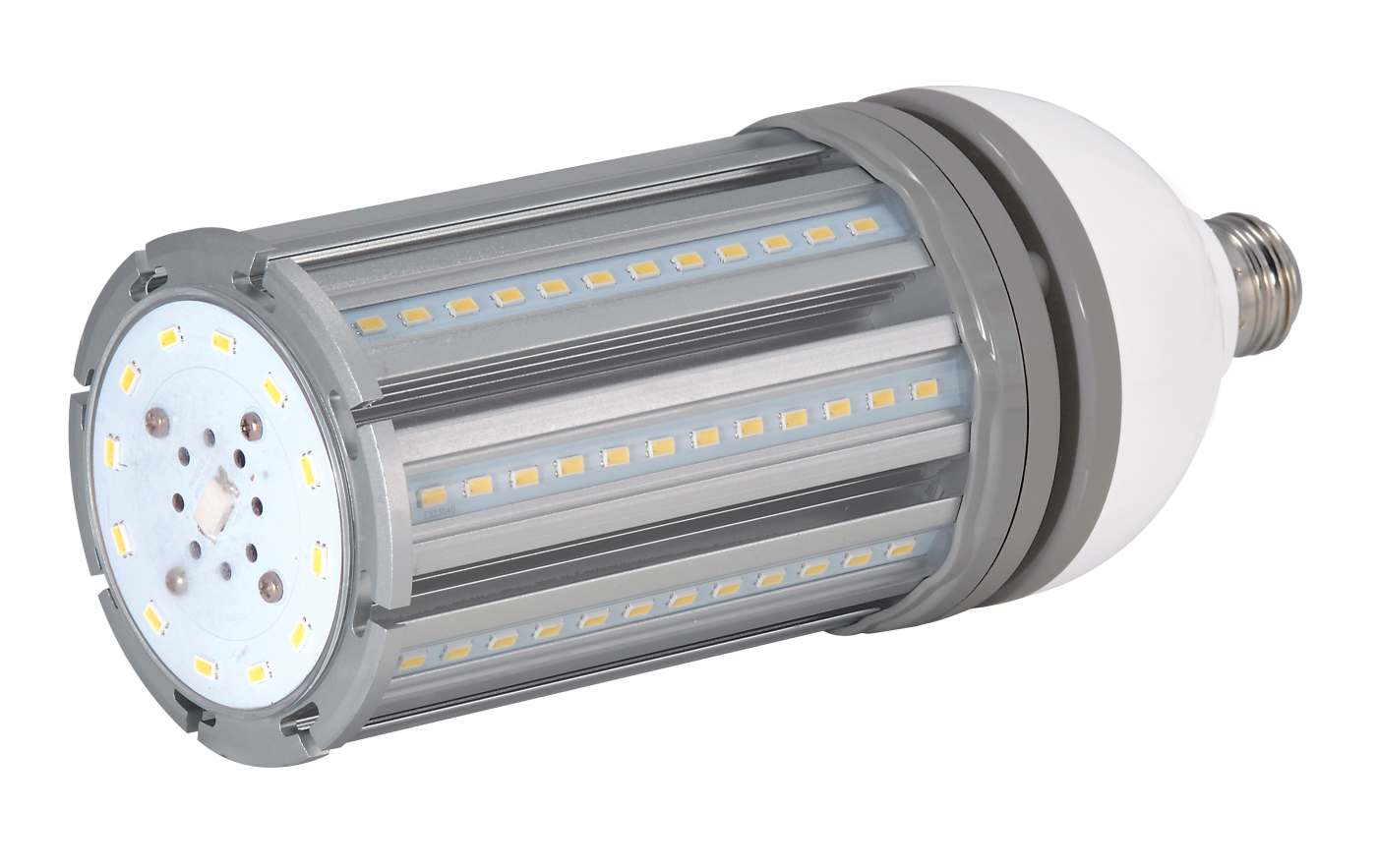

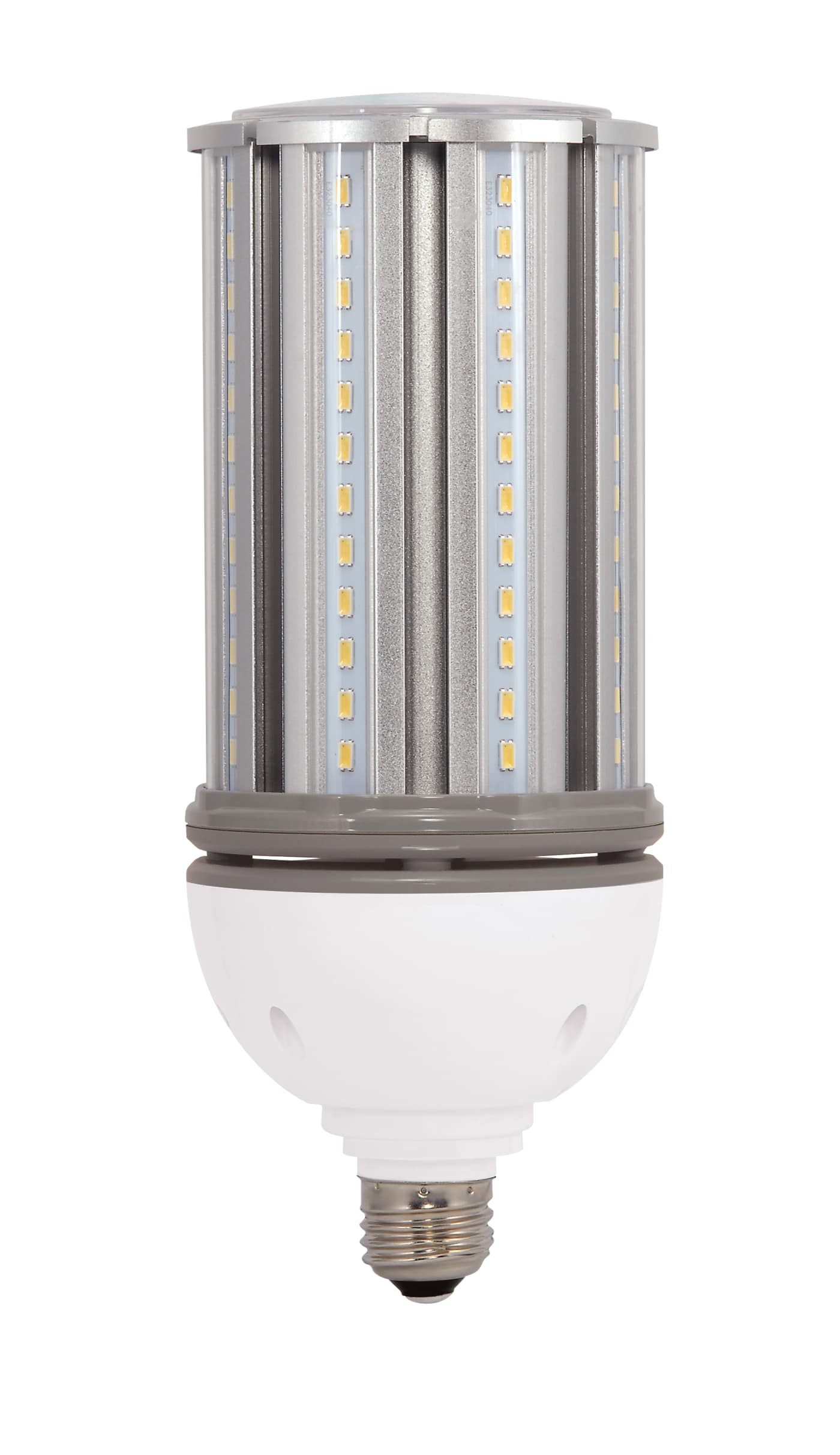

36W/LED/HID/5000K/277-347V/E26
36 watt - LED HID Replacement; 5000K; Medium base; 277-347 volts
Features
- High Lumen Omni-directional LED for Industrial / Commercial applications
- Replaces HID, CFL, and Incandescent
- Ballast by-pass - Direct wire only 277V - 347V
- UL approved for totally enclosed fixtures
- Damp location - IP65 rated
- For outdoor & indoor use
- Base up or base down operation (high/low bay and post top)
- Emits no UV light / Contains no mercury (Hg)
- 5 year limited warranty
- cULus listed
Additional Technical Specifications
- Power Factor >0.9
- Operating temperature range -20°C to 65°C
- Operating Frequency 50-60Hz
- Working Voltage AC90-305V
| Minimum Compartment Size | ||
| Length | Width | Depth |
| 17.3 inch | 9.25 inch | 9.25 inch |
Optional accessory: In-line surge protector 80-935
| Product Line | Hi-Pro |
| UPC | 045923087127 |
| Voltage | 277-347 |
| Watts | 36 |
| Incandescent Equivalent | 200W |
| Fluorescent Equivalent | 55W |
| HID Equivalent | 150W |
| Base | Medium |
| ANSI Base | E26 |
| Lamp Code | 36W/LED/HID/5000K/277-347V/E26 |
| Dimmable/Non-Dimmable | Non-Dimmable |
| Finish | White |
| MOL In Inches | 9-1/4'' |
| MOD In Inches | 3.69'' |
| Initial Lumens | 4800 |
| Average Rated Hours | 50000 |
| Kelvin Temp | 5000 |
| Color | Natural Light |
| CRI | 80+ |
| Beam Spread Deg | 300 |
| Operating Temperature | -20C (-4F) to a maximum of +65C (+149F) |
| Pack | 12 |
| Package Type | Box |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| UL or ETL Listed | Yes |
| Warranty | 5 Year Limited |
Item S8712
| Product Line | Hi-Pro |
| UPC | 045923087127 |
| Voltage | 277-347 |
| Watts | 36 |
| Incandescent Equivalent | 200W |
| Fluorescent Equivalent | 55W |
| HID Equivalent | 150W |
| Base | Medium |
| ANSI Base | E26 |
| Lamp Code | 36W/LED/HID/5000K/277-347V/E26 |
| Dimmable/Non-Dimmable | Non-Dimmable |
| Finish | White |
| MOL In Inches | 9-1/4'' |
| MOD In Inches | 3.69'' |
| Initial Lumens | 4800 |
| Average Rated Hours | 50000 |
| Kelvin Temp | 5000 |
| Color | Natural Light |
| CRI | 80+ |
| Beam Spread Deg | 300 |
| Operating Temperature | -20C (-4F) to a maximum of +65C (+149F) |
| Pack | 12 |
| Package Type | Box |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| UL or ETL Listed | Yes |
| Warranty | 5 Year Limited |
