S8713

45W/LED/HID/50K/277-347V/EX39

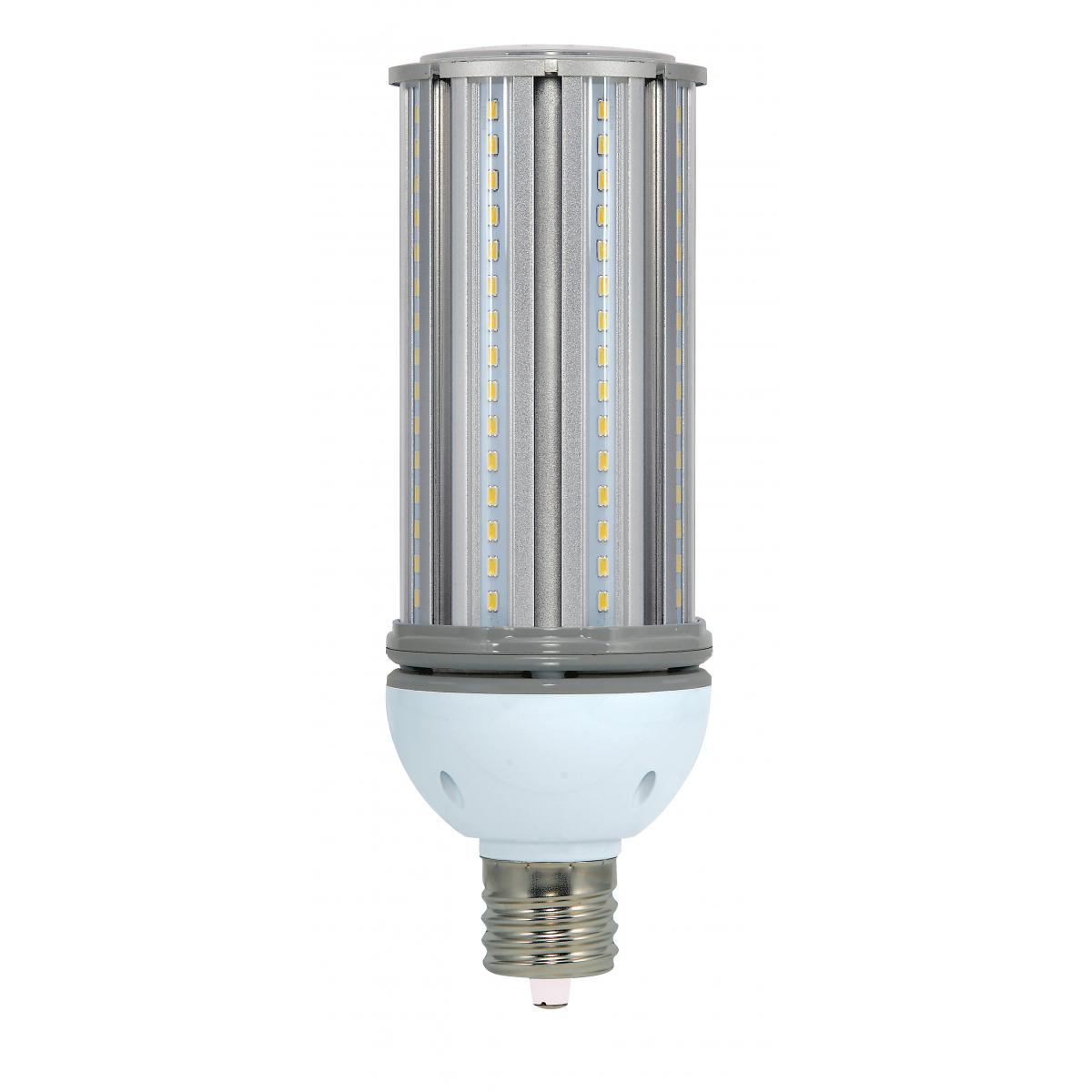

45 Watt LED HID Replacement; 5000K; Mogul extended base; 277-347 Volt

S8713 45W/LED/HID/50K/277-347V/EX39

S8713

45W/LED/HID/50K/277-347V/EX39

45 Watt LED HID Replacement; 5000K; Mogul extended base; 277-347 Volt

Specifications

General
StatusDiscontinued
SubstituteS28713
Watts45
Incandescent Equivalent300
Fluorescent Equivalent65
HID Equivalent175
Volts277V-347V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+
Lumens6000
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength 17.3 in. Width 9.25 in. Depth 9.25 in.
Ballasting RequirementsBallastby-pass-Directwireonly277-347V
Electrical
Watts45
Incandescent Equivalent300
Fluorescent Equivalent65
HID Equivalent175
Volts277V-347V
Ballasting RequirementsBallastby-pass-Directwireonly277-347V
Working VoltageAC 250-380V
Operating Frequency50-60 Hz
CCT (Kelvin)5000
TemperatureNatural Light
CRI80+
Lumens6000
Beam Spread300
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor0.9
Hours Rated50000
Burning PositionUniversal
Operating Temperature-20C (-4F) to a maximum of +65C (+149F)
Physical
MOL10.75
MOD3.69
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Lens FinishClear
Housing ColorWhite
Additional Information
Enclosure RatingEnclosed Rated Lamp
Min Compartment SizeLength 17.3 in. Width 9.25 in. Depth 9.25 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLE0IXGH96UI;PLOBUV1NYNEU
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923087134
Each Quantity1
Each Length (in.)3.66
Each Width (in.)3.66
Each Height (in.)11.34
Each Weight (lb.)2.30
Each Cube (CuFt.)0.0852
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923087131
Case Quantity12
Case Length (in.)16.10
Case Width (in.)10.60
Case Height (in.)25.60
Case Weight (lb.)29.80
Case Cube (CuFt.)2.4517
