Discontinued – Suggested Replacement: S23167

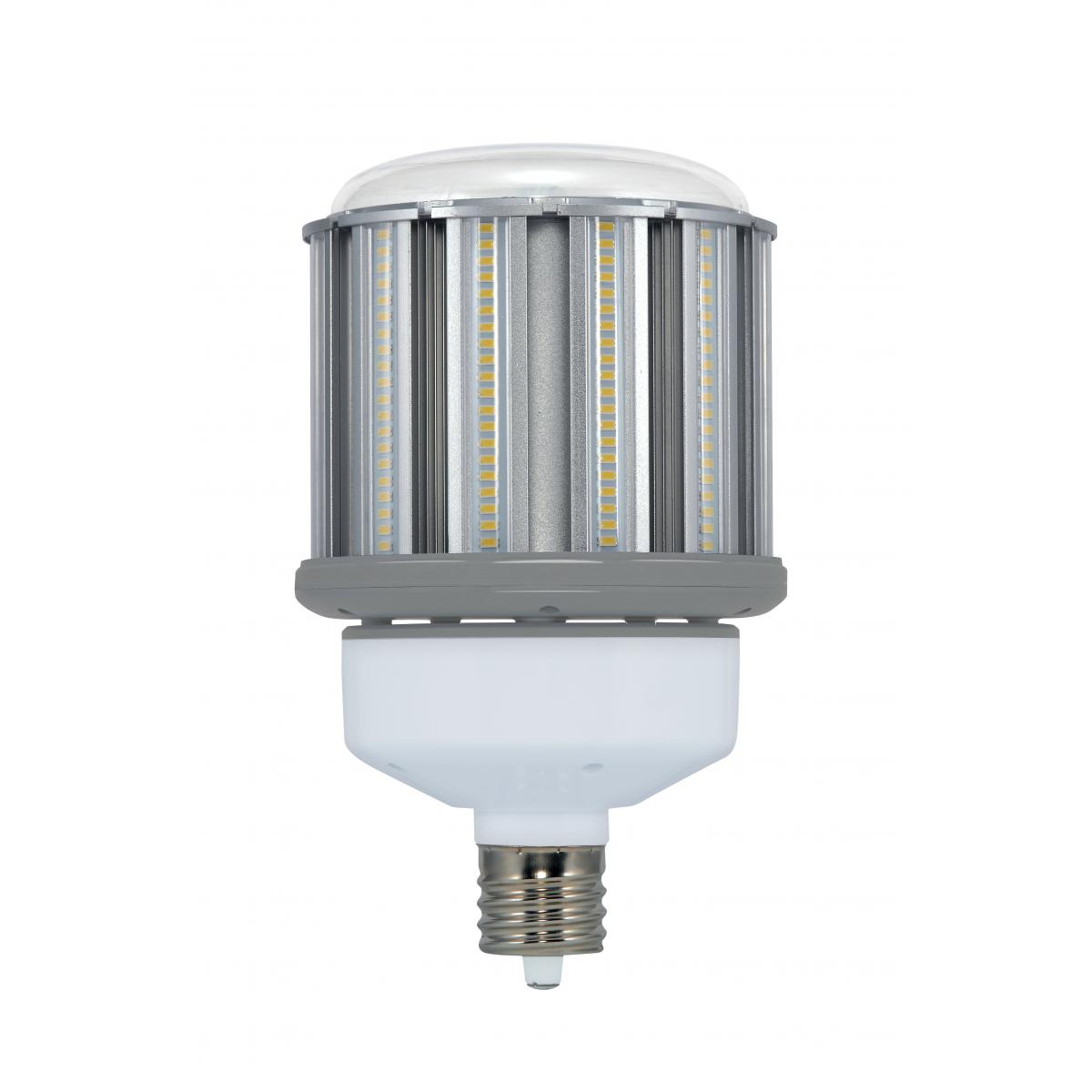

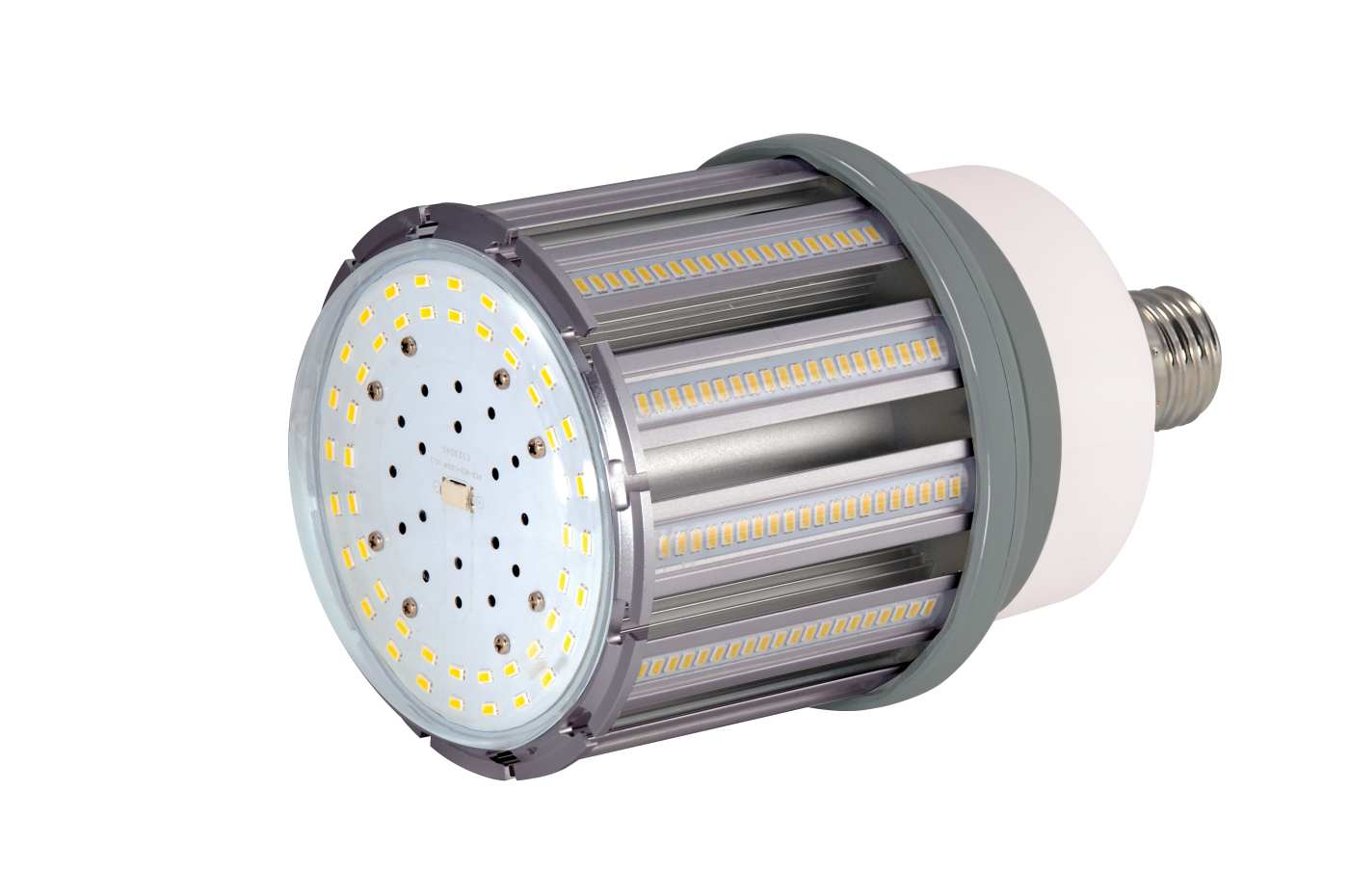

S8715 80W/LED/HID/50K/277-347V/EX39

S8715

80W/LED/HID/50K/277-347V/EX39

80 Watt LED HID Replacement; 5000K; Mogul extended base; 277-347 Volt


Lights

S8715

80W/LED/HID/50K/277-347V/EX39

80 Watt LED HID Replacement; 5000K; Mogul extended base; 277-347 Volt

Specifications

General
StatusDiscontinued
SubstituteS23167
Watts80W
Incandescent Equivalent400W
Fluorescent Equivalent100W
HID Equivalent320W
Volts277V-347V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+

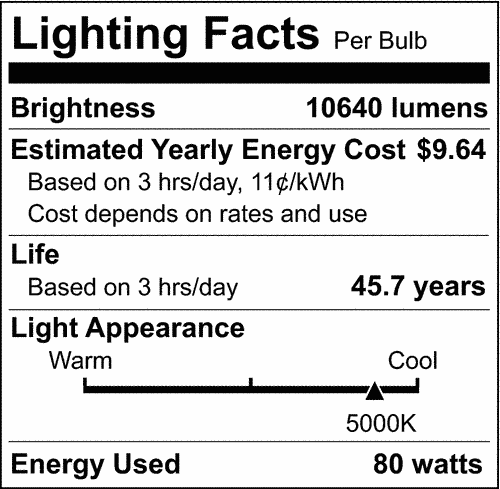

Lumens10640L
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Ballasting RequirementsBallast Bypass-Direct wire only 277-347V
Electrical
Watts80W
Incandescent Equivalent400W
Fluorescent Equivalent100W
HID Equivalent320W
Volts277V-347V
Ballasting RequirementsBallast Bypass-Direct wire only 277-347V
Working VoltageAC 250-380V
Operating Frequency50-60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens10640L
Beam Spread300
DimmableNon-Dimmable
Power Factor0.93
Hours Rated50000
Operating PositionUniversal
Operating Temperature-20C (-4F) to +65C (+149F)
Physical
MOL9.25
MOD5.88
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Lens FinishClear
Housing ColorWhite/Grey
Weight (lb.)3.62
Additional Information
IncludesSafety chain
Min Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Installation NotesNot for use in vapor tight fixtures.
Warranty5-Years
Compliance
Safety ListingcULus
Location RatingDamp
DLC ApprovedNo
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923087158
Each Quantity1
Each Length (in.)7.40
Each Width (in.)7.40
Each Height (in.)10.70
Each Weight (lb.)4.36
Each Cube (CuFt.)0.3391
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923087155
Case Quantity4
Case Length (in.)15.40
Case Width (in.)15.40
Case Height (in.)11.80
Case Weight (lb.)19.62
Case Cube (CuFt.)1.6195
