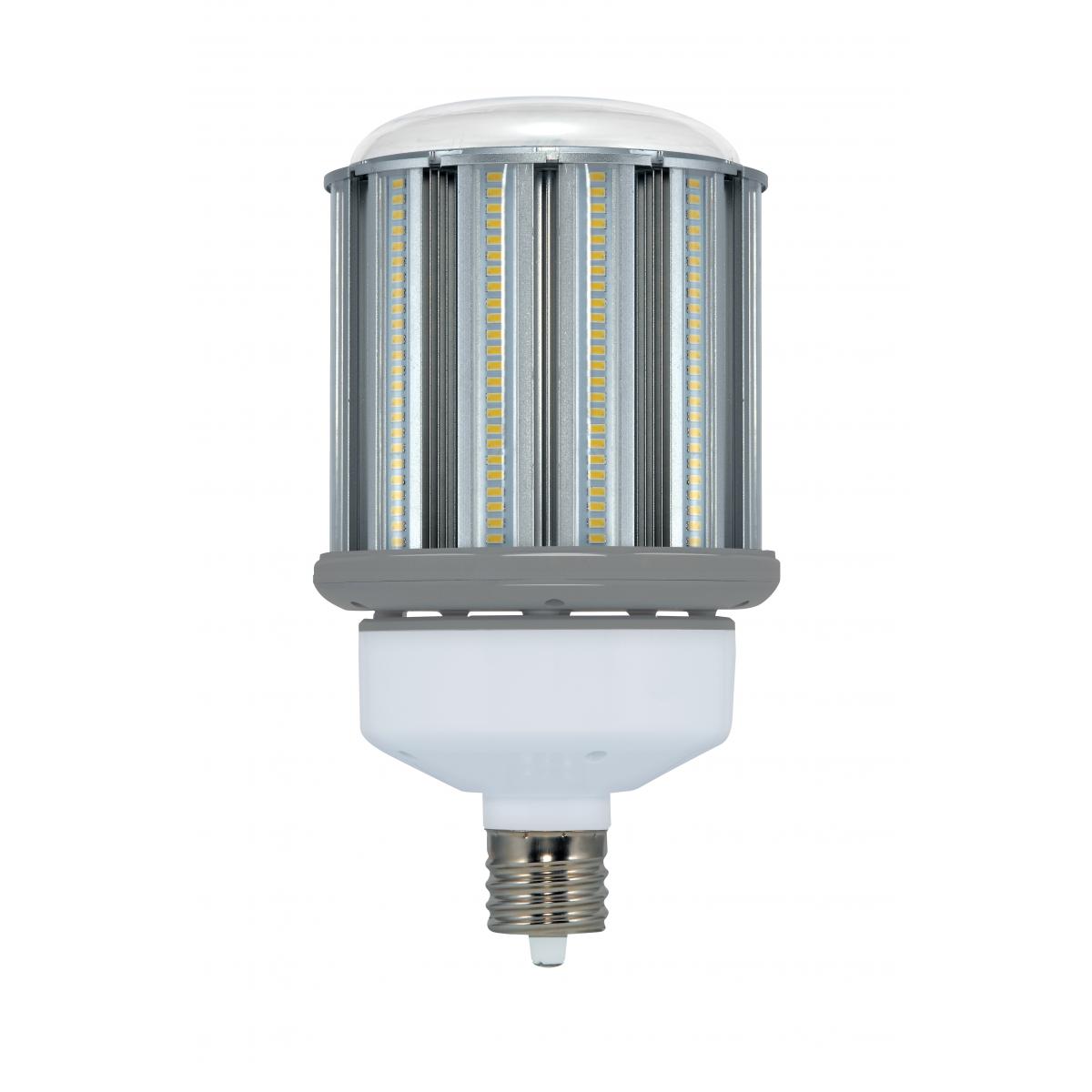

S8717

120W/LED/HID/50K/277-347V/EX39

Discontinued - Suggested Replacement: S28717
  • 120 Watt - LED HID Replacement
  • 5000K
  • Mogul extended base
  • 277-347 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
S8717 SpecificationsSA2111 Hi-Pro LED 277-347V Lamps PI Sheet 5 17
Tools
Lighting Layout Analysis For S8717
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
120 Watt - LED HID Replacement; 5000K; Mogul extended base; 277-347 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass-Direct wire only 277-347V
Lamp FilamentLED
Fixture TypeCorncob
IncludesSafety chain
StatusObsolete
Most Current GenerationS28717
Working VoltageAC 250-380V
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.433-0.346A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Minimum Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv200W
Incandescent Equivalent750W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempNatural Light
CRI80+
Operating Frequency50-60Hz
Operating Temp-20C (-4F) to +65C (+149F)
HID Equivalent600W
Lumens16000L
Volts277V-347V
Watts120W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhiteGrey
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps5.88
MOL10.38
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsExempt - Base Not Regulated
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
IP RatingIP65
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923087172
Case Cube1.7828
Case Height12.99
Case Length15.4
Case Quantity4
Case UPC10045923087179
Case Weight21.4
Case Width15.4
EA Cube0.3768
EA Height11.89
EA Length7.4
EA Quantity1
EA Weight4.9
EA Width7.4
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length10.38
Web Width5.88
