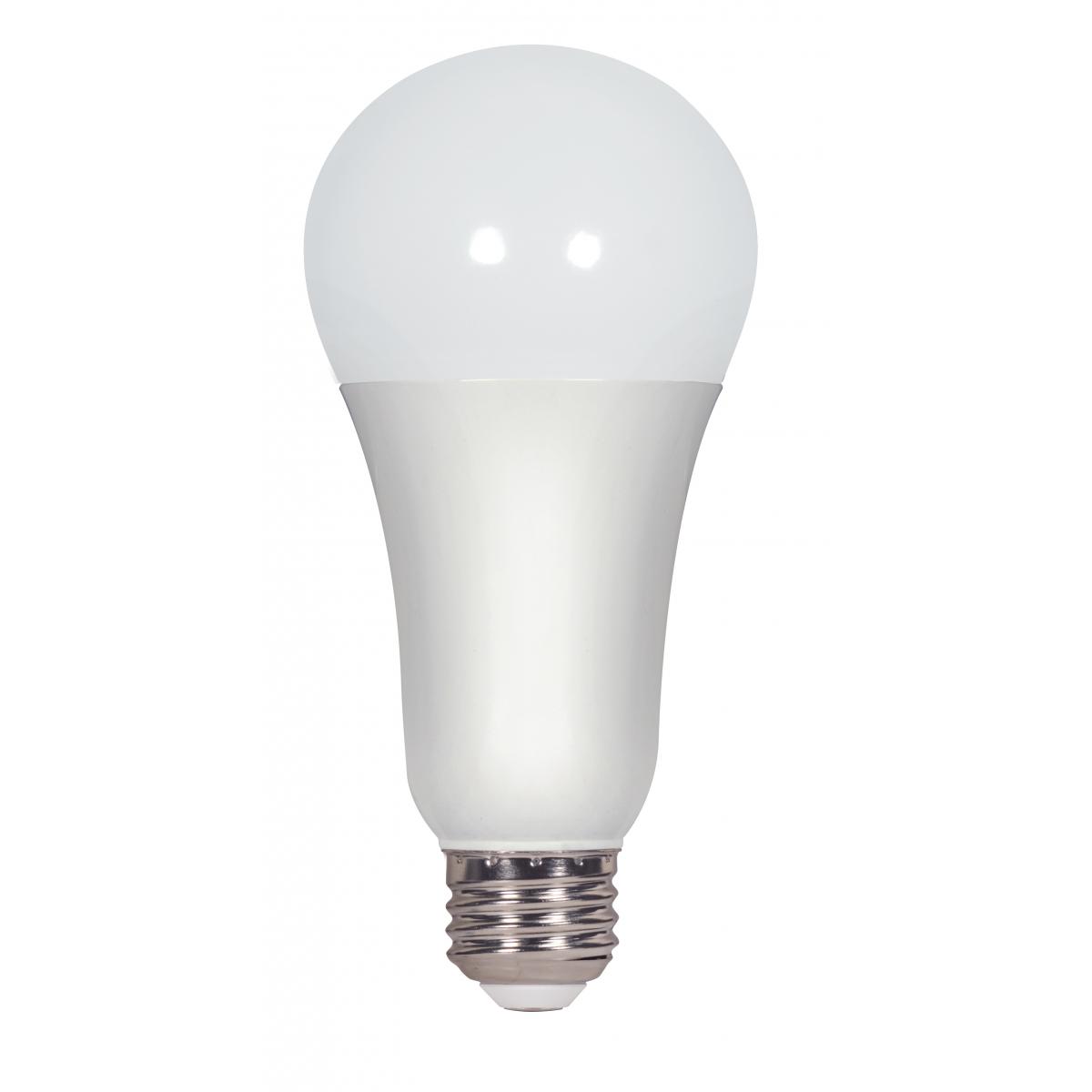

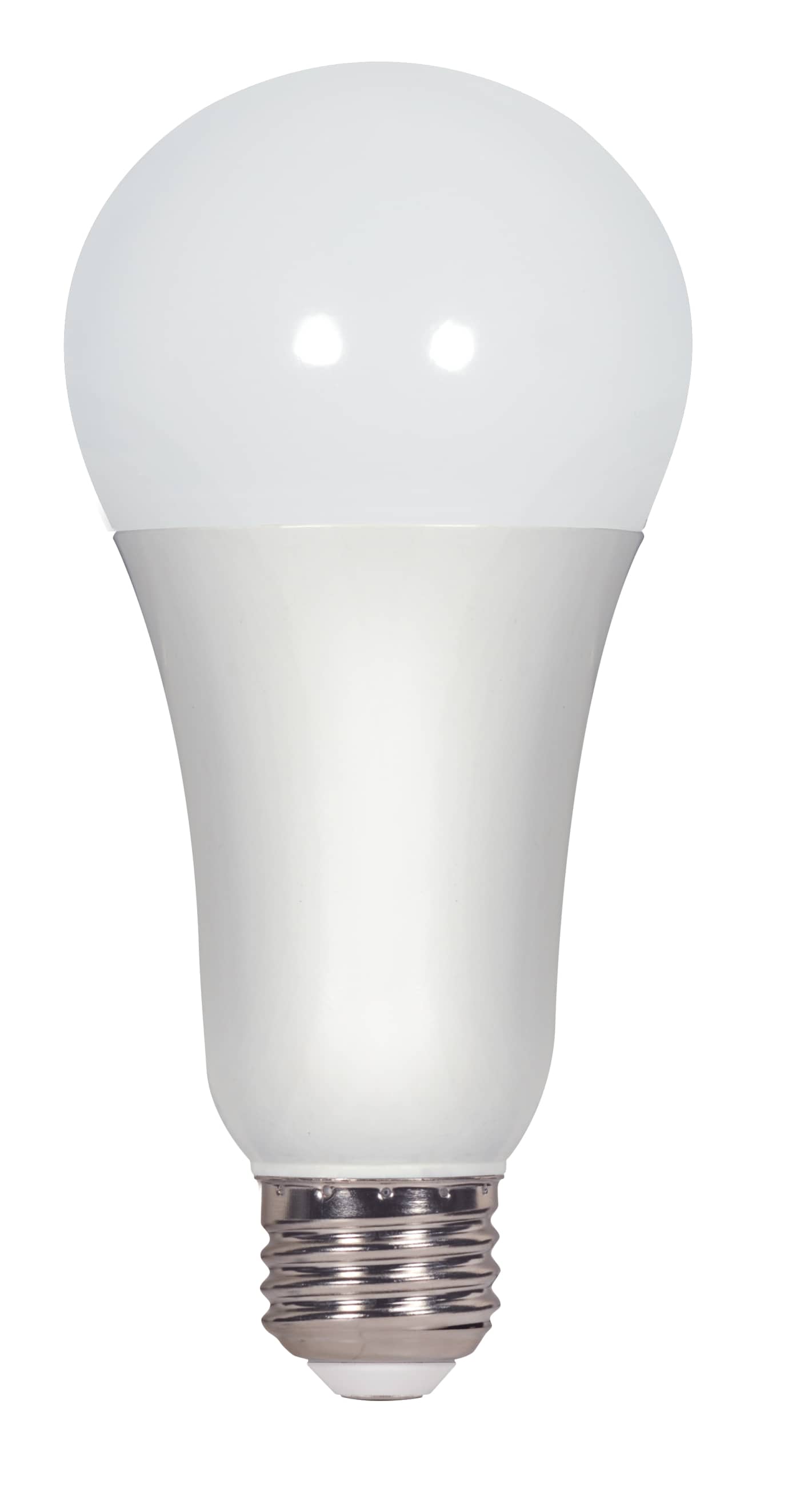

16A21/LED/50K/ND/120V - S8788
S8788

16A21/LED/50K/ND/120V

Discontinued - Suggested Replacement: S28788
  • 16 watt
  • A21 LED
  • 5000K
  • Medium base
  • 220' beam spread
  • 120 volts
location_rating^damp^1
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S8788 SpecificationsS8788 Photometrics.ies100W Replacement omni-directional LED A21 lampsS8788 Lighting Facts Label
Tools
Lighting Layout Analysis For S8788
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
16 watt; A21 LED; 5000K; Medium base; 220' beam spread;120 volts
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeType A
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.133A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
Power Factor0.94
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated15000
Beam Angle (degree)220
Color TempNatural Light
CRI80+
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1600L
Volts120v
Watts16W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA21
MOD Lamps2.63
MOL5.5
Additional Info
Warranty2-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
US State BanCA
Packaging
UPC045923087882
Case Cube1.3473
Case Height14.41
Case Length15.55
Case Quantity24
Case UPC10045923087889
Case Weight9.22
Case Width10.39
EA Cube0.0387
EA Height6.3
EA Length3.46
EA Quantity1
EA Weight0.32
EA Width3.07
Inner Cube0.2738
Inner Height6.65
Inner Length9.72
Inner Quantity6
Inner UPC20045923087886
Inner Weight2.16
Inner Width7.32
Pack TypeBox
Web Length5.5
Web Width2.63
