S8906

30W/LED/HID/WP/3K/E26/100-277V

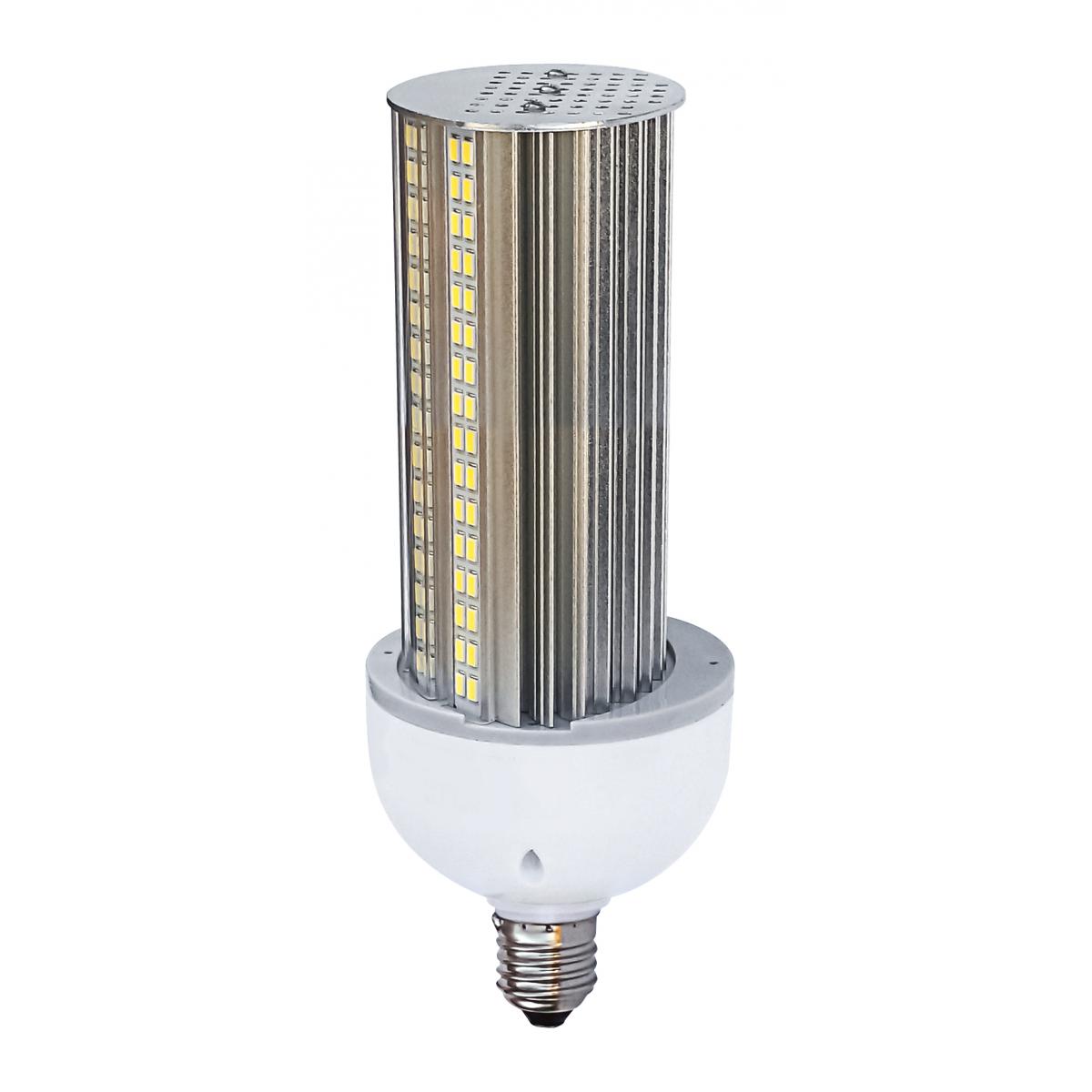

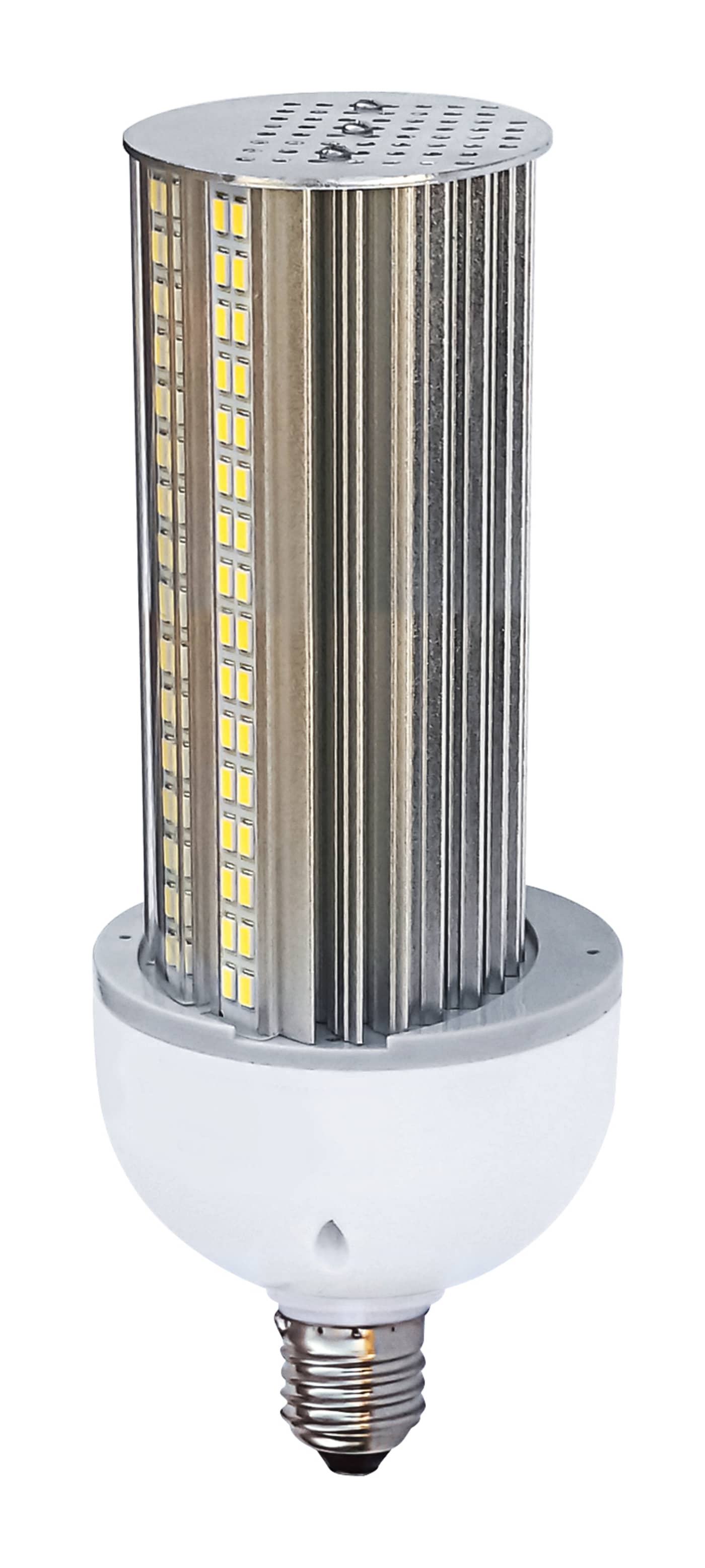

30 Watt LED Hi-lumen directional lamp for commercial fixture applications; 3000K; Medium base; 100-277 Volt

S8906 30W/LED/HID/WP/3K/E26/100-277V

S8906

30W/LED/HID/WP/3K/E26/100-277V

30 Watt LED Hi-lumen directional lamp for commercial fixture applications; 3000K; Medium base; 100-277 Volt

Specifications

General
StatusActive
Watts30
HID Equivalent175
Volts100V-277V
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
CCT (Kelvin)3000
TemperatureWarm White
CRI85
Lumens4300
Beam Spread180
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength 11 in. Width 8 in. Depth 8 in.
Electrical
Watts30
HID Equivalent175
Volts100V-277V
Operating Frequency50/60 Hz
CCT (Kelvin)3000
TemperatureWarm White
CRI85
Lumens4300
Beam Spread180
DimmableNon-Dimmable
Hours Rated50000
Burning PositionHorizontal Operation
Operating Temperature-29C (-20.2F) to a maximum of +60C (+140F)
Physical
MOL8.09
MOD3.56
ShapeCorncob
BaseMedium
ANSI BaseE26
FinishClear
Lens FinishClear
Housing ColorWhite
Additional Information
Enclosure RatingEnclosed Rated Lamp
Min Compartment SizeLength 11 in. Width 8 in. Depth 8 in.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus Classified
Location RatingDamp
Energy StarNo
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923089060
Each Quantity1
Each Length (in.)4.02
Each Width (in.)4.02
Each Height (in.)10.32
Each Weight (lb.)1.76
Each Cube (CuFt.)0.0936
Pack TypeBox
Inner UPC20045923089064
Inner Quantity6
Inner Length (in.)8.63
Inner Width (in.)12.69
Inner Height (in.)10.91
Inner Weight (lb.)11.29
Inner Cube (CuFt.)0.6705
Case UPC10045923089067
Case Quantity12
Case Length (in.)18.04
Case Width (in.)13.28
Case Height (in.)11.50
Case Weight (lb.)24.47
Case Cube (CuFt.)1.5461
