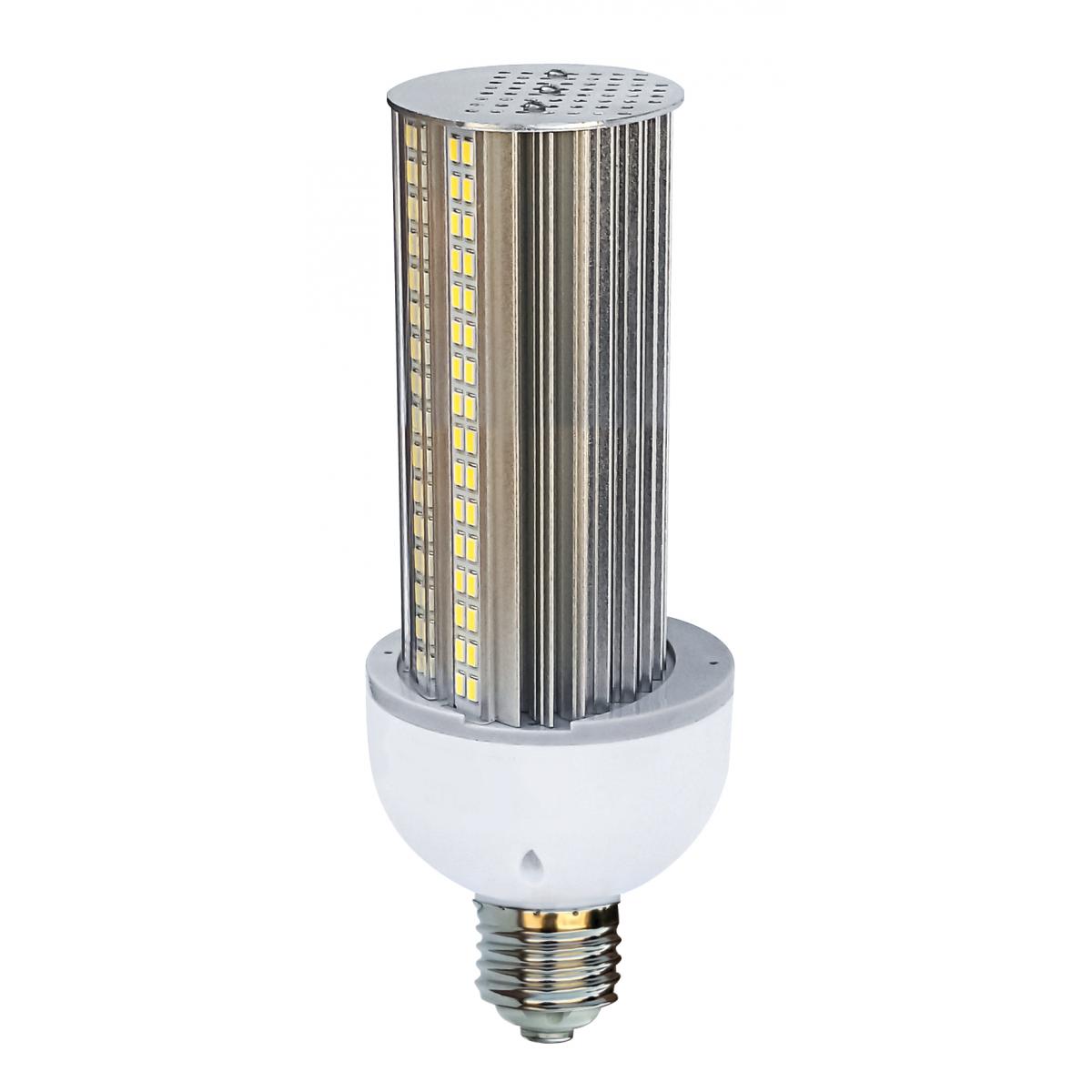

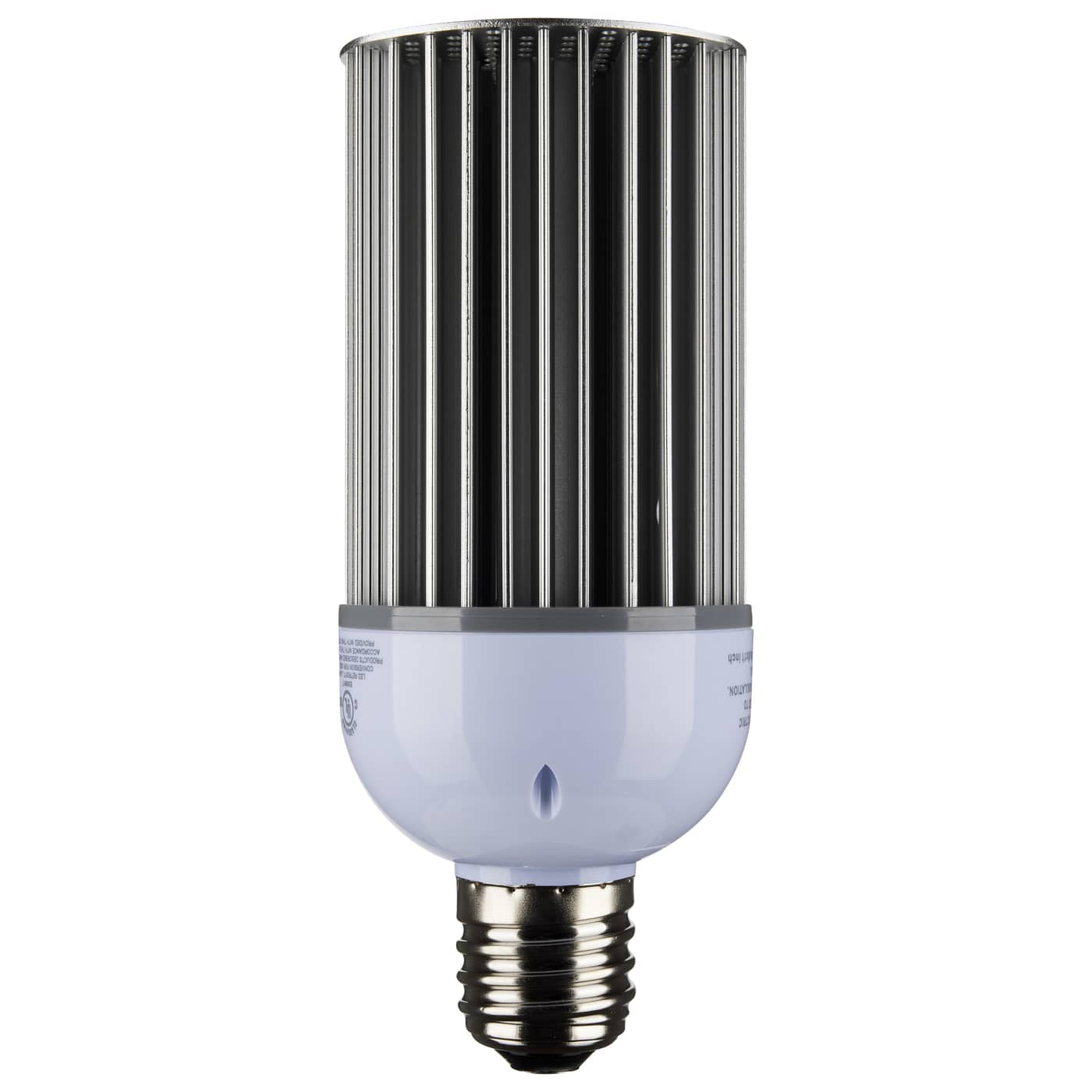

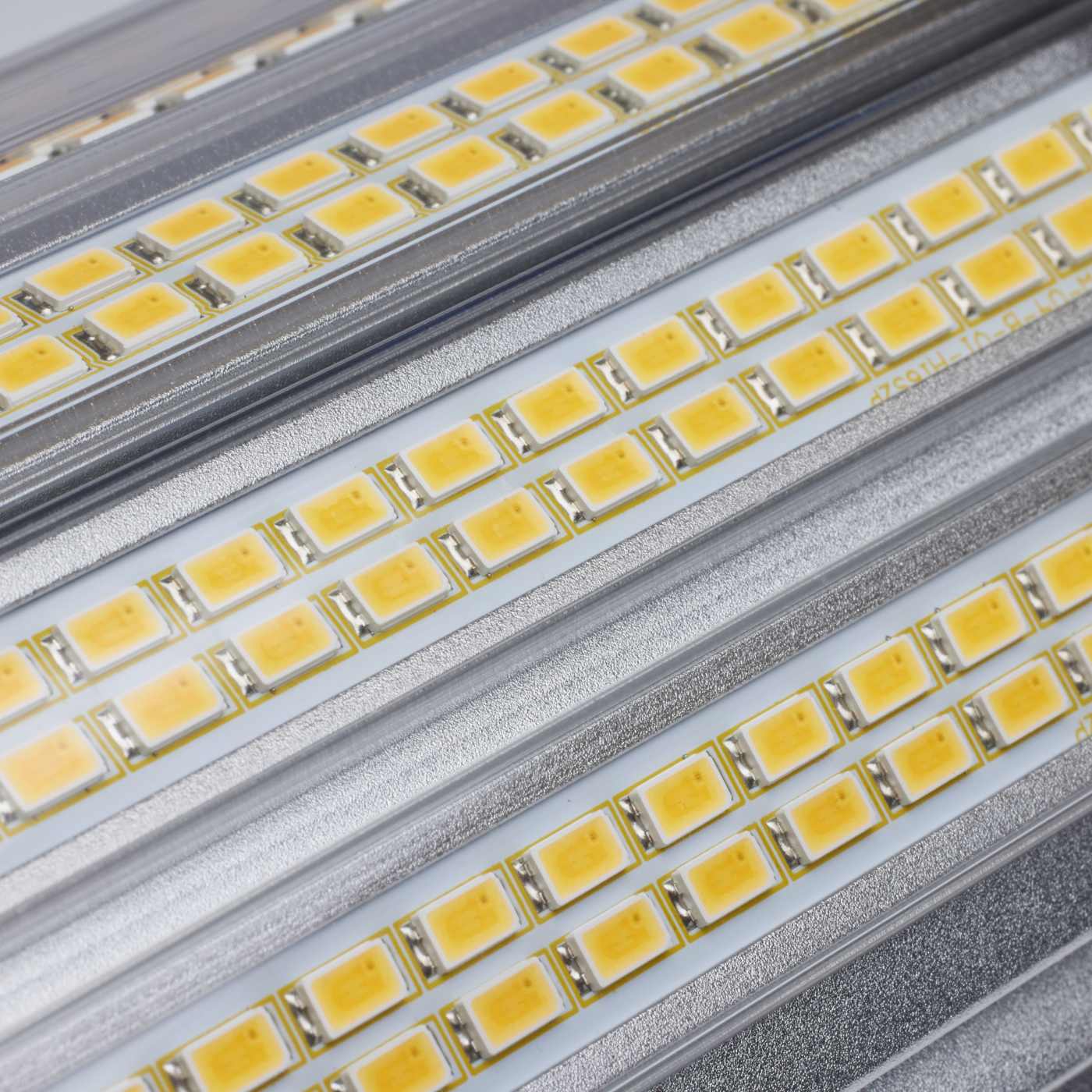

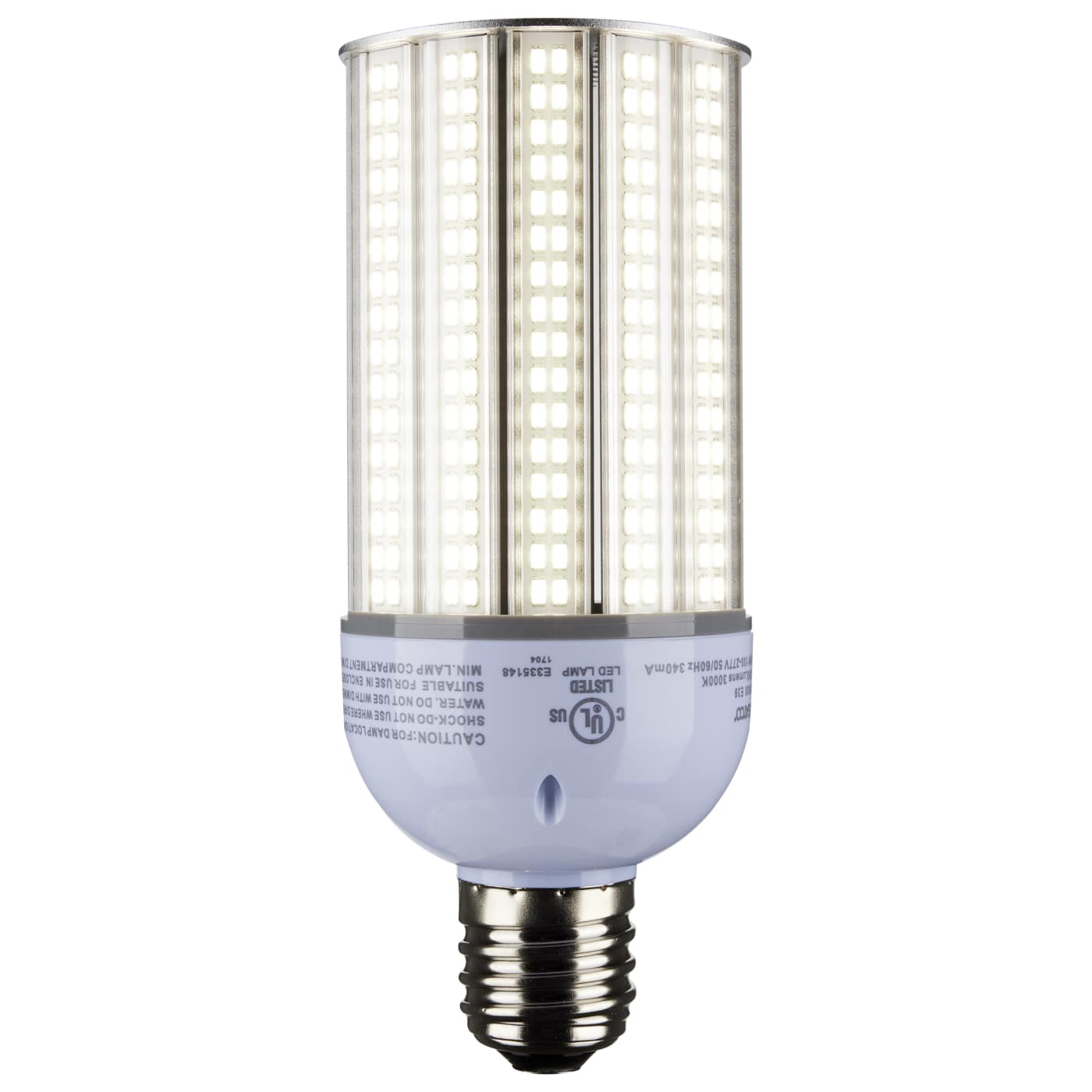

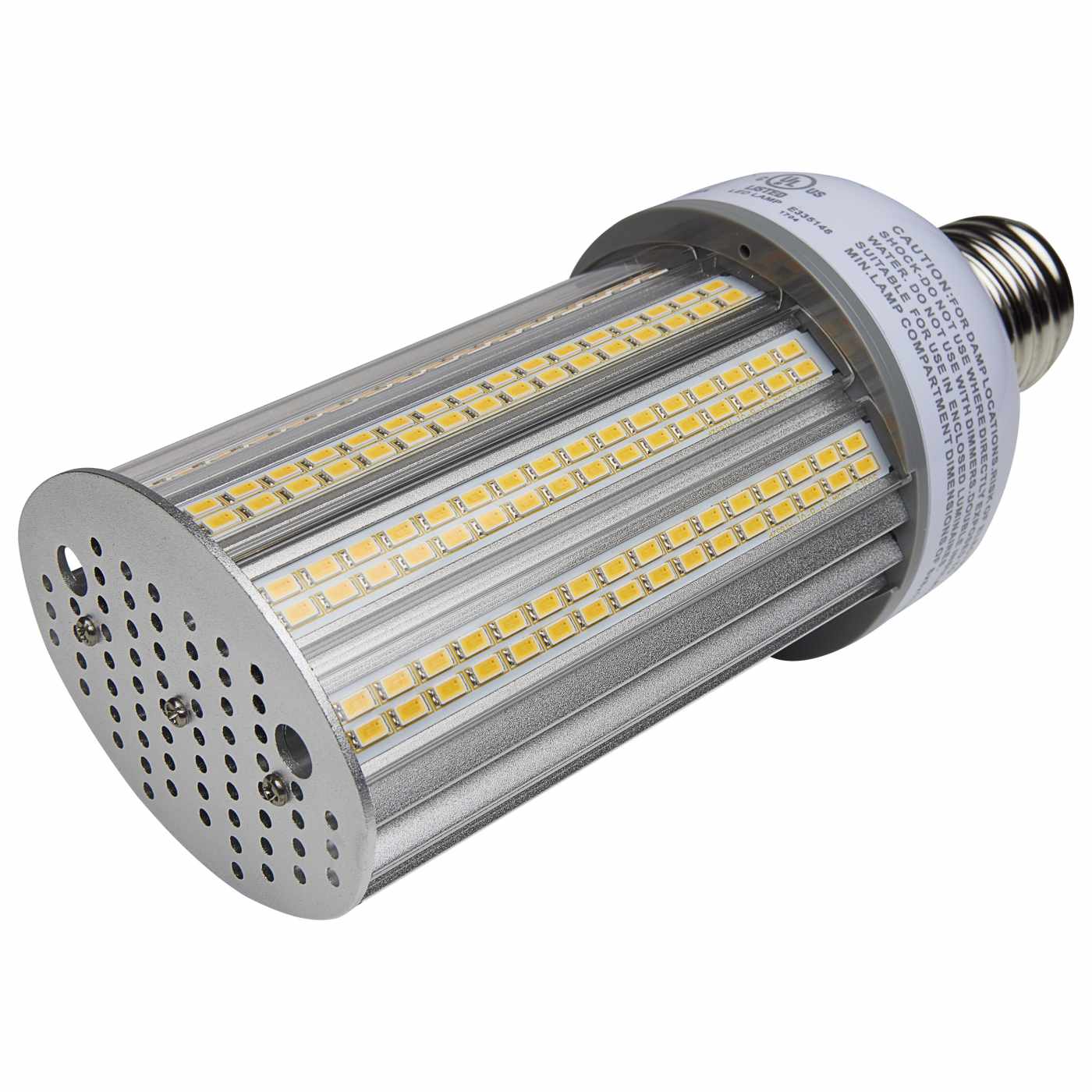

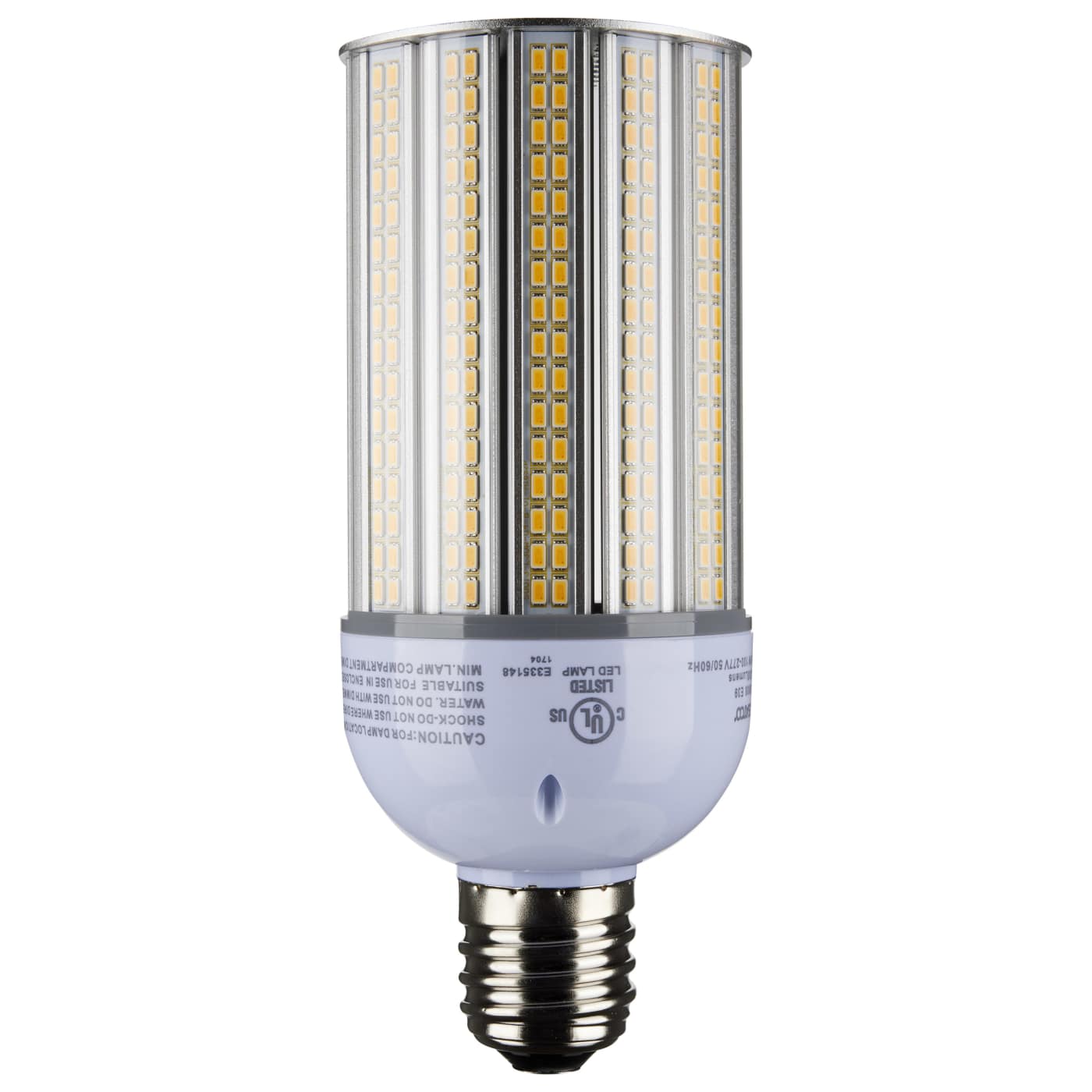

30W/LED/HID/WP/5K/E39/100-277V
30 watt LED Hi-lumen, directional LED for commercial fixture applications; 5000K; Mogul base; 100-277 volts
Features
- High Lumen directional LED for use in wall pack, canopy, shoe box, or cobra head fixture
- Replaces HID, CFL, and Incandescent
- Ballast by-pass - Direct wire only 100V - 277V
- UL approved for totally enclosed fixtures
- Horizontal operation
- DLC Listed
- Emits no UV light / Contains no mercury (Hg)
- 5 year limited warranty
- cULus listed
| Minimum Compartment Size | ||
| Length | Width | Depth |
| 11 inch | 8 inch | 8 inch |
Optional accessory: In-line surge protector 80-929
| Product Line | Hi-Pro |
| UPC | 045923089091 |
| Input Voltage | 100 - 277 |
| Watts | 30 |
| Operating Frequency | 50/60Hz |
| HID Equivalent | 150W |

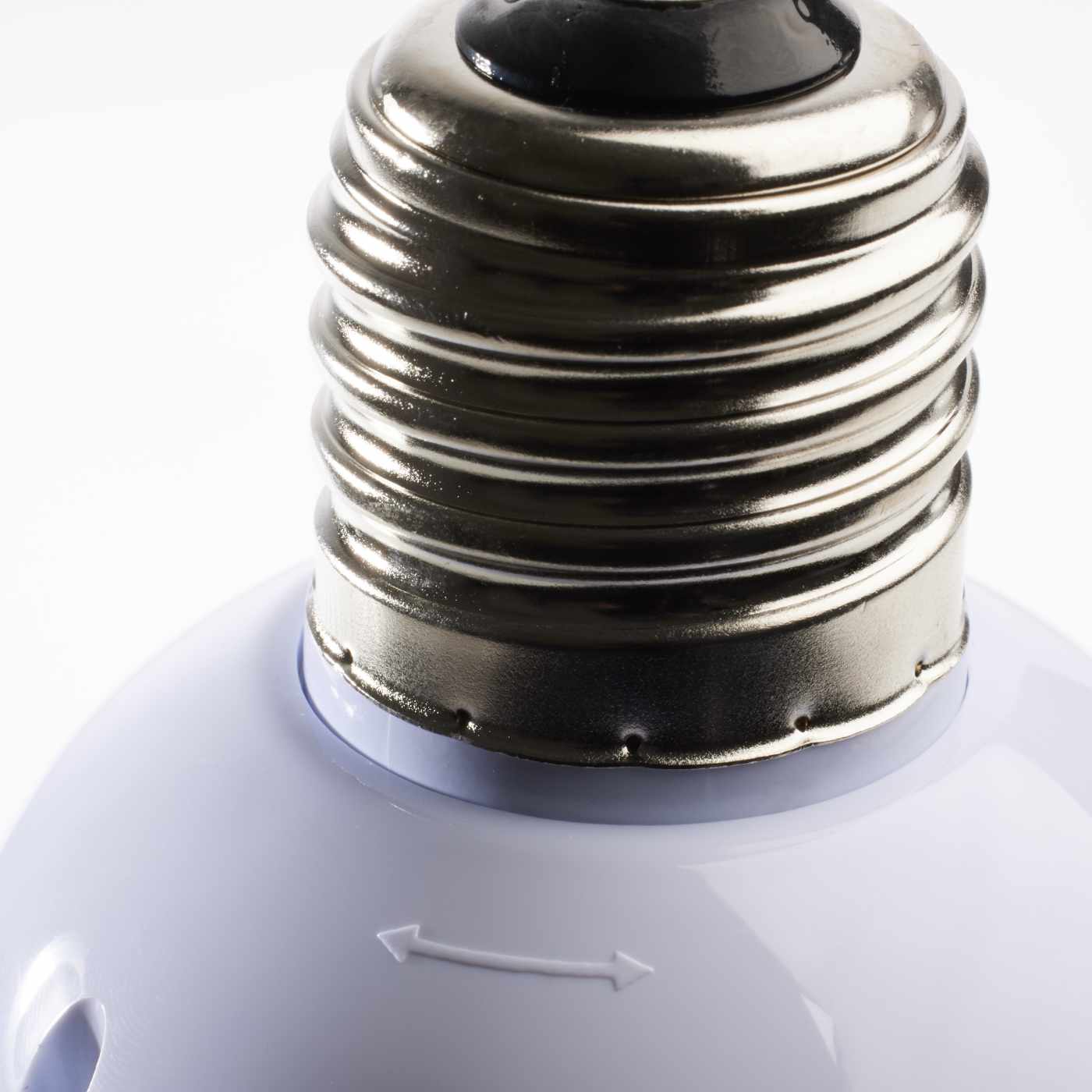

| Base | Mogul |
| ANSI Base | E39 |
| Lamp Code | 30W/LED/HID/WP/5K/E39/100-277V |
| Dimmable/Non-Dimmable | Non-Dimmable |
| Finish | White |
| MOL In Inches | 8-11/16'' |
| MOD In Inches | 3-9/16'' |
| Initial Lumens | 4300 |
| Average Rated Hours | 50000 |
| Kelvin Temp | 5000 |
| Color | Natural Light |
| CRI | 85 |
| Beam Spread Deg | 180 |
| Burning Position | Horizontal Operation |
| Operating Temperature | -29C (-20F) to a maximum of +60C (+140F) |
| Pack | 12 |
| Package Type | Box |
| CEC Status | Lawful for sale in California |
| DLC ID: | P19R7R69 |
| RoHS Compliant | Yes |
| UL or ETL Listed | Yes |
| UL Classification | cULus - Damp Location Rated |
| Warranty | 5 Year Limited |
