| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Fixture Type | Corncob |
| Status | Discontinued |
| Most Current Generation | S28930 |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | No Finish |
| Amps | 0.400-0.144A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lensed | True |
| Minimum Compartment Size | Length: 11 in. Width: 8 in. Depth: 8 in. |
| Operating Position | Horizontal |
| Power Factor | 0.91 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Incandescent Equivalent | 125W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 180 |
| Color Temp | Natural Light |
| CRI | 85+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -29C (-20.2F) to +60C (+140F) |
| HID Equivalent | 250W |

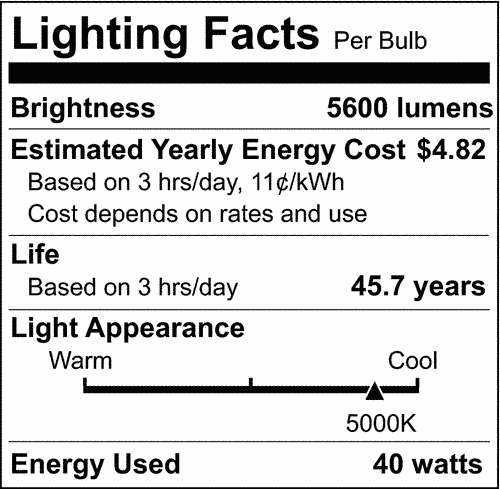

| Lumens | 5600L |
| Volts | 120V-277V |
| Watts | 40W |
| Lamp Base | Mogul |
|---|---|
| Finish | Clear |
| Housing Color | WhiteGrey |
| ANSI Base | E39 |
| Lamp Type | Corncob |
| MOD Lamps | 3.56 |
| MOL | 10.63 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| CO Status | Lawful for sale |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified |
| CA Compliance Text | Lawful for sale |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923089275 |
|---|---|
| Case Cube | 1.7649 |
| Case Height | 12.73 |
| Case Length | 18.04 |
| Case Quantity | 12 |
| Case UPC | 10045923089272 |
| Case Weight | 28.66 |
| Case Width | 13.28 |
| EA Cube | 0.1079 |
| EA Height | 11.54 |
| EA Length | 4.02 |
| EA Quantity | 1 |
| EA Weight | 2.12 |
| EA Width | 4.02 |
| Inner Cube | 0.7694 |
| Inner Height | 12.14 |
| Inner Length | 8.63 |
| Inner Quantity | 6 |
| Inner UPC | 20045923089279 |
| Inner Weight | 13.4 |
| Inner Width | 12.69 |
| Pack Type | Box |
| Web Length | 10.63 |
| Web Width | 3.56 |
