Discontinued – Suggested Replacement: S28932R1
S8931 80W/LED/HID/SB/3K/E39/100-277V

S8931

80W/LED/HID/SB/3K/E39/100-277V

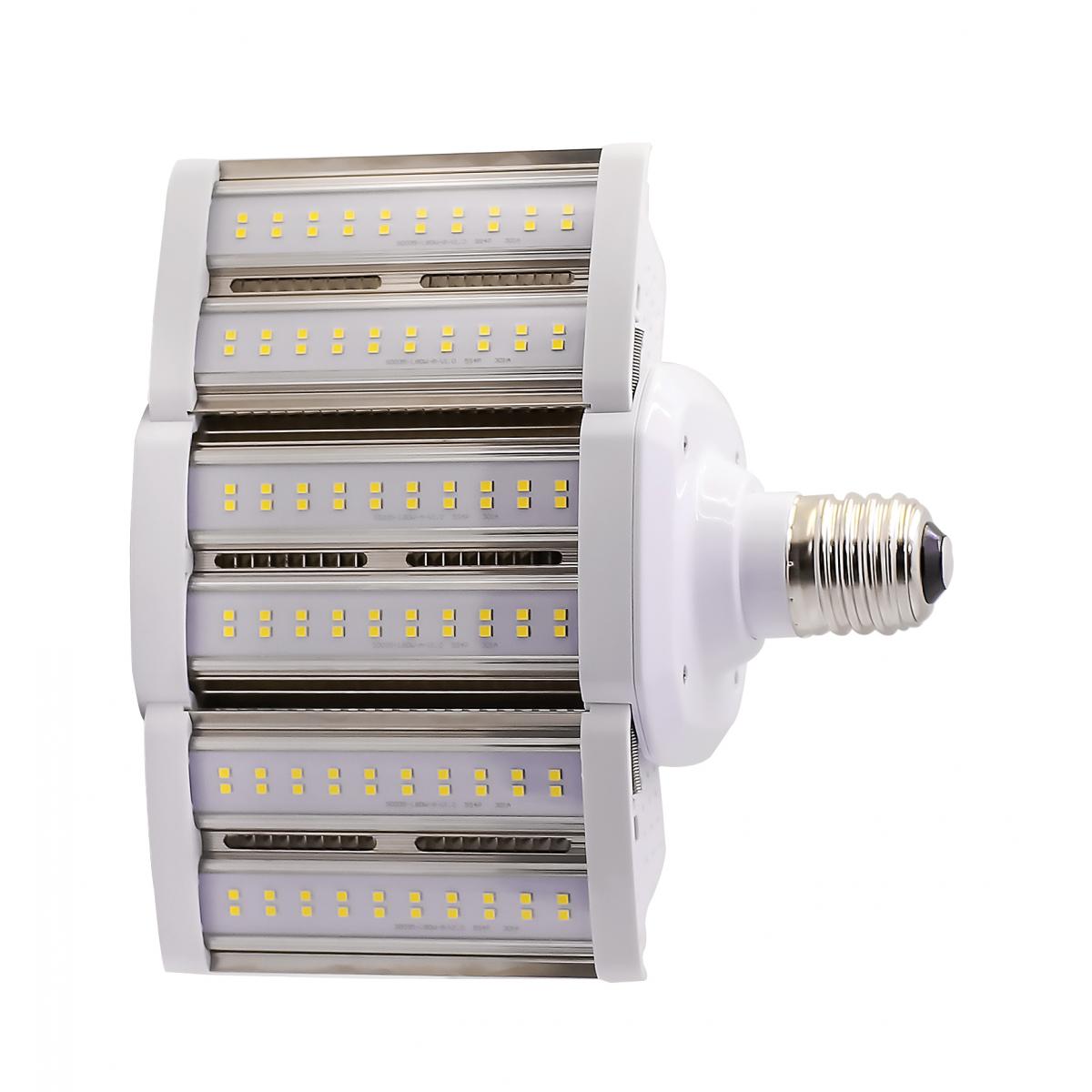

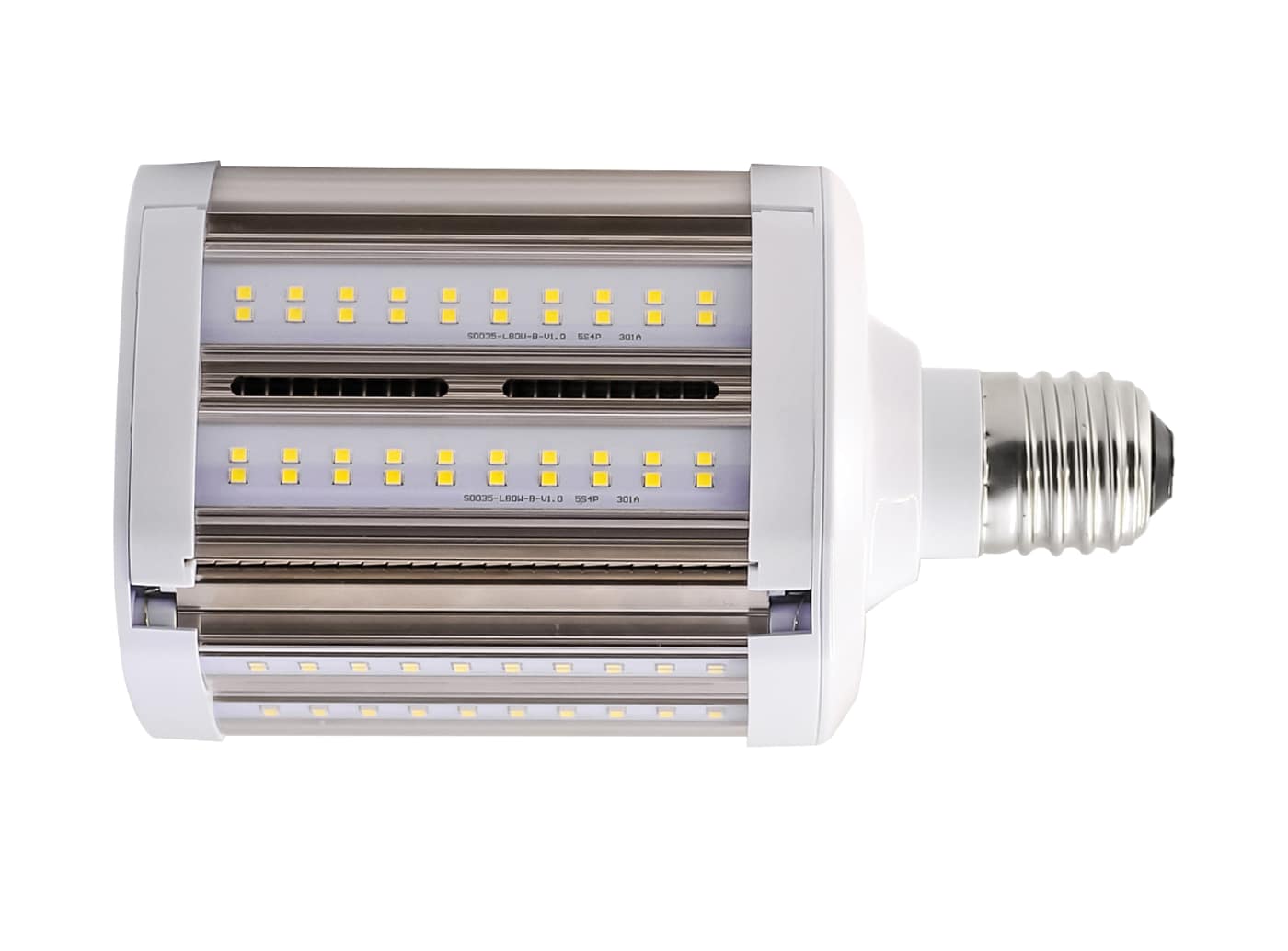

80 Watt LED Hi-lumen shoe box style lamp for commercial fixture applications; 3000K; Mogul base; 100-277 Volt; Ballast bypass - Type B


Lights

S8931

80W/LED/HID/SB/3K/E39/100-277V

80 Watt LED Hi-lumen shoe box style lamp for commercial fixture applications; 3000K; Mogul base; 100-277 Volt; Ballast bypass - Type B

Specifications

General
StatusDiscontinued
SubstituteS28932R1
Watts80W
Incandescent Equivalent400W
HID Equivalent250W
Volts120V-277V
ShapeCorncob
BaseMogul
ANSI BaseE39
FinishClear
CCT (Kelvin)3000K
TemperatureWarm White
CRI80+
Lumens10000L
Beam Spread180
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 9.2 in. Width: 11 in. Depth: 11 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts80W
Incandescent Equivalent400W
HID Equivalent250W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50/60Hz
CCT (Kelvin)3000K
TemperatureWarm White
CRI80+
Lumens10000L
Beam Spread180
DimmableNon-Dimmable
Power Factor>0.9
Hours Rated50000
Operating PositionHorizontal
Operating Temperature-30C (-22F) to +45C (+113F)
Physical
MOL8.69
MOD4.38
ShapeCorncob
BaseMogul
ANSI BaseE39
FinishClear
Lens FinishClear
Housing ColorWhite
Weight (lb.)2.77
Additional Information
Min Compartment SizeLength: 9.2 in. Width: 11 in. Depth: 11 in.
Rated For Enclosed FixtureYes
IP RatingIP64
Installation NotesNot for use in vapor tight fixtures.
Warranty5-Years
Compliance
Safety ListingcULus - Certified; cULus - Classified
Location RatingDamp
DLC ApprovedNo
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923089312
Each Quantity1
Each Length (in.)10.32
Each Width (in.)5.71
Each Height (in.)6.30
Each Weight (lb.)3.46
Each Cube (CuFt.)0.2148
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923089319
Case Quantity4
Case Length (in.)10.91
Case Width (in.)12.02
Case Height (in.)13.20
Case Weight (lb.)15.21
Case Cube (CuFt.)1.0018
