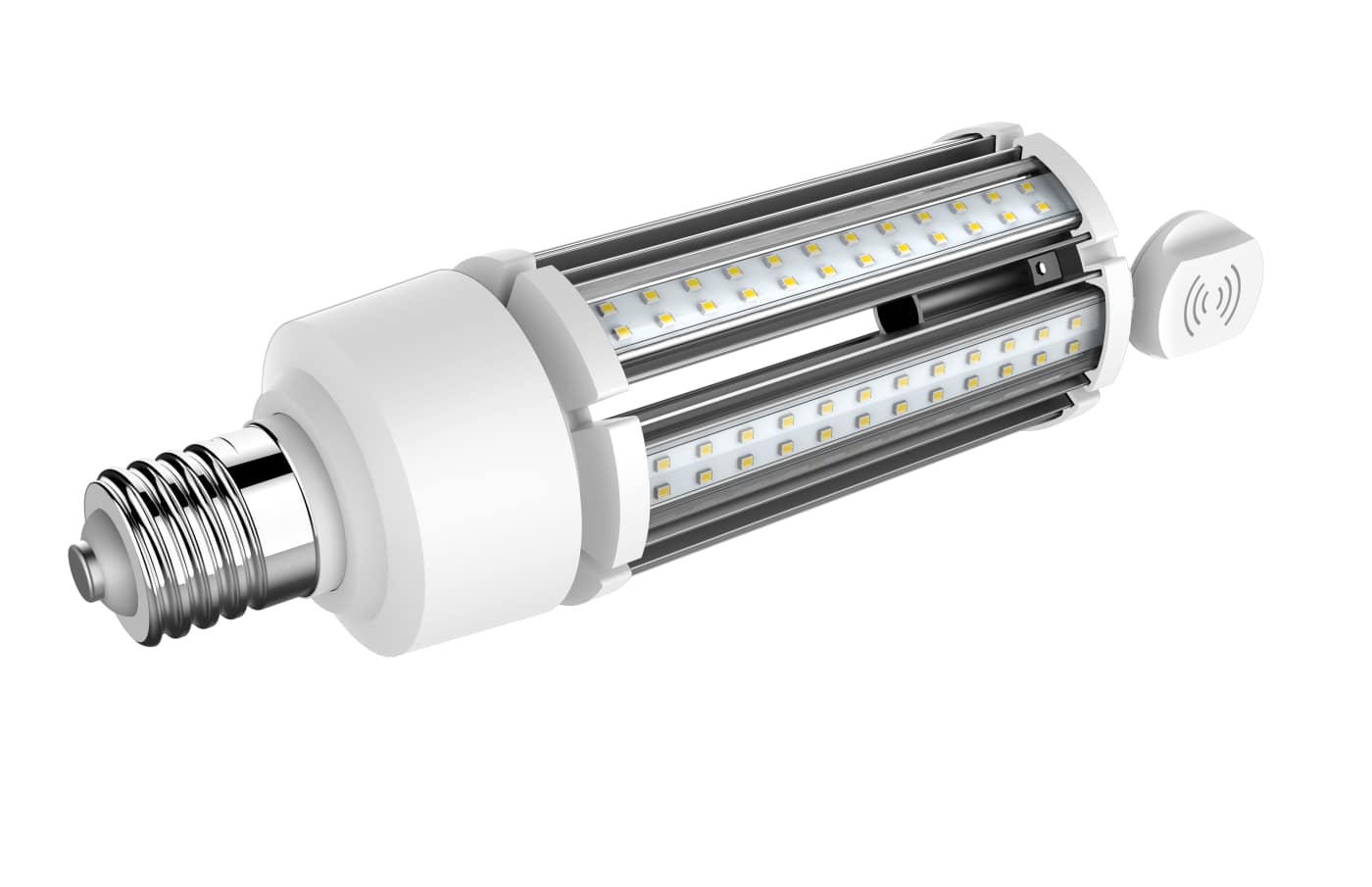

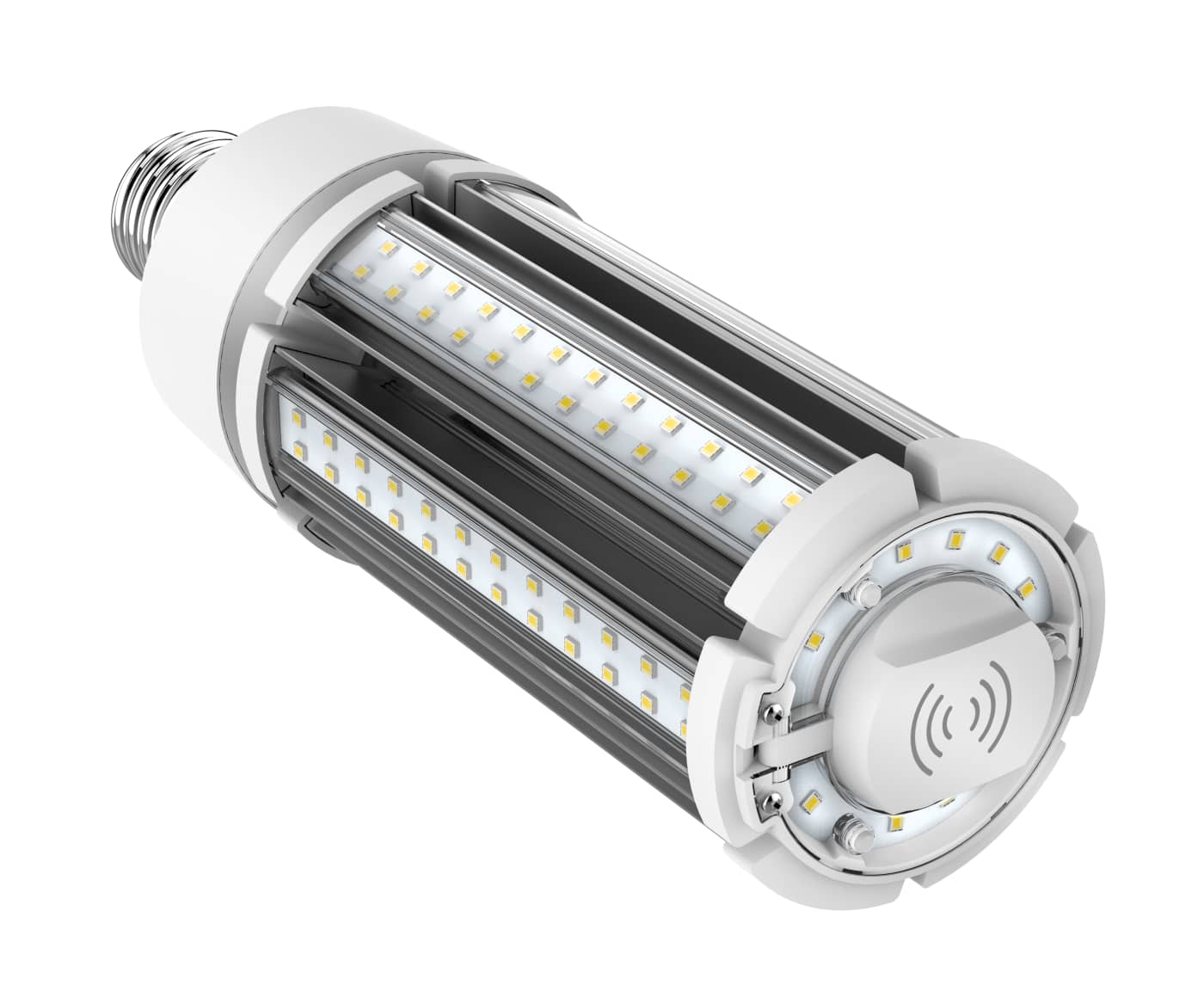

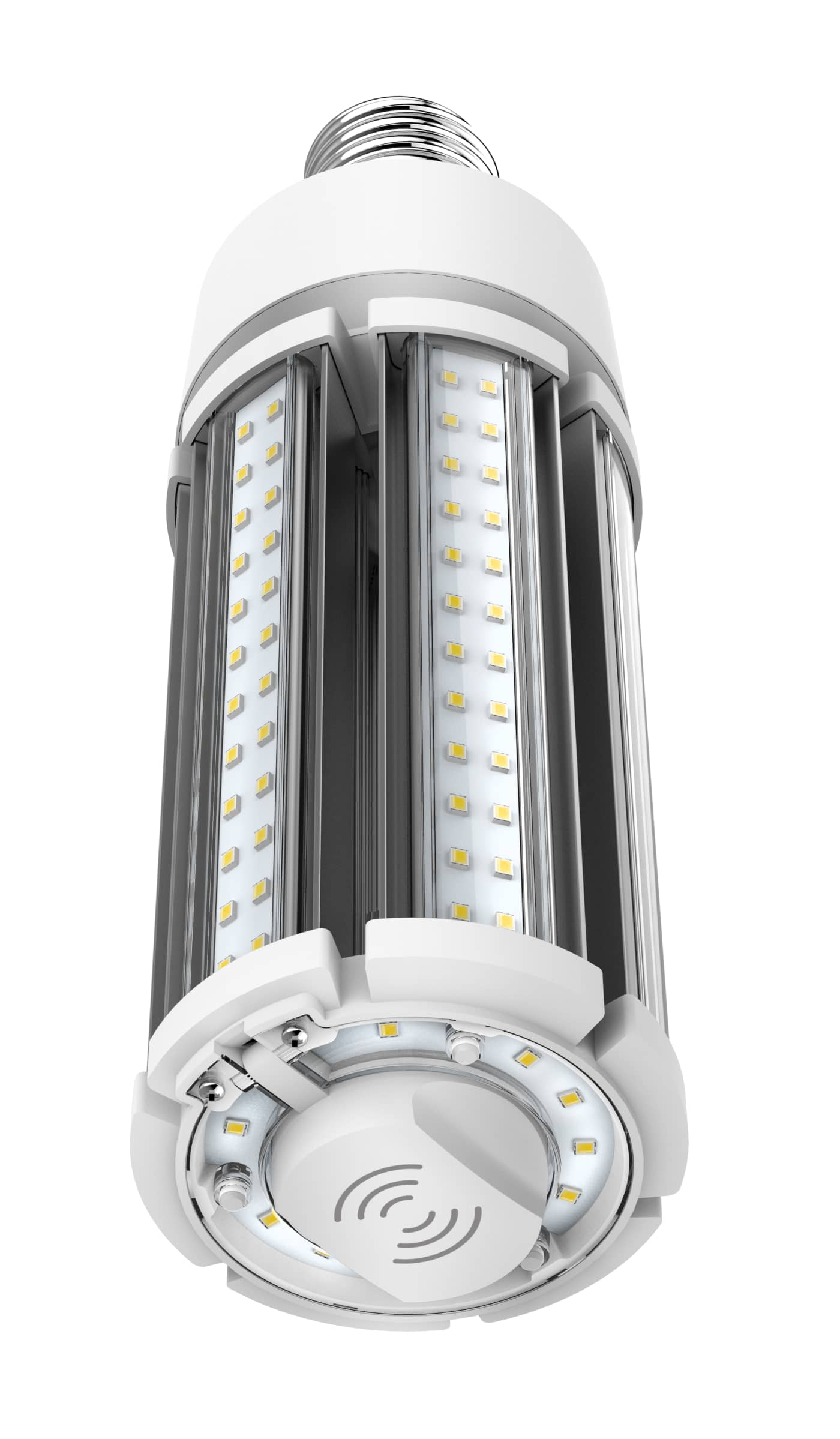

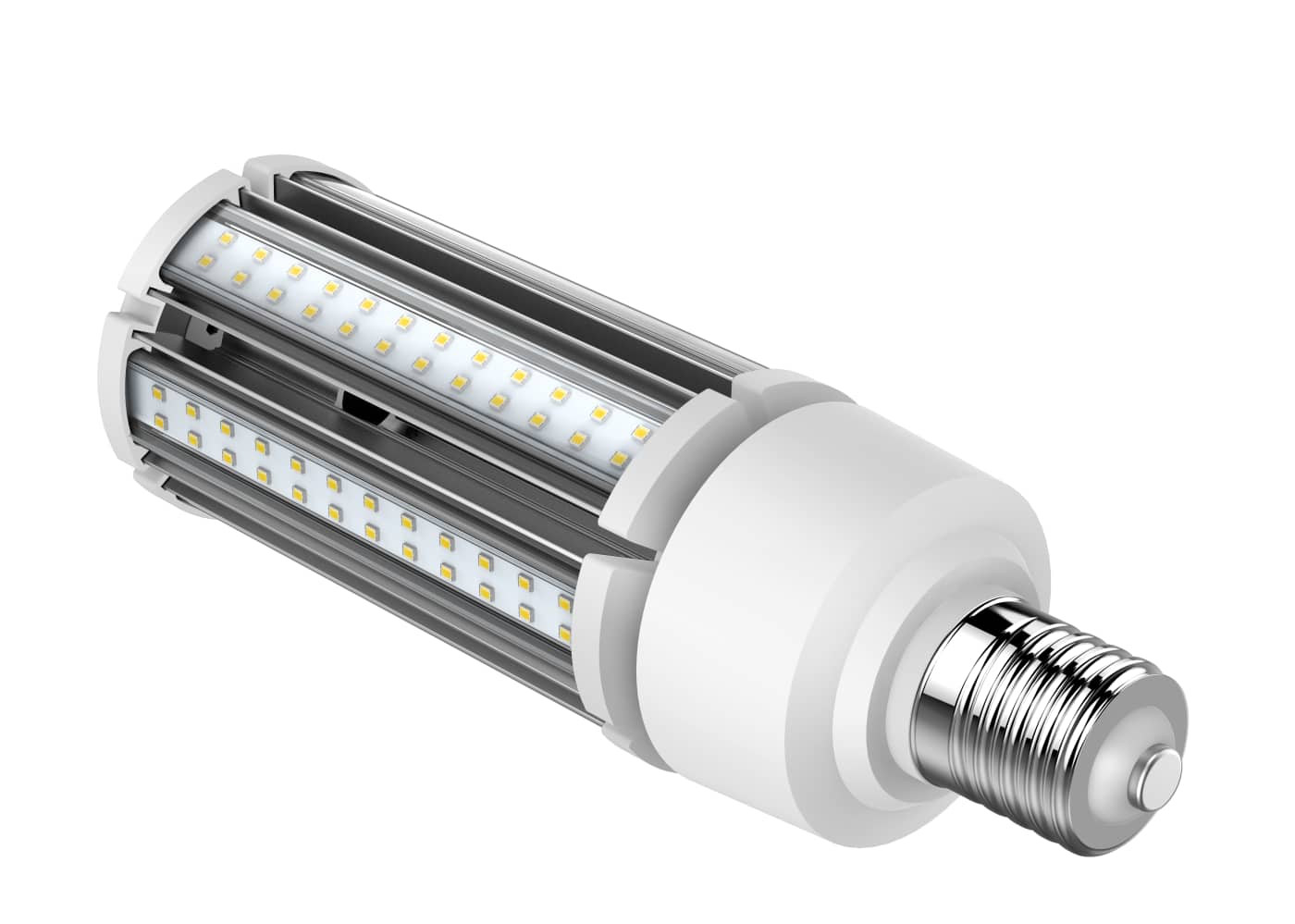

63W/LED/HID/3K/MS/100-277V - S8988
63W/LED/HID/3K/MS/100-277V - S8988
63W/LED/HID/3K/MS/100-277V - S8988
63W/LED/HID/3K/MS/100-277V - S8988
63W/LED/HID/3K/MS/100-277V - S8988
63W/LED/HID/3K/MS/100-277V - S8988
S8988

63W/LED/HID/3K/MS/100-277V

Discontinued
  • 63 Watt LED HID Replacement
  • 3000K
  • Mogul base
  • Type B Ballast Bypass
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S8988 SpecificationsS8988 Instructions.pdfHi-Pro LED lamps with motion sensor
Description
Description
63 Watt LED HID Replacement; 3000K; Mogul base; Type B Ballast Bypass;100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Lamp FilamentLED
MaterialAluminum
Fixture TypeCorncob
StatusDiscontinued
StyleContemporary
Surge ProtectionBuilt-in surge protection
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Additional InfoBuilt-in motion sensor - Detection area 32-feet; 30 second turn off
Amps0.630-0.227A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Minimum Compartment SizeLength: 11 in. Width: 8 in. Depth: 8 in.
Operating PositionUniversal
Photo CellHas Motion Sensor
Power Factor>0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent250W
Electrical
CCT (Kelvin Temp)3000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempWarm White
CRI80+
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +60C (+140F)
HID Equivalent250W
Lumens7875L
Volts120V-277V
Watts63W
Physical
Lamp BaseMogul
FinishClear
Housing ColorWhite
ANSI BaseE39
Lamp TypeCorncob
MOD Lamps3.38
MOL10.88
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP42
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923089886
Case Cube1.5871
Case Height13.58
Case Length16.54
Case Quantity12
Case UPC10045923089883
Case Weight28.18
Case Width12.21
EA Cube0.0949
EA Height12.24
EA Length3.66
EA Quantity1
EA Weight2.07
EA Width3.66
Inner Cube0.6784
Inner Height12.83
Inner Length11.61
Inner Quantity6
Inner UPC20045923089880
Inner Weight13.49
Inner Width7.87
Pack TypeBox
Web Length10.88
Web Width3.38
