| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| Diameter | 5.75 |

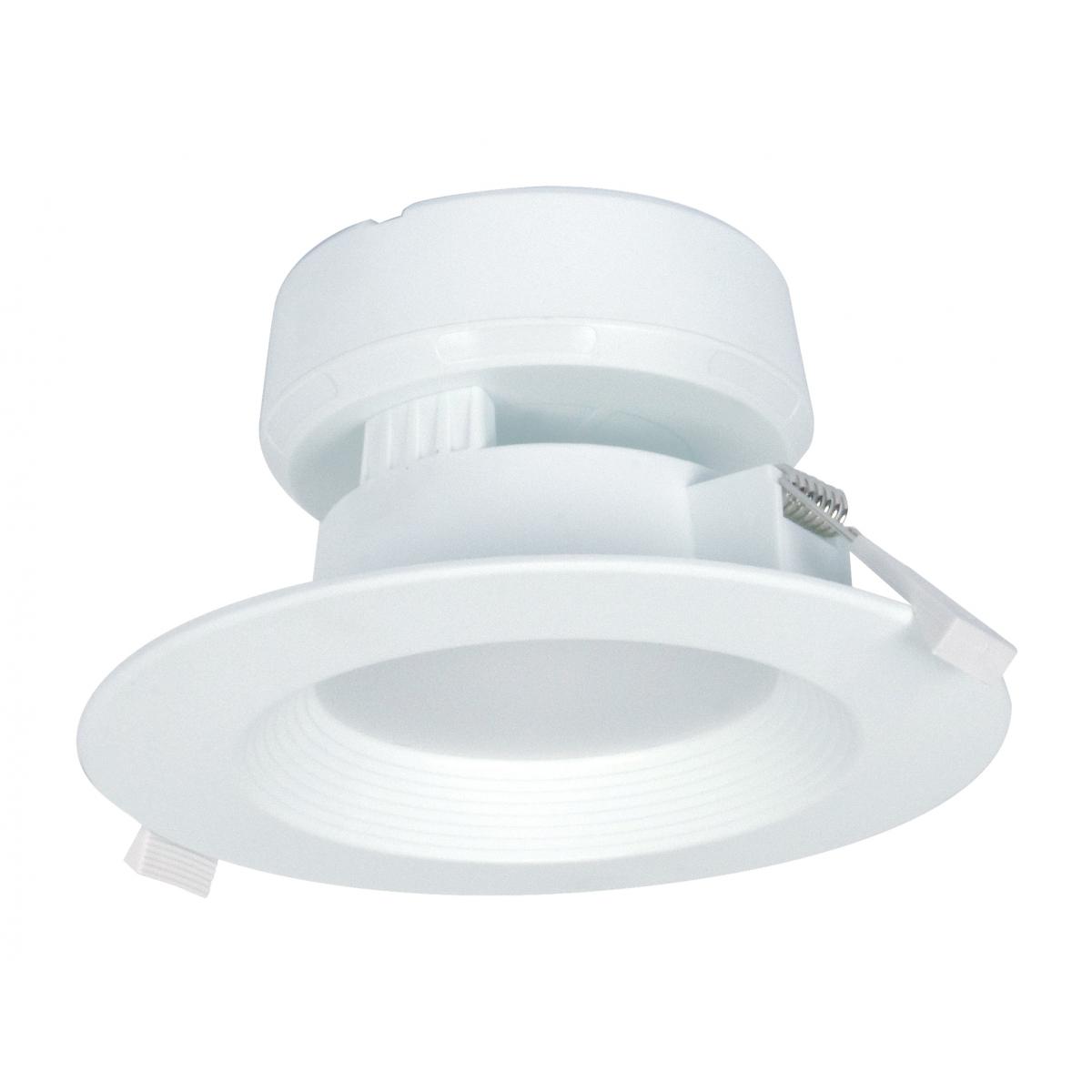

| Fixture Type | Direct Wire LED Downlight |
| Status | Obsolete |
| Style | Contemporary |
| Most Current Generation | S39013 |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.058A |
| Has Camera | False |
| IOT Enabled | False |
| Power Factor | 0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 45W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 40000 |
| Beam Angle (degree) | 100 |
| Color Temp | Cool White |
| CRI | 80+ |
| Dimming Type | Forward Phase or Reverse Phase or Phase Selectable |
| Operating Temp | -20C (-4F) to +45C (+113F) |

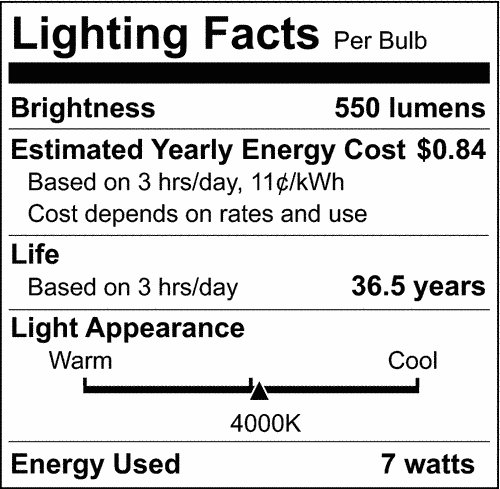

| Lumens | 550L |
| Volts | 120v |
| Watts | 7W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
|---|---|
| CA Prop 65 | Lead |
| CA Status | Non-Compliant |
| FCC Compliant | True |
| IC Rated | True |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Non-Compliant |
| UL Application | LED Recessed Luminaire/Type IC |
| DLC Approved | False |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923090134 |
|---|---|
| Case Cube | 1.4402 |
| Case Height | 7.76 |
| Case Length | 19.92 |
| Case Quantity | 12 |
| Case UPC | 10045923090131 |
| Case Weight | 10.47 |
| Case Width | 16.1 |
| EA Cube | 0.1084 |
| EA Height | 7.95 |
| EA Length | 6.3 |
| EA Quantity | 1 |
| EA Weight | 0.88 |
| EA Width | 3.74 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Height | 3.25 |
| Web Width | 5.75 |
