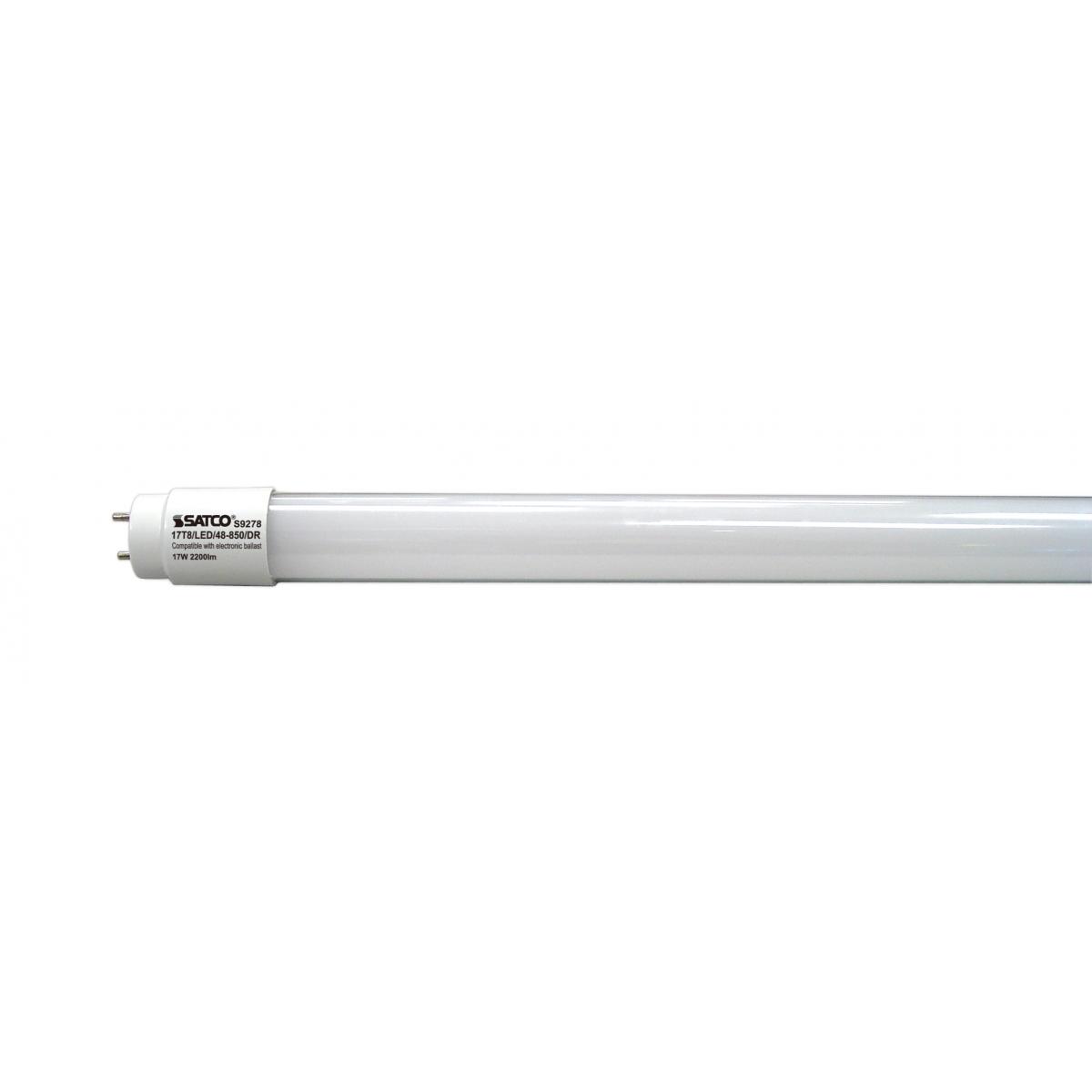

17T8/LED/48-850/DR - S9278
S9278

17T8/LED/48-850/DR

Discontinued - Suggested Replacement: S49978R1
  • Discontinued - 17 Watt T8 LED
  • Medium bi-pin base
  • 5000K
  • 50000 Average rated hours
  • 2200 Lumens
location_rating^damp^1
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
S9278 SpecificationsS9278 Instructions.pdfComplete line-LED T8 direct replacements
Description
Description
Discontinued - 17 Watt T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 2200 Lumens
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeLinear
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Has CameraNo
IOT EnabledNo
Lens FinishGloss White
LensedYes
Nominal Length48.0
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv25W-32W
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)230
Color TempNatural Light
CRI80+
Operating Temp-20C (-4F) to +45C (+113F)
Lumens2200L
Watts17W
Physical
Lamp BaseMedium Bi Pin
FinishGloss White
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL48.0
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923092787
Case Cube2.0557
Case Height8.66
Case Length49.6
Case Quantity10
Case UPC10045923092784
Case Weight4.4
Case Width8.27
EA Cube0.0289
EA Height1.02
EA Length48.0
EA Quantity1
EA Weight0.44
EA Width1.02
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeEgg Crate
Web Length48.0
Web Width1.0
