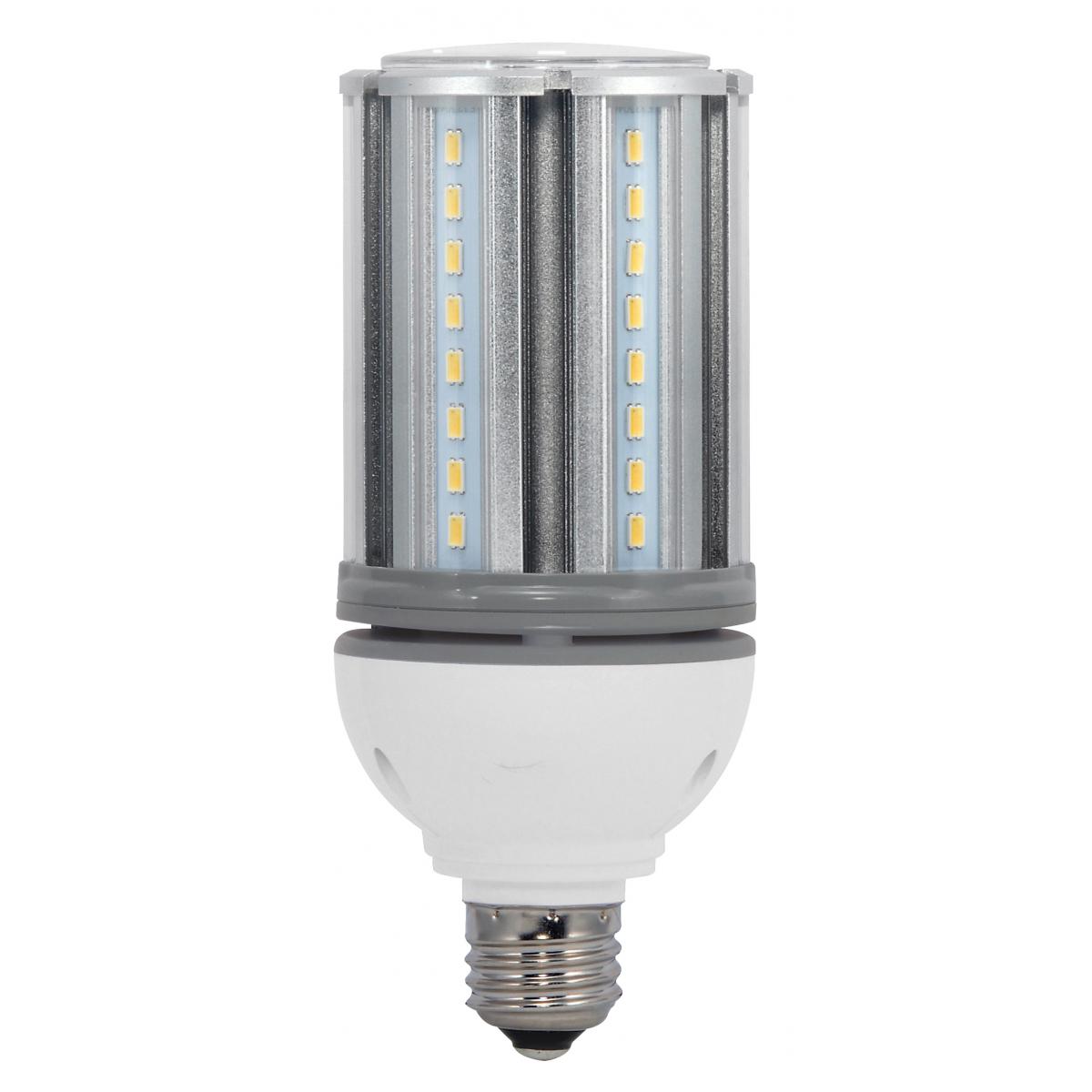

18W/LED/HID/5000K/100-277V E26 - S9390
18W/LED/HID/5000K/100-277V E26 - S9390
S9390

18W/LED/HID/5000K/100-277V E26

Discontinued - Suggested Replacement: S49390
  • 18 Watt - LED HID Replacement
  • 5000K
  • Medium base
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

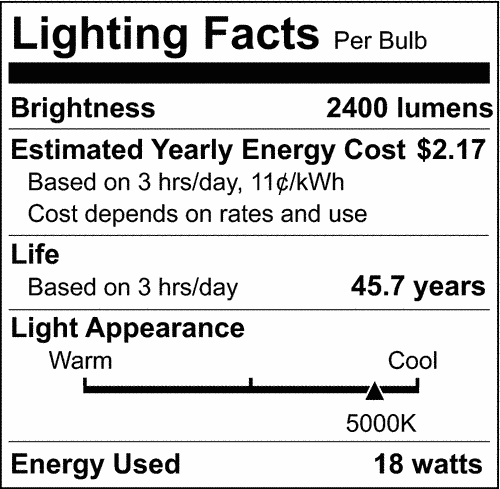

S9390 SpecificationsS9390 Photometrics.iesHi-Pro LED High lumen, omni-directional lamps for industrial and commercial applicationsS9390 Lighting Facts Label
Tools
Lighting Layout Analysis For S9390
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
18 Watt - LED HID Replacement; 5000K; Medium base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Lamp FilamentLED
Fixture TypeCorncob
StatusObsolete
Working VoltageAC 90-305V
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Amps0.180-0.065A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Minimum Compartment SizeLength: 8.5 in. Width: 6 in. Depth: 6 in.
Operating PositionUniversal
Power Factor>.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent120W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +65C (+149F)
HID Equivalent70W
Lumens2400L
Volts120V-277V
Watts18W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhiteGrey
ANSI BaseE26
Lamp TypeCorncob
MOD Lamps2.75
MOL6.88
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
US State BanCA
Packaging
UPC045923093906
Case Cube3.6455
Case Height18.5
Case Length22.64
Case Quantity48
Case UPC10045923093903
Case Weight57.32
Case Width15.04
EA Cube0.0515
EA Height7.7
EA Length3.4
EA Quantity1
EA Weight1.1
EA Width3.4
Inner Cube0.7733
Inner Height8.5
Inner Length14.37
Inner Quantity12
Inner UPC20045923093900
Inner Weight14.1
Inner Width10.94
Pack TypeBox
Web Length6.88
Web Width2.75
